Item# : EA637BG-12

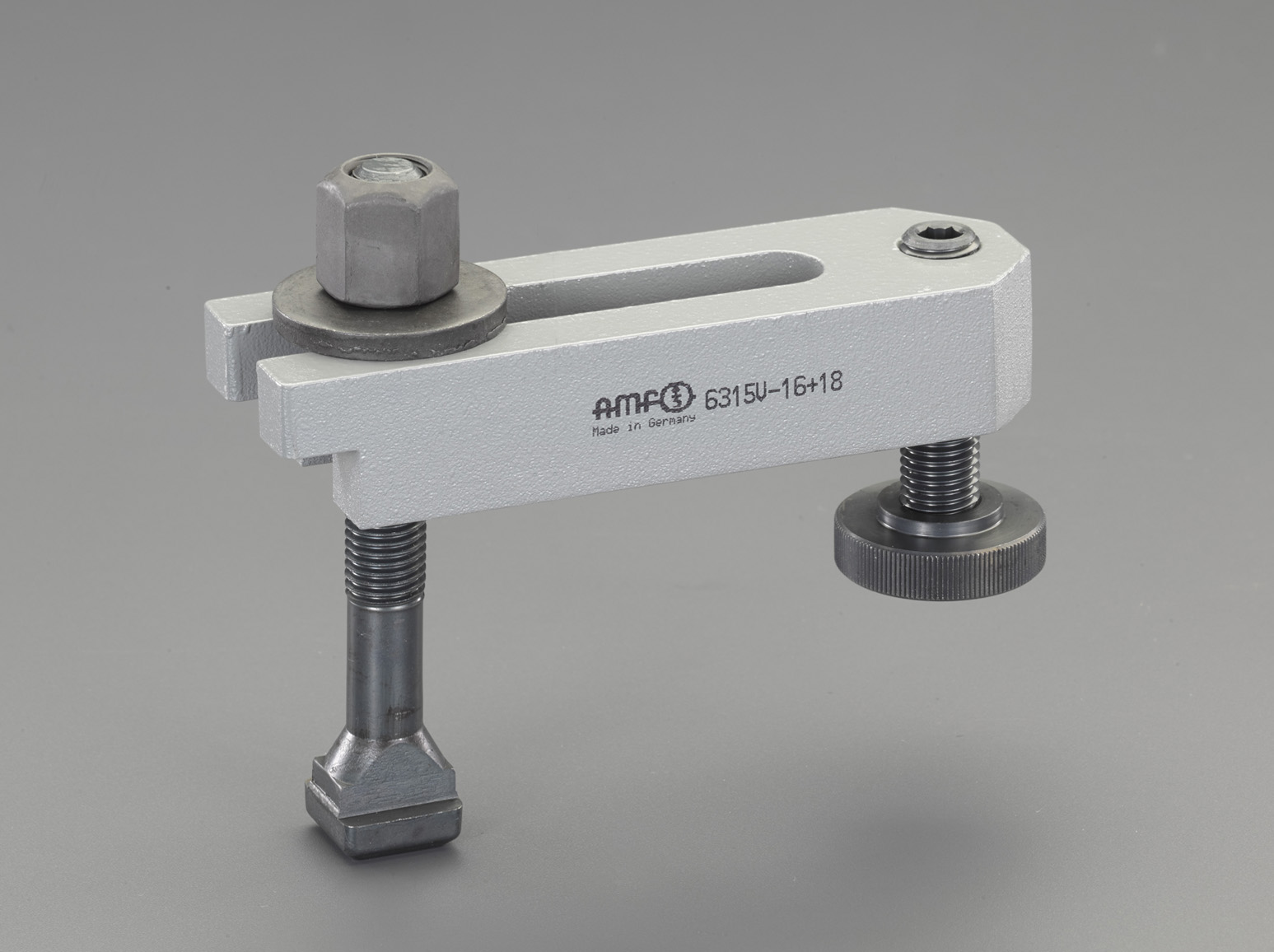

Description : Supporting Screw Adapted Clamp （Main Screw Adapted ）

Spec

Material Hardened Steel
Size H is changeable depend on groove depth and fixed nut location.
Please use clamp upside-down when thin application is clamped.
A 25mm
 B 40mm
C 125mm
 H 10 to 48mm
Clamp Screw M12×12×100
 Supporting Screw M12×49
Additional explanation
Catalog Price (JPY)

¥ 4,420 （Excluding tax）／¥ 4,862（Tax including）

Quantity of stock

Latest stock：2

（2025/10/29 21:39 Currently）

Update
Catalog Page Page 0666
Relational Items
EA637BG-10 Supporting Screw Adapted Clamp （Main Screw Adapted ）
EA637BG-12 Supporting Screw Adapted Clamp （Main Screw Adapted ）
EA637BG-14 Supporting Screw Adapted Clamp （Main Screw Adapted ）
EA637BG-16 Supporting Screw Adapted Clamp （Main Screw Adapted ）
EA637BG-18 Supporting Screw Adapted Clamp （Main Screw Adapted ）
EA637BG-20 Supporting Screw Adapted Clamp （Main Screw Adapted ）
EA637BG-22 Supporting Screw Adapted Clamp （Main Screw Adapted ）
