Item# : EA638NL-3

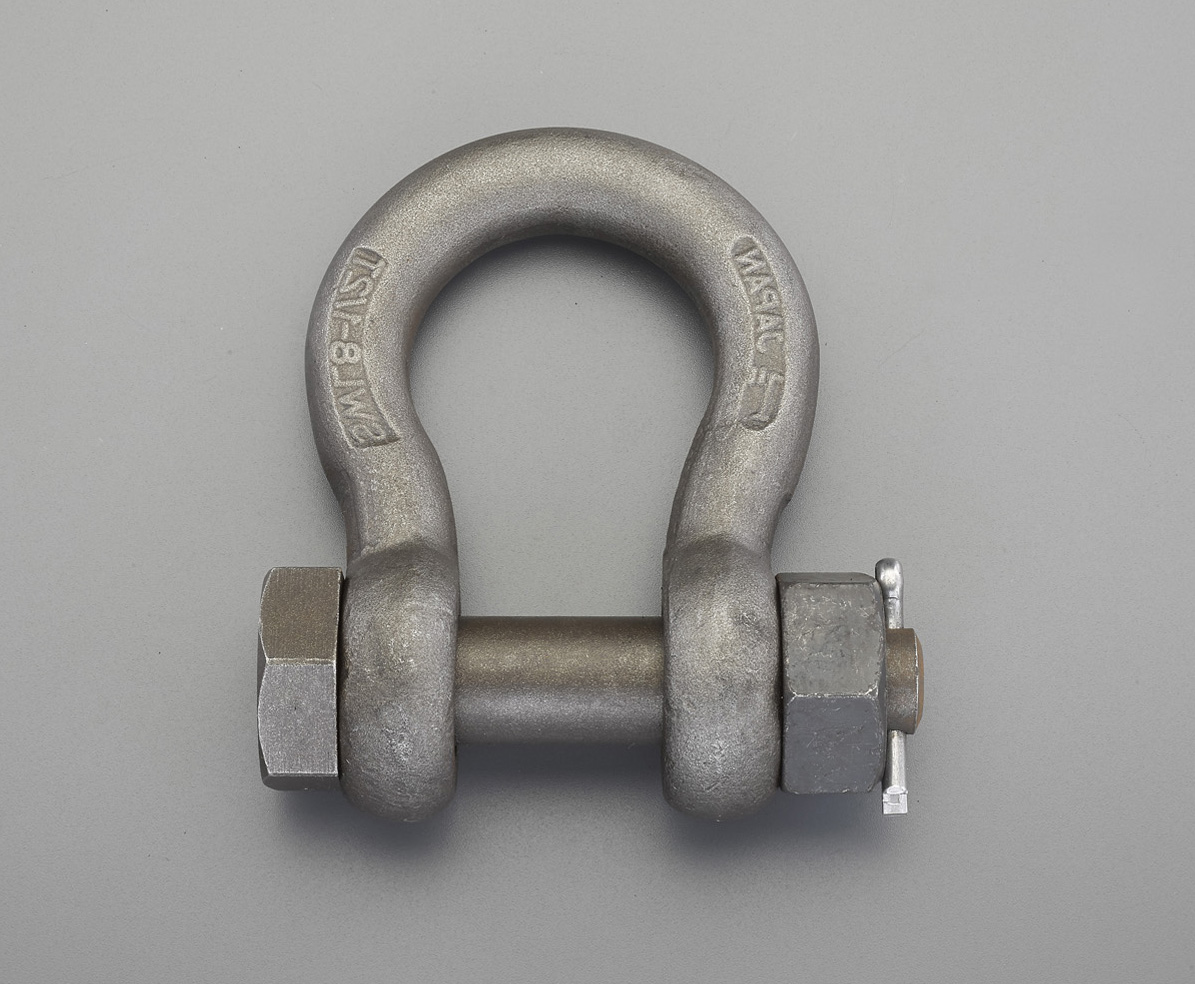

Description : Heavy-Duty Bow Shackle

Spec

Material S45C
 Usage Load (t) 4.75
size D1(mm) 19
 size D2(mm) 22
size B(mm) 32
 size L(mm) 72
Weight 1.22kg
Additional explanation
Catalog Price (JPY)

¥ 5,990 （Excluding tax）／¥ 6,589（Tax including）

Quantity of stock

Latest stock：1

（2025/11/06 18:39 Currently）

Update
Catalog Page Page 1807
