Item# : EA638NL-9

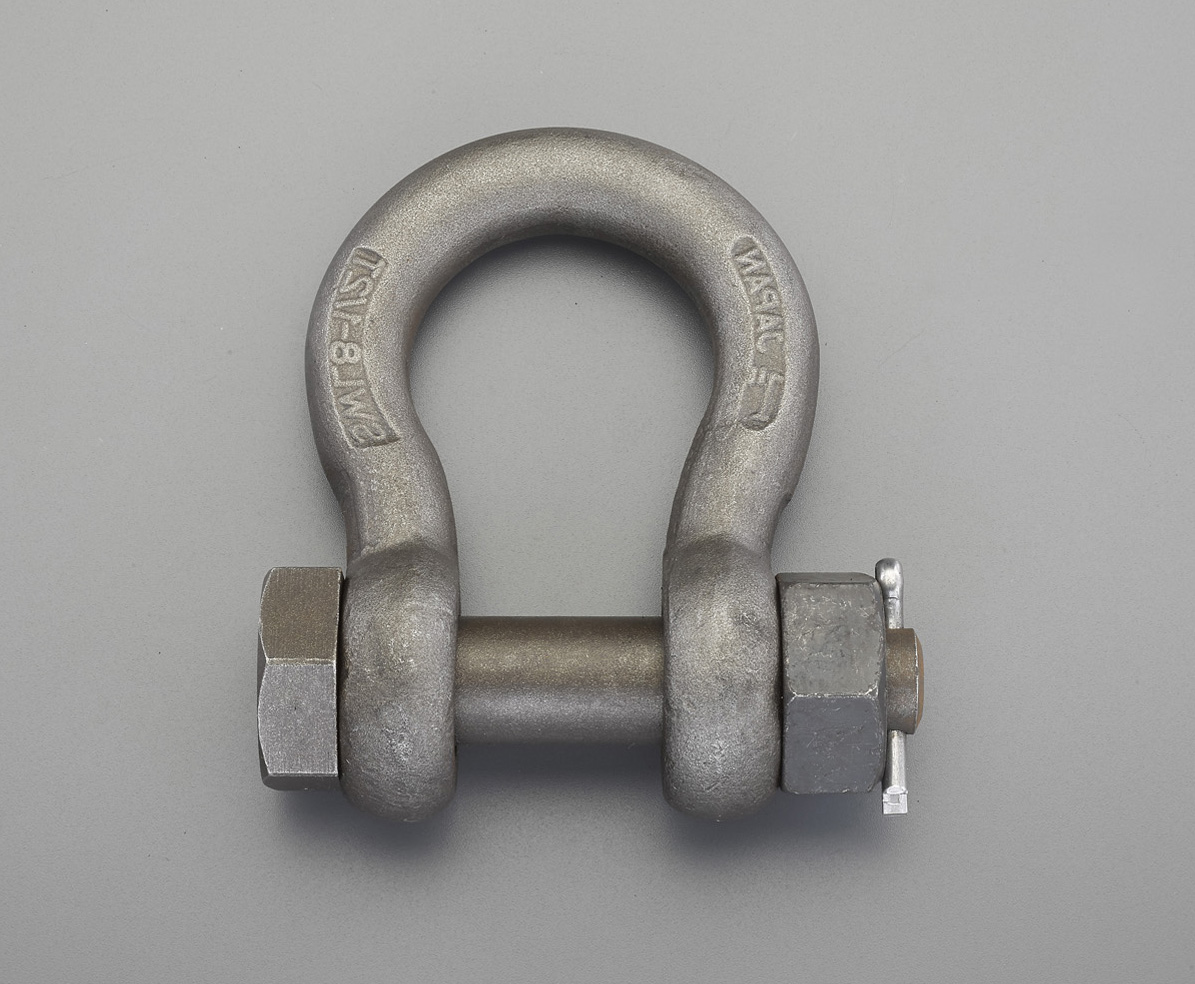

Description : Heavy-Duty Bow Shackle

Spec

Material S45C
 Usage Load (t) 17
size D1(mm) 38
 size D2(mm) 42
size B(mm) 61
 size L(mm) 146
Weight 8.52kg
Additional explanation
Catalog Price (JPY)

¥ 37,000 （Excluding tax）／¥ 40,700（Tax including）

Quantity of stock

Latest stock：1

（2025/05/02 07:26 Currently）

Update
Catalog Page Page 1807
