Item# : EA719DD-15

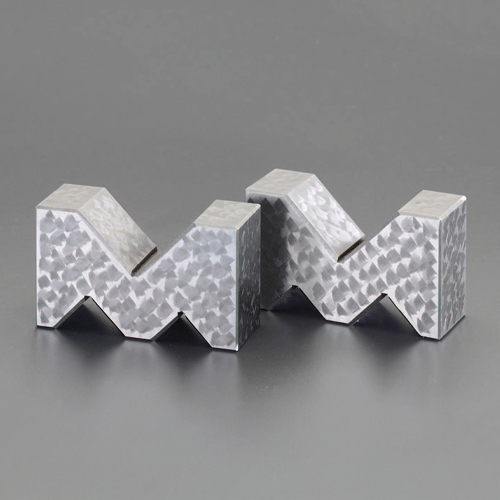

Description : Type-A V Block [A Class Finishing]

Spec

Parallelism-0.02mm
Perpendicularity-±0.02mm
V-groove perpendicularity-±0.03mm
Material-Cast iron
Dim. (mm) 150(W)×60(D)×90(H)
 Weight 10kg
Adaptation pipe size φ7 to 113mm
Additional explanation
Catalog Price (JPY)

¥ 73,400 （Excluding tax）／¥ 80,740（Tax including）

Quantity of stock

Latest stock：0

（2025/10/27 02:19 Currently）

Update
Catalog Page Page 0744
