Item# : EA940DM-105A
Description : Screw less Terminal Block (For Relaying)
Spec
| Number Of Poles | 5P |
Rating | DC300V-10A |
|---|---|---|---|
| Withstand Voltage | AC2000V(1 Minute) |
Insulation Resistance | DC500V, More than 100MΩ |
| Total Contact Resistance Value (Initial Value) | 30mΩOr Less |
Certified Standard | ULStandard (Field Wiring Correspondence ) C-ULStandard ・TUVStandard (IEC61984) |
| Main Insulating Material | Nylon 66 (UL94V-0) |
Main Insulating Material (Button ) | Denatured P.P.E. (UL94V-0) |
| Rating Compatible Cable | Solid ：Dia 1.2mm (AWG16) Stranded cable ：1.25mm2 (AWG16) |
Usable Electric Line Range | Solid wire：Dia 0.4mm～1.6mm (AWG26～14) Stranded cable ：0.2mm2～2.0mm2 (AWG24～14) For the wire diameter more than 0.18mm |
| Standard Stripping Length | 10mm |
Size | ：41.86mm B：27.66mm Height：50.5mm |
| RoHS Compliant | |||
| Additional explanation |
|
|---|
| Catalog Price (JPY) |
¥ 3,060 （Excluding tax）／¥ 3,366（Tax including） |
||||
|---|---|---|---|---|---|
| Quantity of stock |
Latest stock：19 （2025/05/02 13:08 Currently）
|
||||
| Catalog Page | Page 1233 | ||||

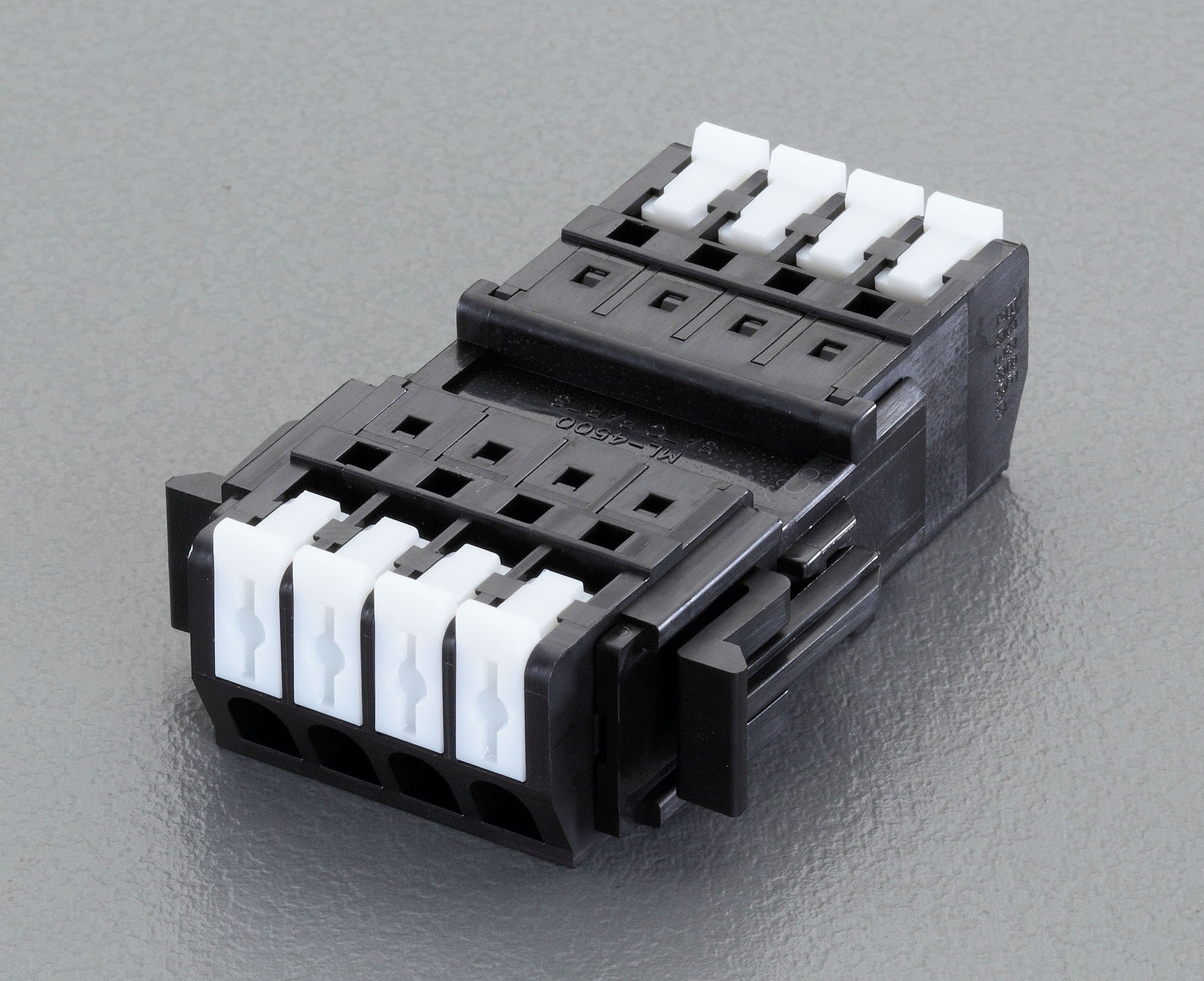

Web catalog image
Expanding
.jpg "Web catalog image")

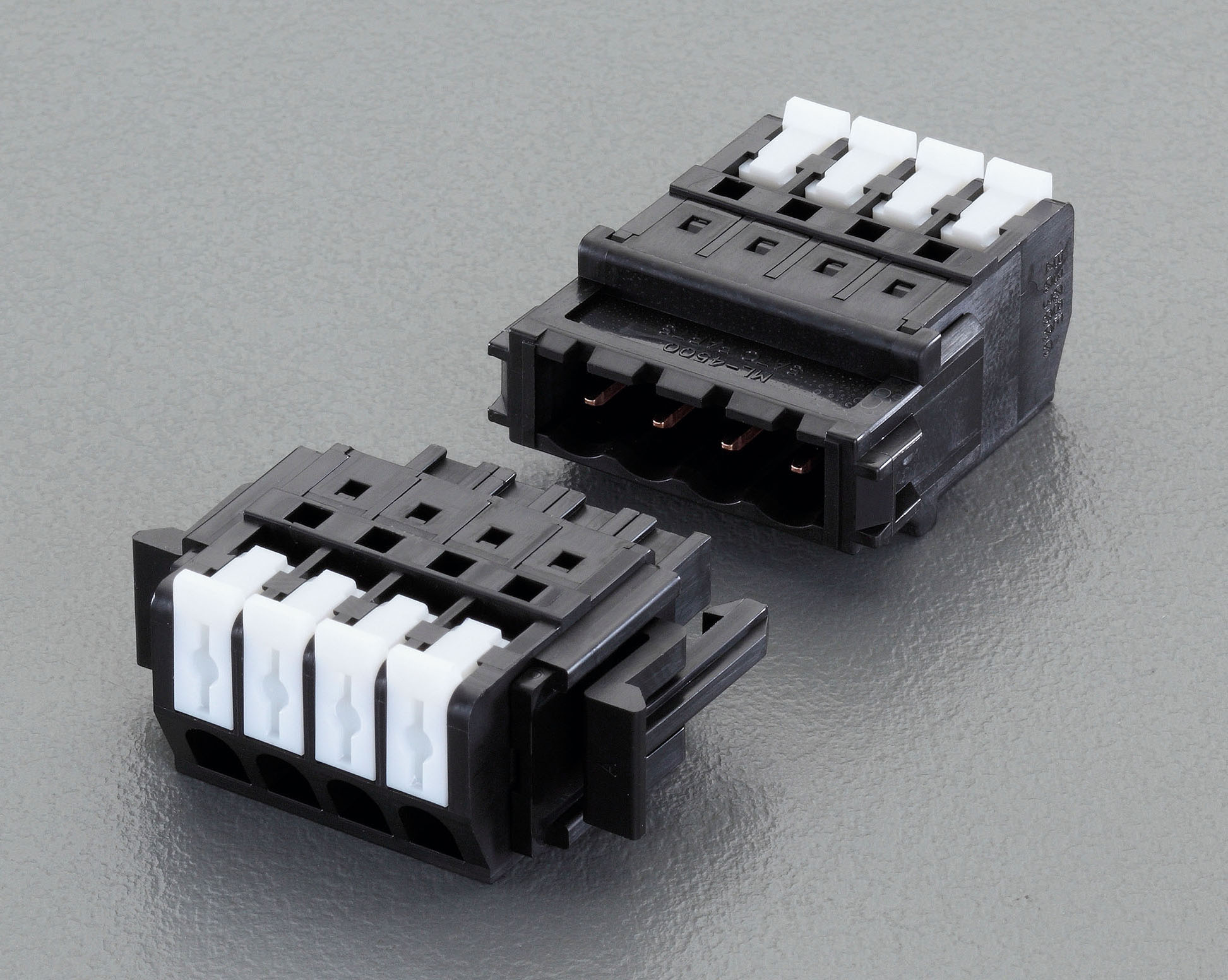

.jpg "Sub image")

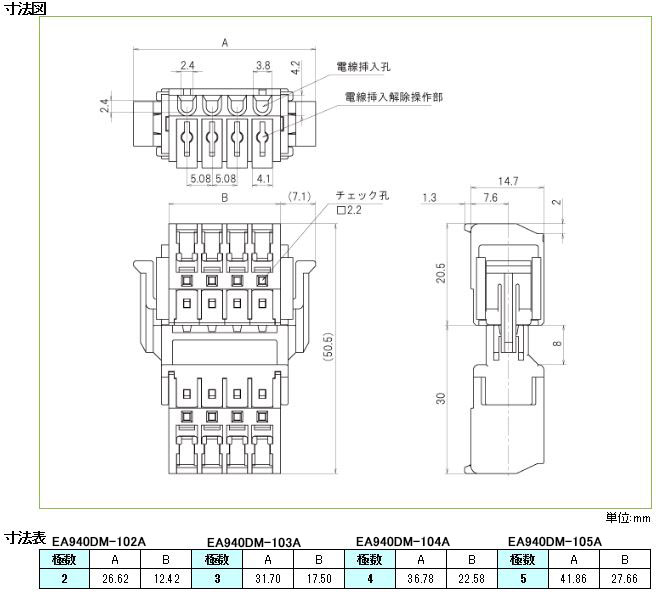

.jpg "ESCO dimentional drawing")
Product movie
Documents
| ESCO dimentional drawing |
|
|---|---|
| Catalog |
|
