Item# : EA948AE-24

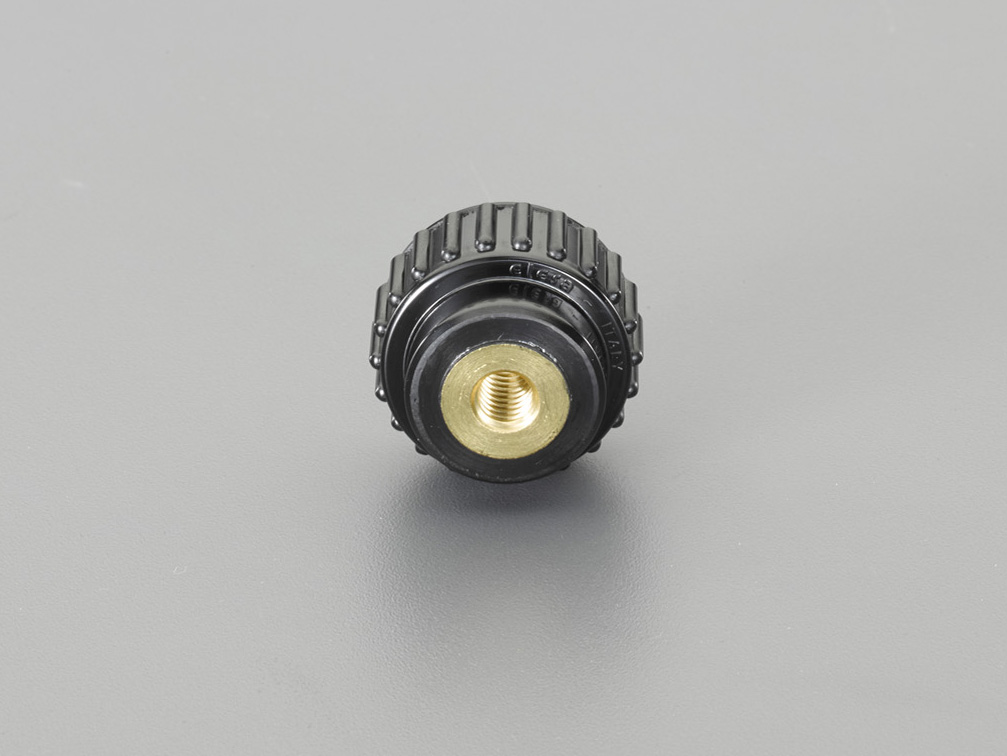

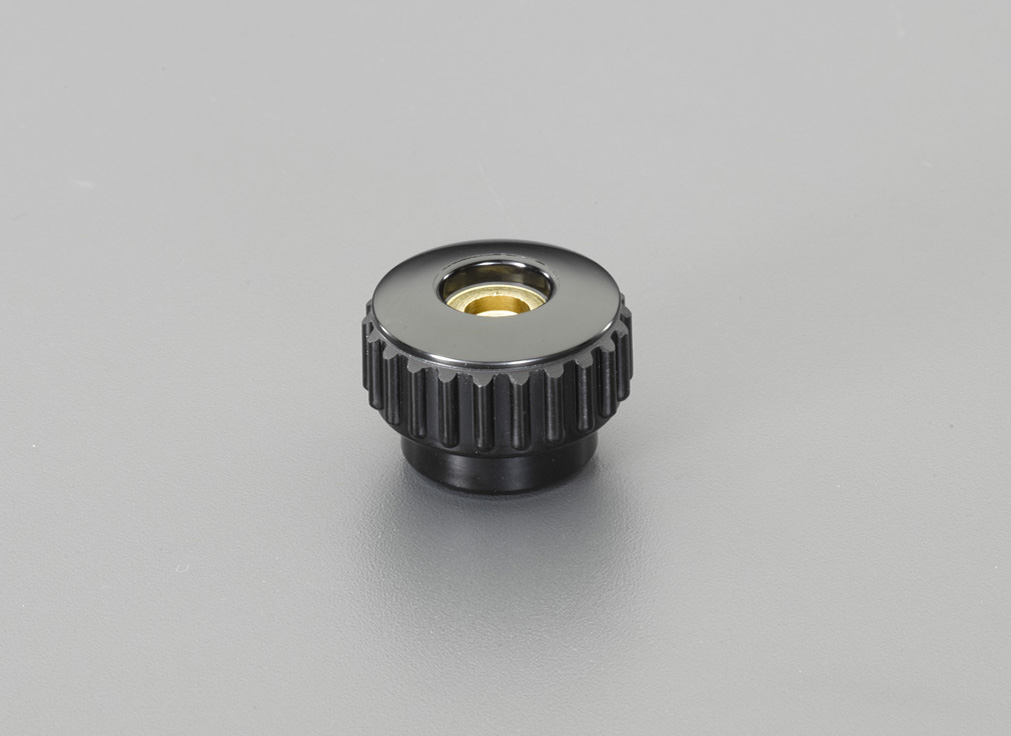

Description : Internal Thread Knurled Knob （Penetration ）

Spec

Penetration Hole Type
Material [Steel] Knob Male Thread ：Phenol resin 、
Screw ：Brass
Rohs-Compliant
size (mm) Screw ：M6×15
D：26
H：18
d：19
d1：10
Additional explanation
Catalog Price (JPY)

¥ 525 （Excluding tax）／¥ 578（Tax including）

Quantity of stock

Latest stock：0

（2025/05/10 11:04 Currently）

Update
Catalog Page Page 1253

Replacement Items

EA948AE-23
Relational Items
EA948AE-21 Internal Thread Knurled Knob （Penetration ）
EA948AE-22 Internal Thread Knurled Knob （Penetration ）
EA948AE-23 Internal Thread Knurled Knob （Penetration ）
EA948AE-24 Internal Thread Knurled Knob （Penetration ）
EA948AE-25 Internal Thread Knurled Knob （Penetration ）
EA948AE-26 Internal Thread Knurled Knob （Penetration ）
EA948AE-27 Internal Thread Knurled Knob （Penetration ）
EA948AE-28 Internal Thread Knurled Knob （Penetration ）
Web catalog image
Expanding
  • Prev
  • Next

Documents

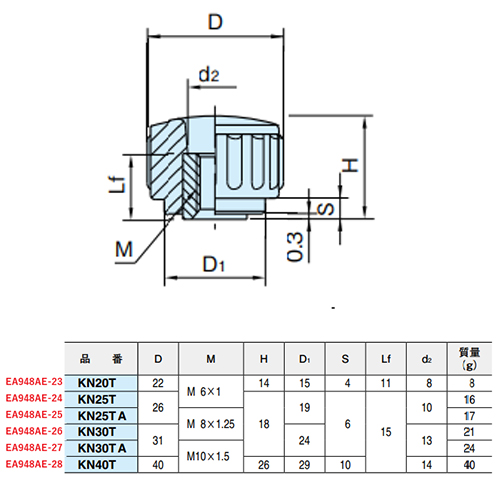

ESCO dimentional drawing
