Item# : EA948AE-26

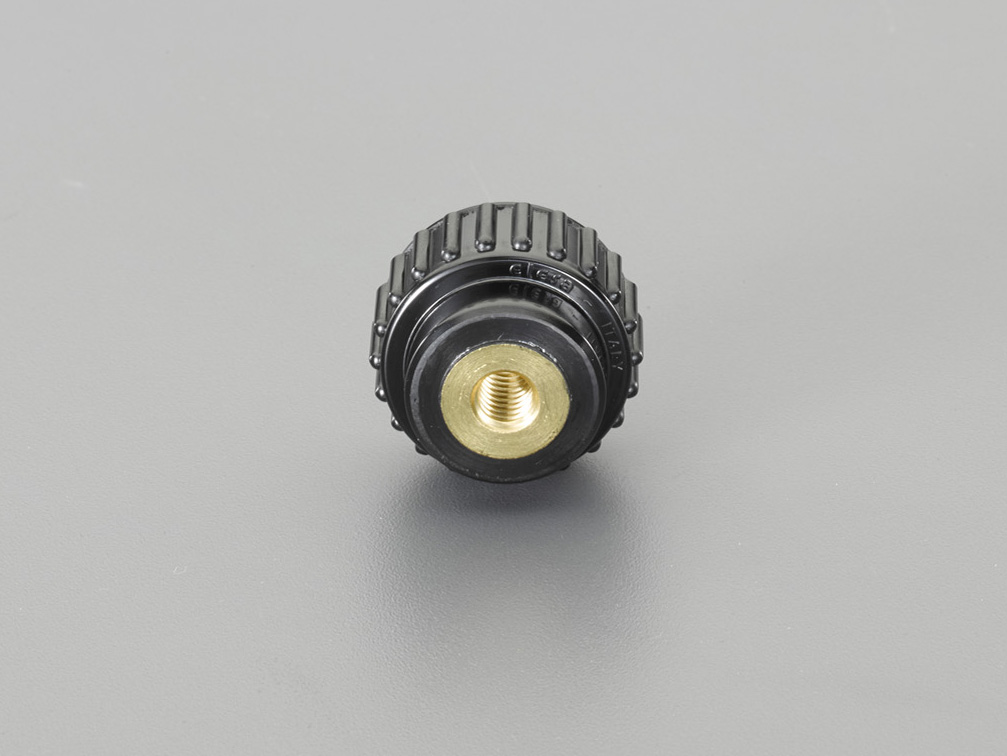

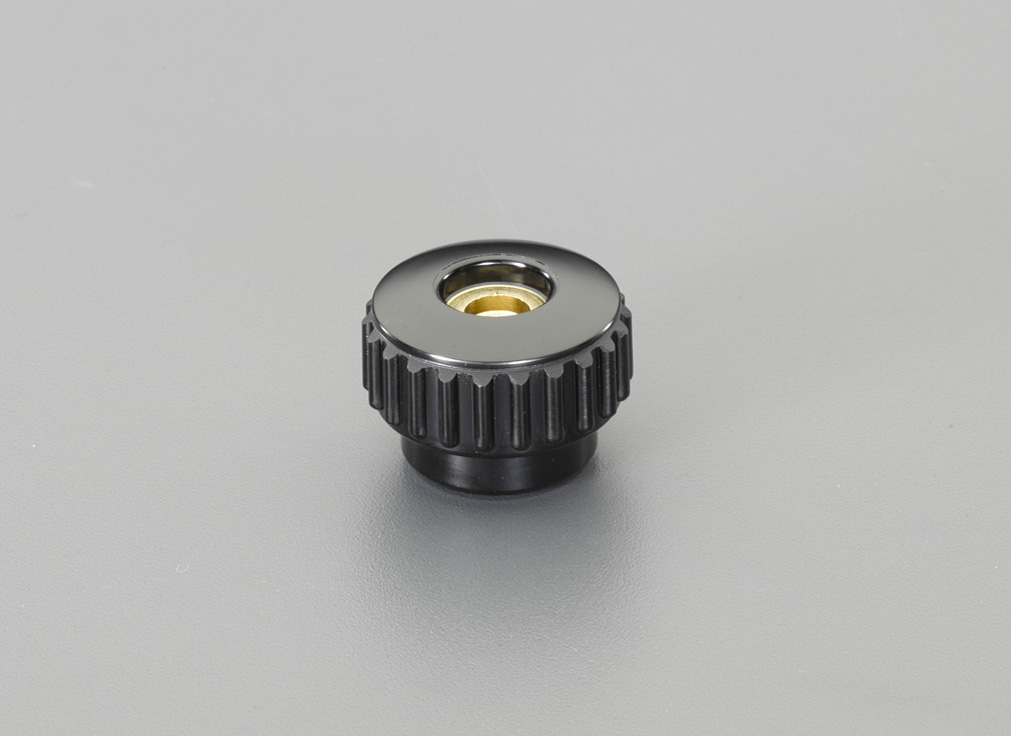

Description : Internal Thread Knurled Knob （Penetration ）

Spec

Penetration Hole Type
Material [Steel] Knob Male Thread ：Phenol resin 、
Screw ：Brass
Rohs-Compliant
size (mm) Screw ：M8×15
D：31
H：18
d：24
d1：13
Additional explanation
Catalog Price (JPY)

¥ 550 （Excluding tax）／¥ 605（Tax including）

Quantity of stock

Latest stock：3

（2025/12/01 04:21 Currently）

Update
Catalog Page Page 1253
