Item# : EA948AJ-1

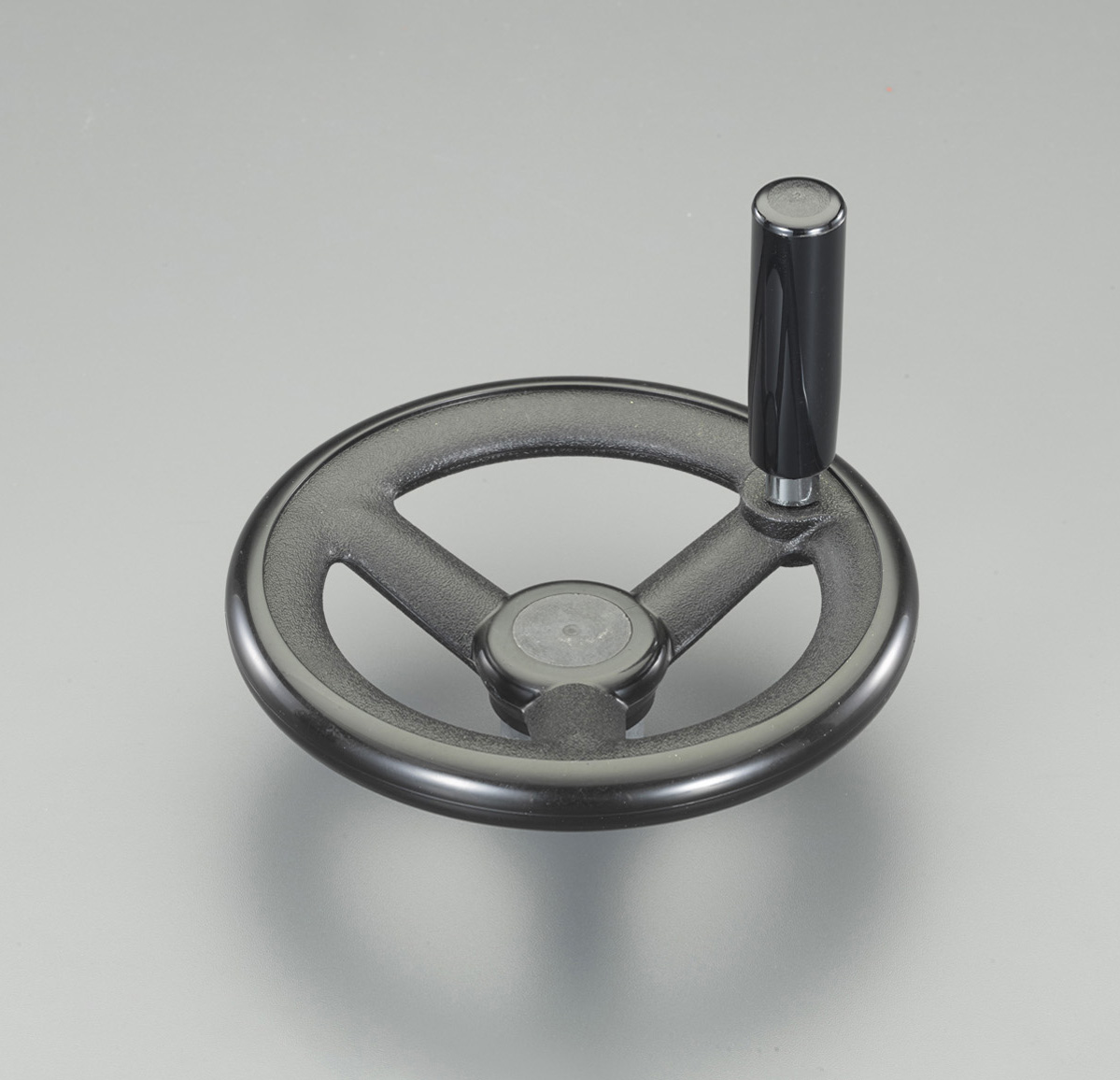

Description : ［Round Limb Type］Handle

Spec

Material Handle Car ：Polypropylene 、
Insertion ：FCMaterial 、
Grip ：Polyamide

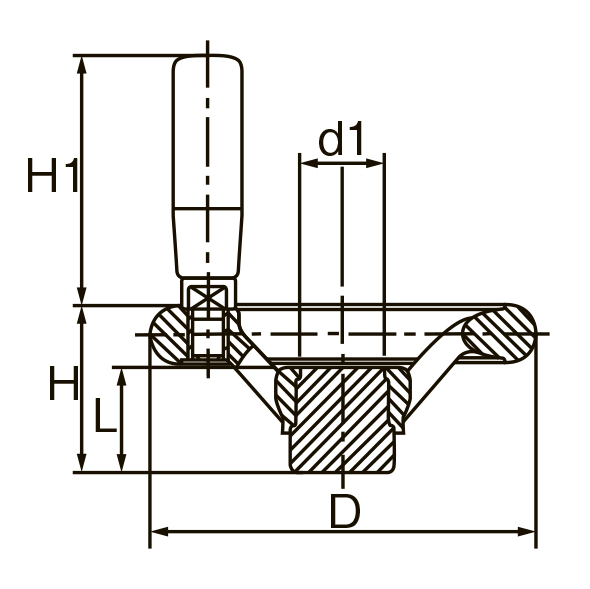

It is a shaft hole unprocessed part of the handle mounting part (figure: D side).
Rohs-Compliant
size (mm) D：100、H：43、
H1：65、d1：22、
L：27
Additional explanation
Catalog Price (JPY)

¥ 1,610 （Excluding tax）／¥ 1,771（Tax including）

Quantity of stock

Latest stock：8

（2025/05/10 10:33 Currently）

Update
Catalog Page Page 1256
