Item# : EA948AJ-2

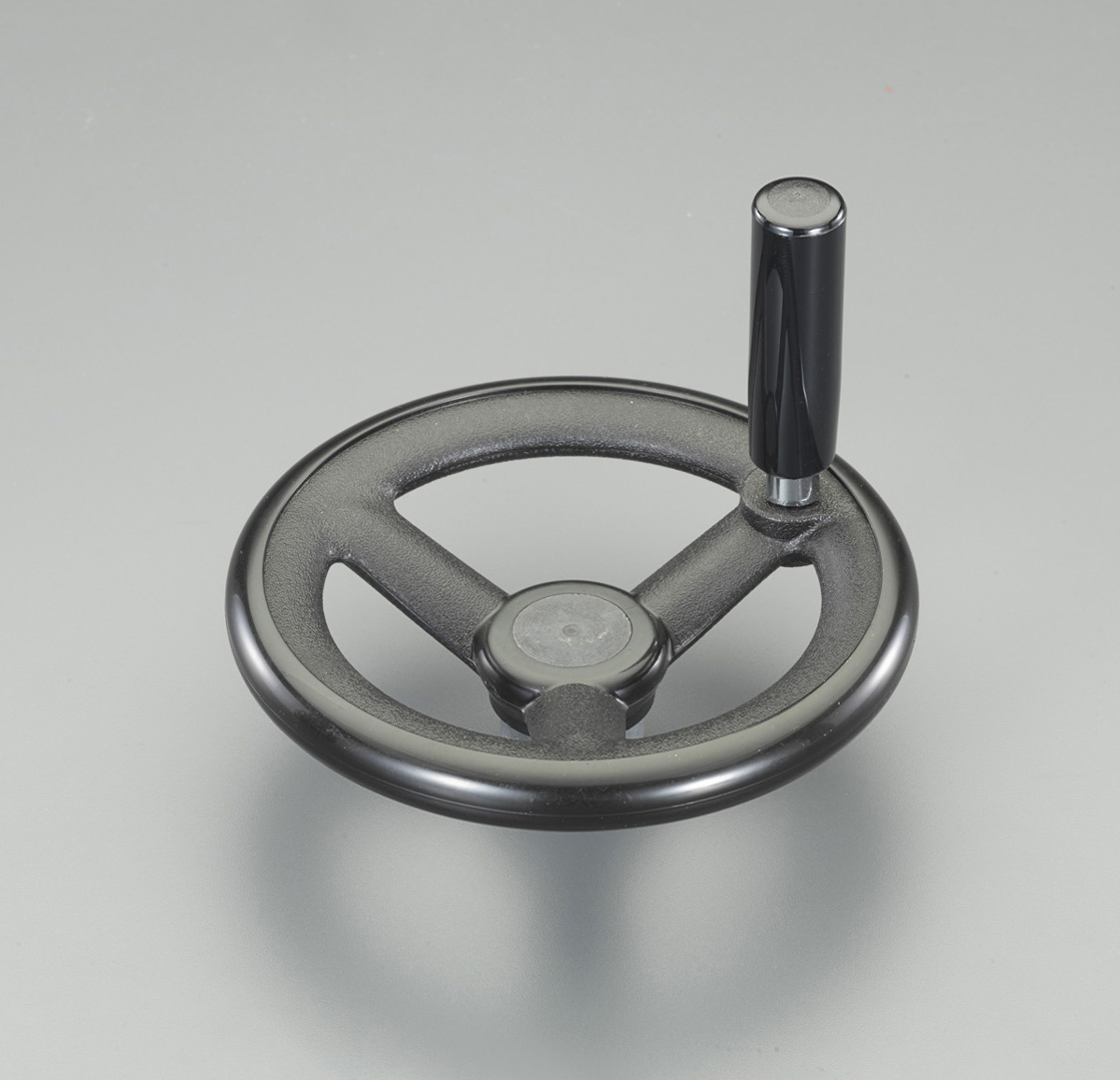

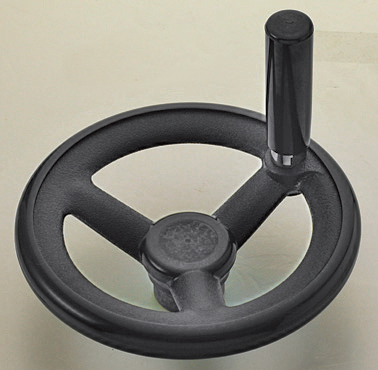

Description : ［Round Limb Type］Handle

Spec

Material Handle Car ：Polypropylene 、
Insertion ：FCMaterial 、
Grip ：Polyamide
It is a shaft hole unprocessed part of the handle mounting part (figure: D side).
Rohs-Compliant
size (mm) D：125、H：47、
H1：65、d1：24、
L：29
Additional explanation
Catalog Price (JPY)

¥ 1,900 （Excluding tax）／¥ 2,090（Tax including）

Quantity of stock

Latest stock：5

（2025/05/10 10:33 Currently）

Update
Catalog Page Page 1256
Relational Items
EA948AJ-1 ［Round Limb Type］Handle
EA948AJ-2 ［Round Limb Type］Handle
EA948AJ-3 ［Round Limb Type］Handle
EA948AJ-4 ［Round Limb Type］Handle
EA948AJ-5 ［Round Limb Type］Handle
EA948AJ-6 ［Round Limb Type］Handle
EA948AJ-7 ［Round Limb Type］Handle
Web catalog image
Expanding
  • Prev
  • Next

Documents

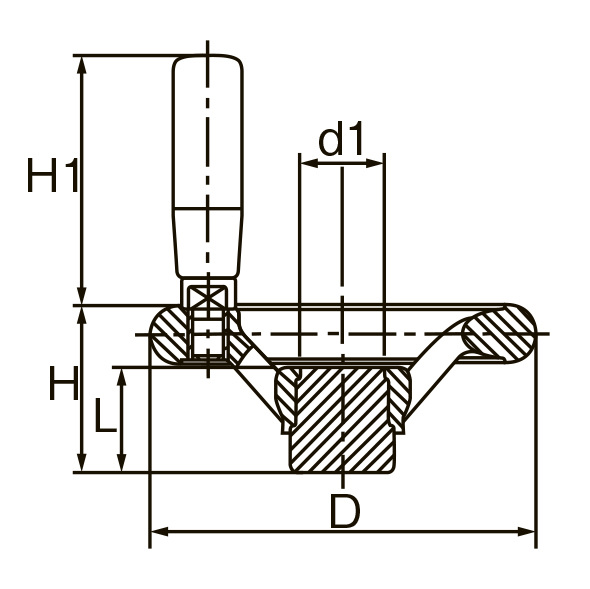

ESCO dimentional drawing
