Item# : EA948BX-203

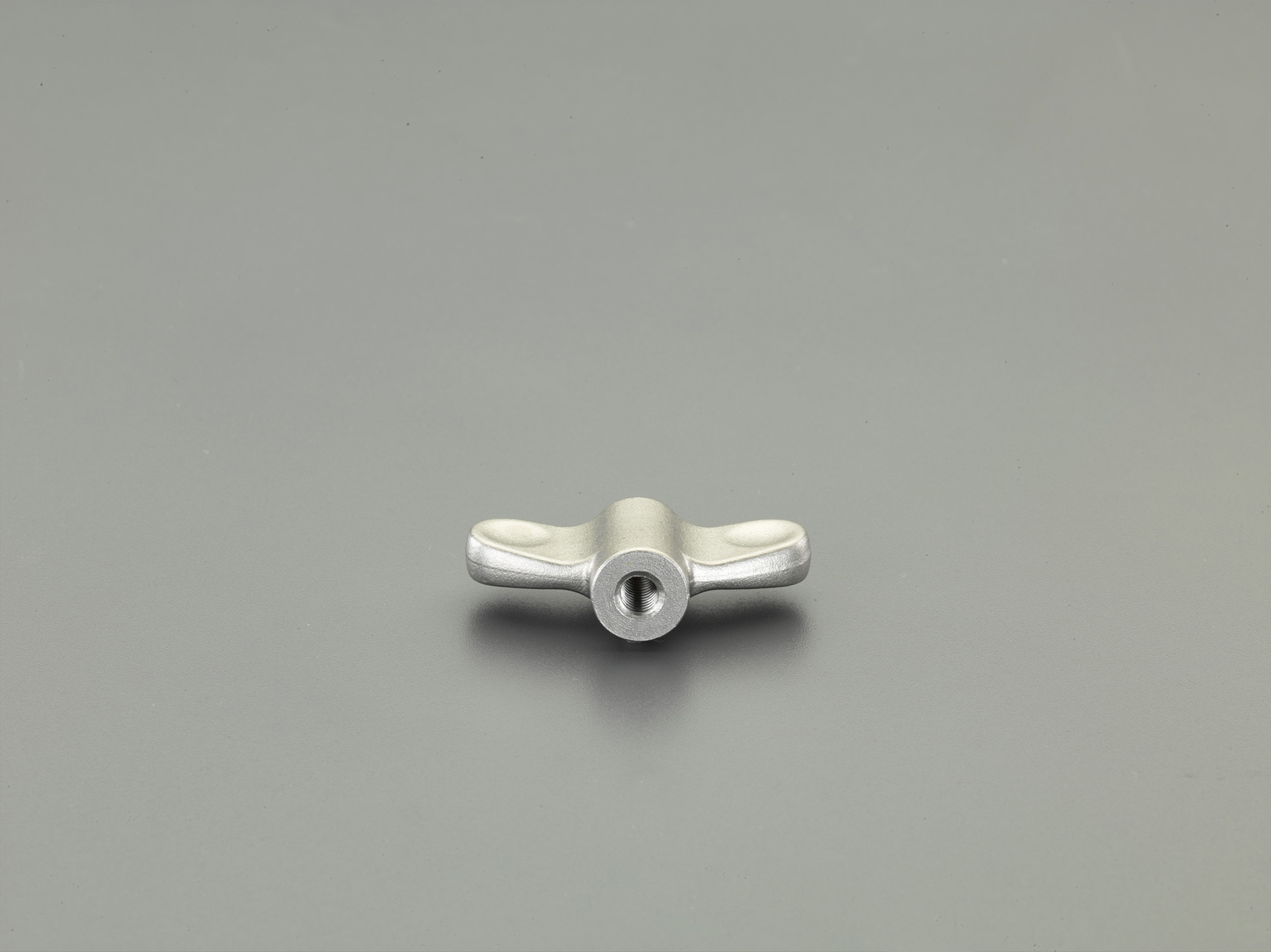

Description : [Stainless Steel] Internal Threaded Wing Knob

This product is no longer available. Please refer to replacement item below.

Spec

Material Stainless (SUS304)
Rohs-Compliant
size (mm) Screw ：M6×15
D：48
H：24
d：13.5
Additional explanation
Catalog Price (JPY)

¥ 2,620 （Excluding tax）／¥ 2,882（Tax including）

Quantity of stock

Latest stock：0

（2025/05/10 08:41 Currently）

Update
Catalog Page Page 1255
Relational Items
EA948BX-201 [Stainless Steel] Internal Threaded Wing Knob
EA948BX-202 [Stainless Steel] Internal Threaded Wing Knob
EA948BX-203 [Stainless Steel] Internal Threaded Wing Knob
EA948BX-204 [Stainless Steel] Internal Threaded Wing Knob
EA948BX-205 [Stainless Steel] Internal Threaded Wing Knob
EA948BX-206 [Stainless Steel] Internal Threaded Wing Knob

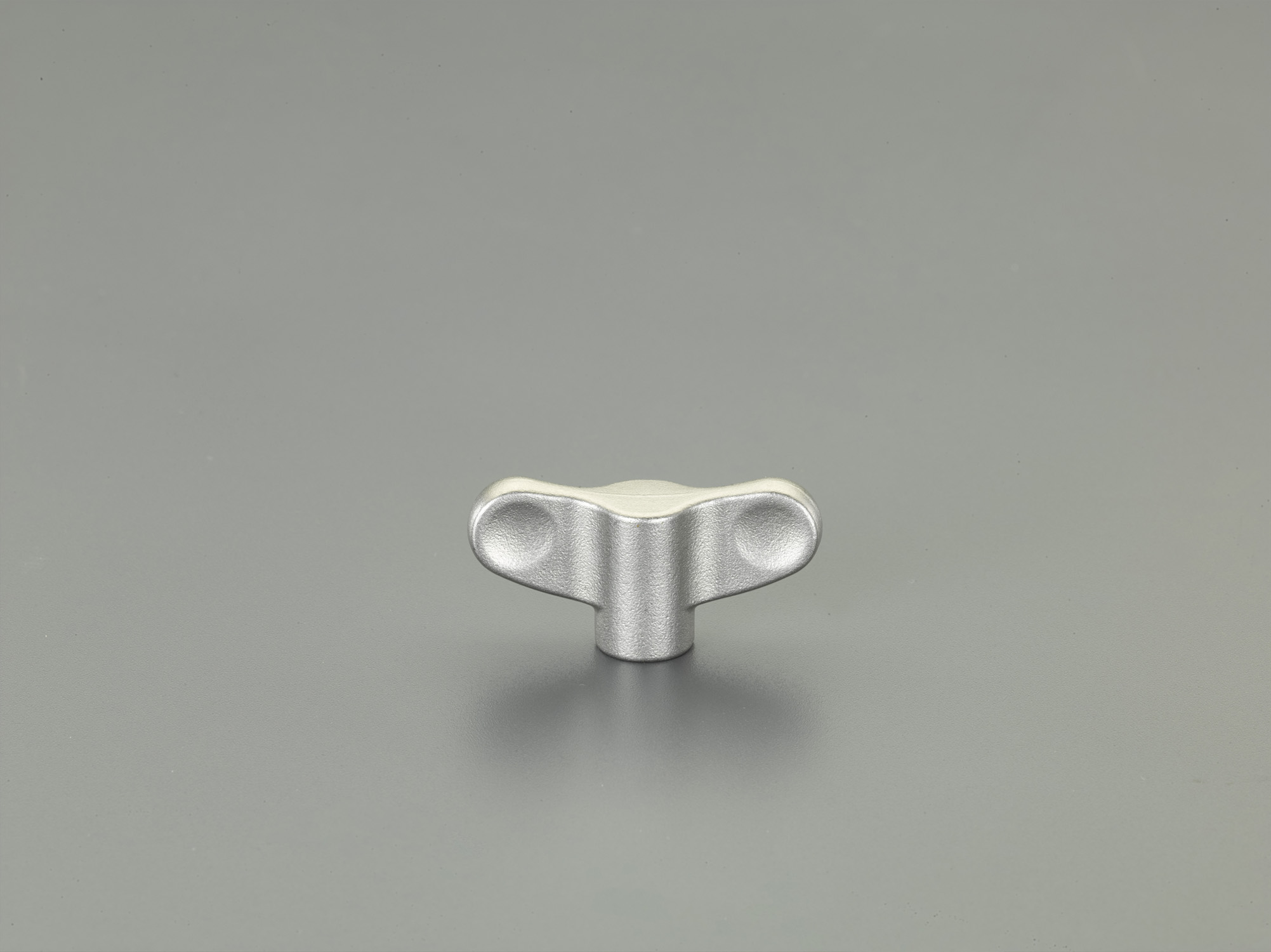

Web catalog image
