Item# : EA948CB-229

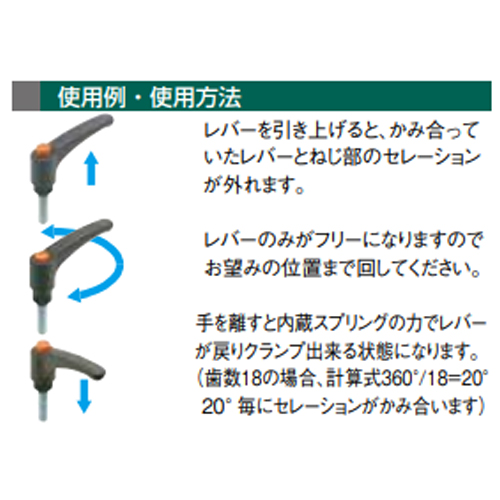

Description : External Threaded Clamp Lever （With Operation Button）

Spec

Material Lever ・Button ：Polyamide (Glass Fiber Reinforcement )、
Screw ：Zinc Plating (SUM22L)
Rohs-Compliant
size (mm) Screw ：M8×50
R：63
H：43
d：15
Additional explanation
Catalog Price (JPY)

¥ 860 （Excluding tax）／¥ 946（Tax including）

Quantity of stock

Latest stock：4

（2025/05/03 05:35 Currently）

Update
Catalog Page Page 1258
