Item# : EA948CB-238

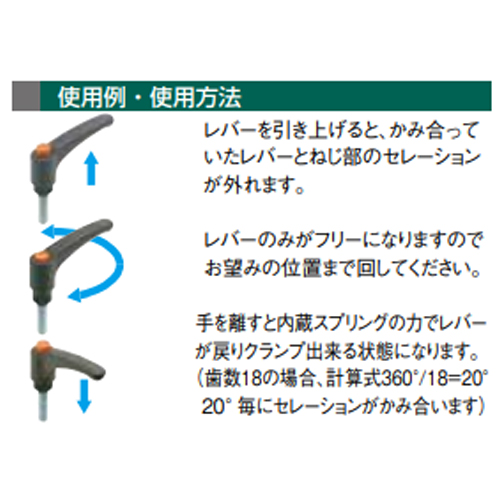

Description : External Threaded Clamp Lever （With Operation Button）

Spec

Material Lever ・Button ：Polyamide (Glass Fiber Reinforcement )、
Screw ：Zinc Plating (SUM22L)
Rohs-Compliant
size (mm) Screw ：M12×30
R：78
H：54
d：19
Additional explanation
Catalog Price (JPY)

¥ 755 （Excluding tax）／¥ 831（Tax including）

Quantity of stock

Latest stock：3

（2026/01/01 15:27 Currently）

Update
Catalog Page Page 1212
