Item# : EA948CH-1

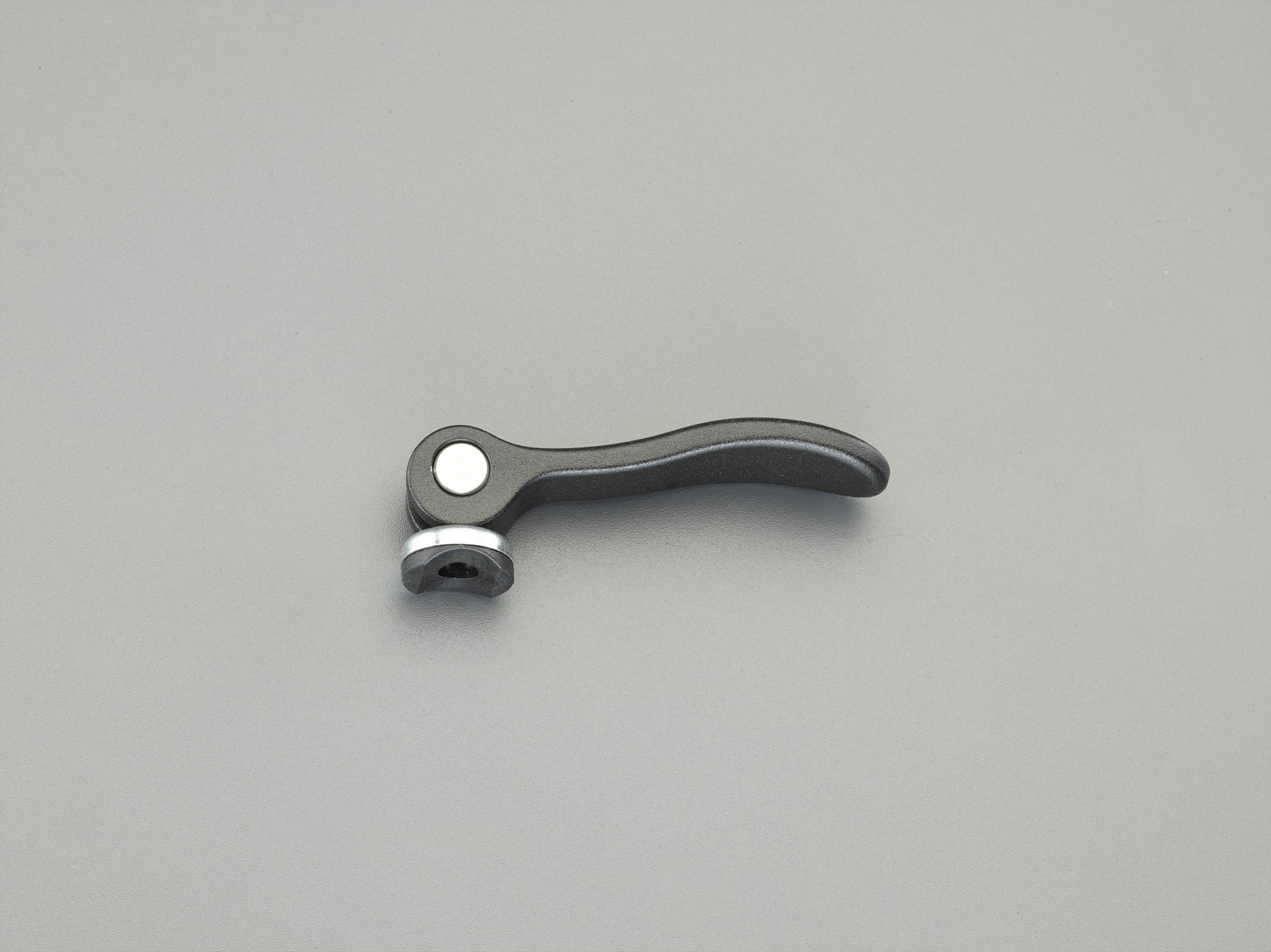

Description : Internal Thread Cam Lever

Spec

Material Lever ：Aluminum Die-cast (Black Powder Painting )、
Screw ･Washer ：SUM22L(Zinc Trivalent Chromate )、
The thrust Washer ：Polyamide (Glass Fiber Reinforcement )
Rohs-Compliant
Screw M3
 size (mm) R：36.2
H：13
D：12
Additional explanation
Catalog Price (JPY)

¥ 1,630 （Excluding tax）／¥ 1,793（Tax including）

Quantity of stock

Latest stock：2

（2024/05/07 05:39 Currently）

Update
Catalog Page Page 1275
Relational Items
EA948CH-1 Internal Thread Cam Lever
EA948CH-2 Internal Thread Cam Lever
EA948CH-3 Internal Thread Cam Lever
EA948CH-4 Internal Thread Cam Lever
EA948CH-5 Internal Thread Cam Lever
EA948CH-6 Internal Thread Cam Lever
EA948CH-7 Internal Thread Cam Lever
