Item# : EA948CH-7

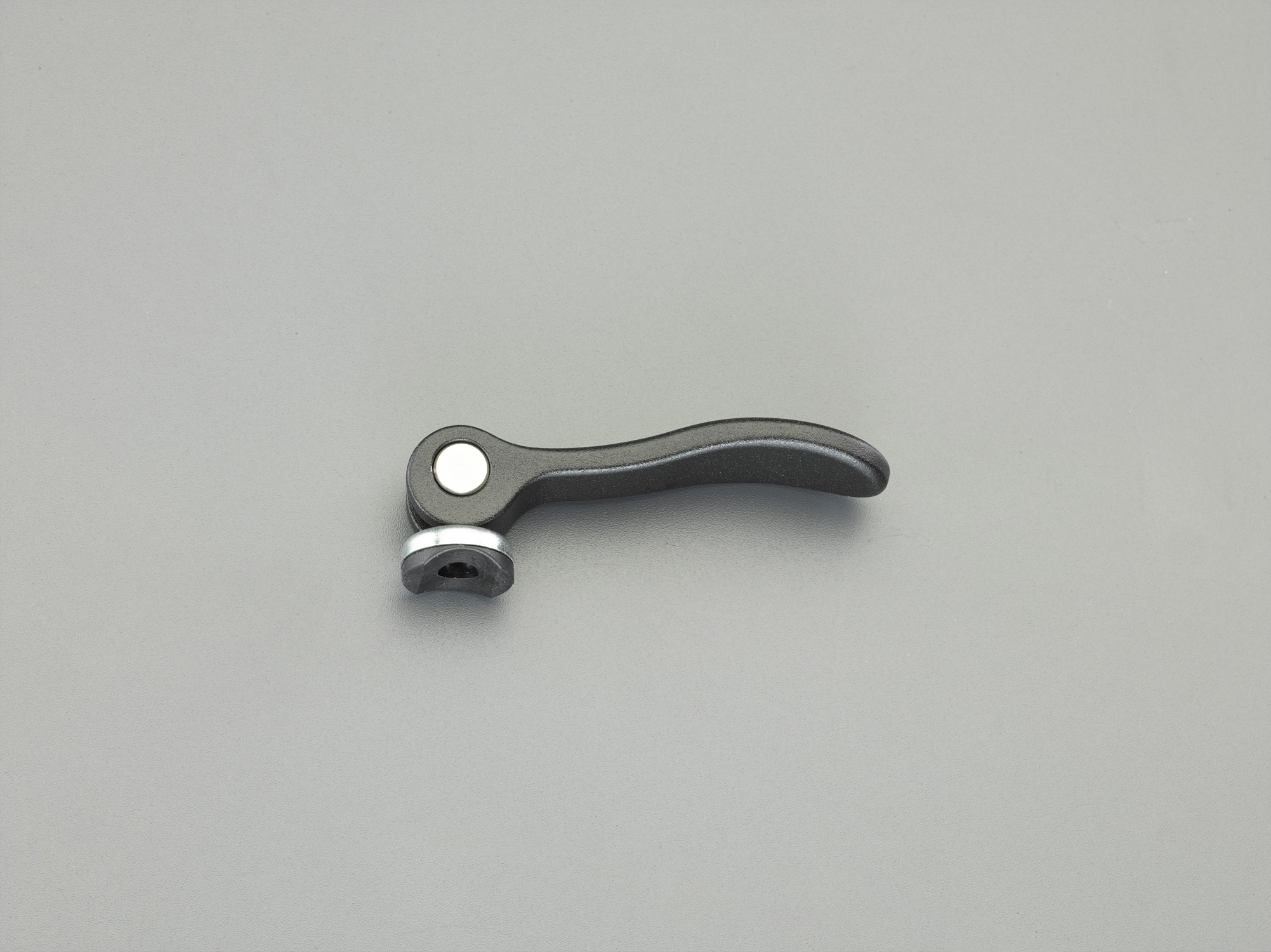

Description : Internal Thread Cam Lever

Spec

Material Lever ：Aluminum Die-cast (Black Powder Painting )、
Screw ･Washer ：SUM22L(Zinc Trivalent Chromate )、
The thrust Washer ：Polyamide (Glass Fiber Reinforcement )
Rohs-Compliant
Screw M8
 size (mm) R：96
H：28.5
D：27
Additional explanation
Catalog Price (JPY)

¥ 2,040 （Excluding tax）／¥ 2,244（Tax including）

Quantity of stock

Latest stock：4

（2025/05/11 16:12 Currently）

Update
Catalog Page Page 1259
Relational Items
EA948CH-1 Internal Thread Cam Lever
EA948CH-2 Internal Thread Cam Lever
EA948CH-3 Internal Thread Cam Lever
EA948CH-4 Internal Thread Cam Lever
EA948CH-5 Internal Thread Cam Lever
EA948CH-6 Internal Thread Cam Lever
EA948CH-7 Internal Thread Cam Lever
