Item# : EA948CH-212

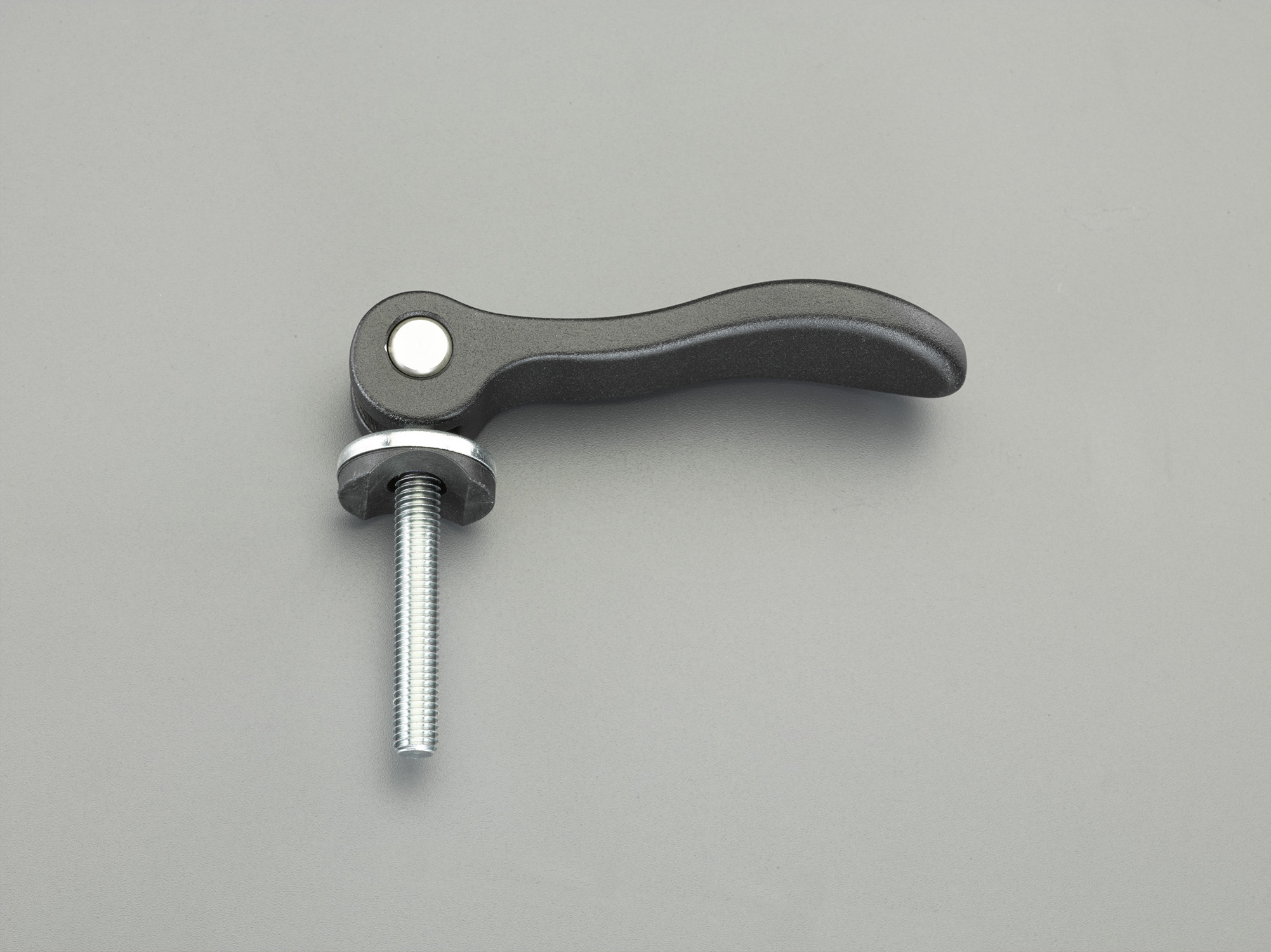

Description : External Thread Cam Lever （Fixed Type ）

Spec

Material Lever ：Aluminum Die-cast (Black Powder Painting )
Screw ･Washer ：Zinc Trivalent Chromate (SUM22L)
The thrust Washer ：Polyamide (Glass Fiber Reinforcement )
Rohs-Compliant

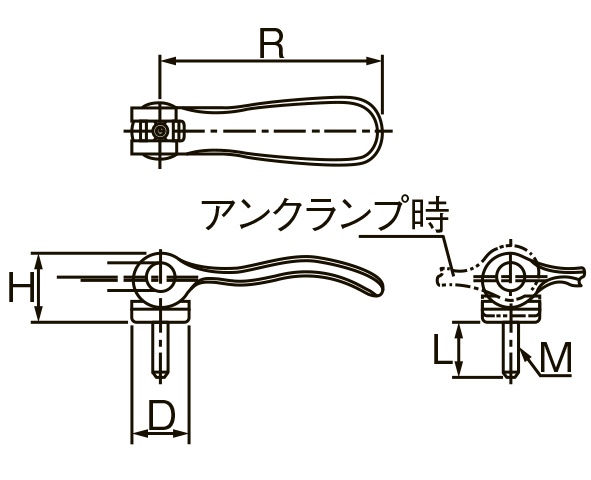

size (mm) Screw ：M5×40
R：52.3
H：17
D：15.5
Additional explanation
Catalog Price (JPY)

¥ 1,760 （Excluding tax）／¥ 1,936（Tax including）

Quantity of stock

Latest stock：2

（2025/11/05 05:37 Currently）

Update
Catalog Page Page 1259
