Item# : EA948DB-121

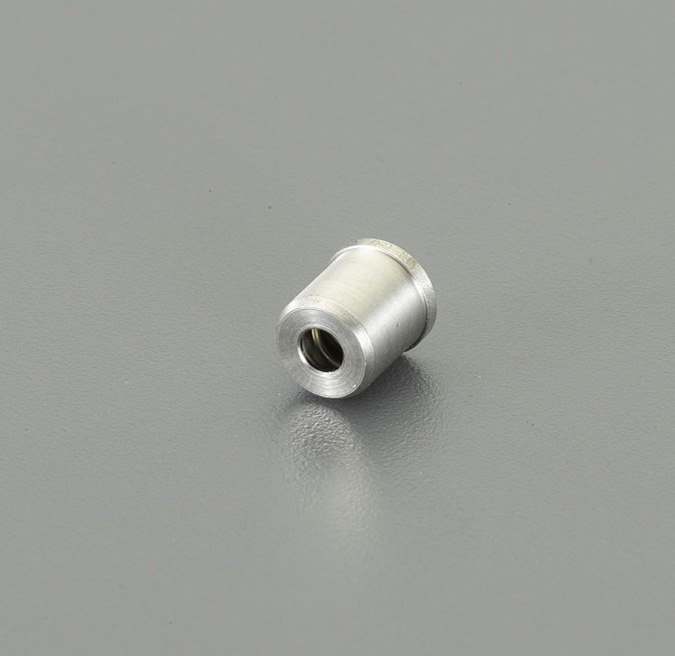

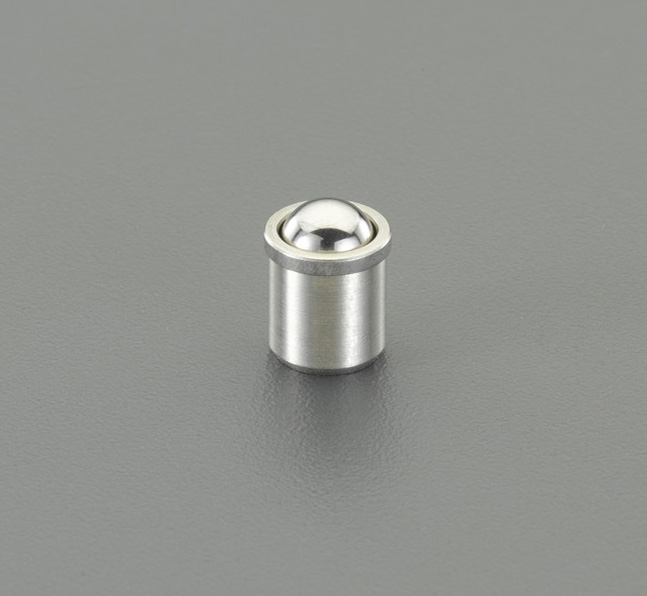

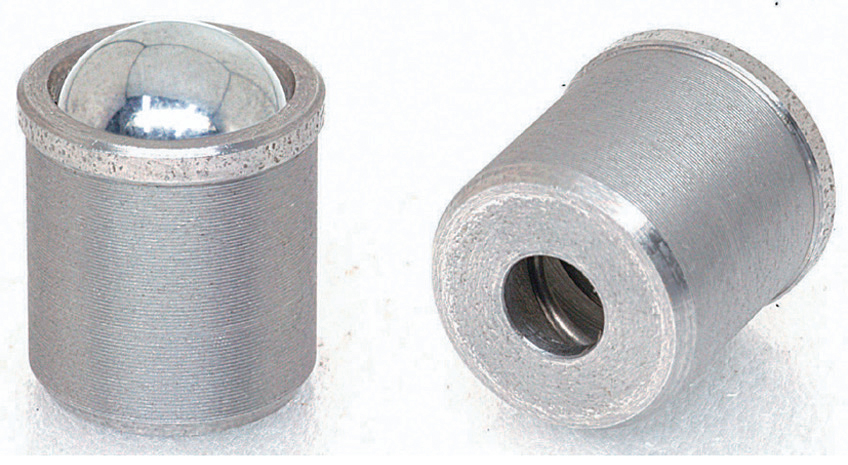

Description : ［Insertion Type］Ball Plunger （SUS Case ）

Spec

Body Material SUS303
 Ball Material SUS420
For light load
Plug type of stainless steel case.
Please fix with adhesive to stop it.
RoHS-Compliant
Size (mm) A：3 B：2.5
C：4 D：0.65
E：3.5
 Minimum to Max. Pressure (N) 1.7 to 3.4
Additional explanation
Catalog Price (JPY)

¥ 365 （Excluding tax）／¥ 402（Tax including）

Quantity of stock

Latest stock：7

（2025/05/10 10:49 Currently）

Update
Catalog Page Page 1261
Relational Items
EA948DB-121 ［Insertion Type］Ball Plunger （SUS Case ）
EA948DB-122 ［Insertion Type］Ball Plunger （SUS Case ）
EA948DB-123 ［Insertion Type］Ball Plunger （SUS Case ）
EA948DB-124 ［Insertion Type］Ball Plunger （SUS Case ）
EA948DB-125 ［Insertion Type］Ball Plunger （SUS Case ）
EA948DB-126 ［Insertion Type］Ball Plunger （SUS Case ）
EA948DB-127 ［Insertion Type］Ball Plunger （SUS Case ）
Web catalog image
Expanding
  • Prev
  • Next

Documents

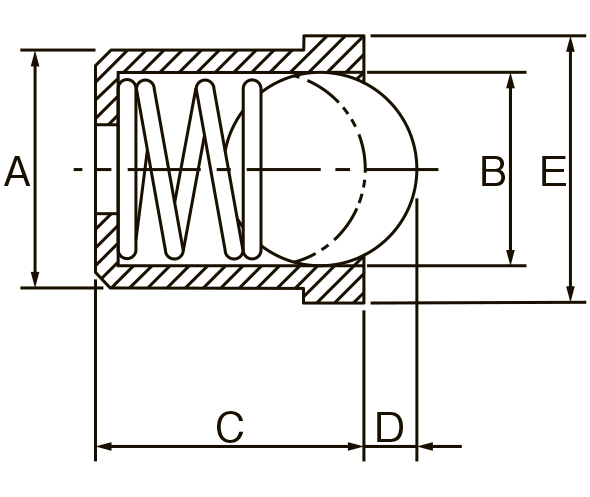

ESCO dimentional drawing
