Item# : EA948DB-124

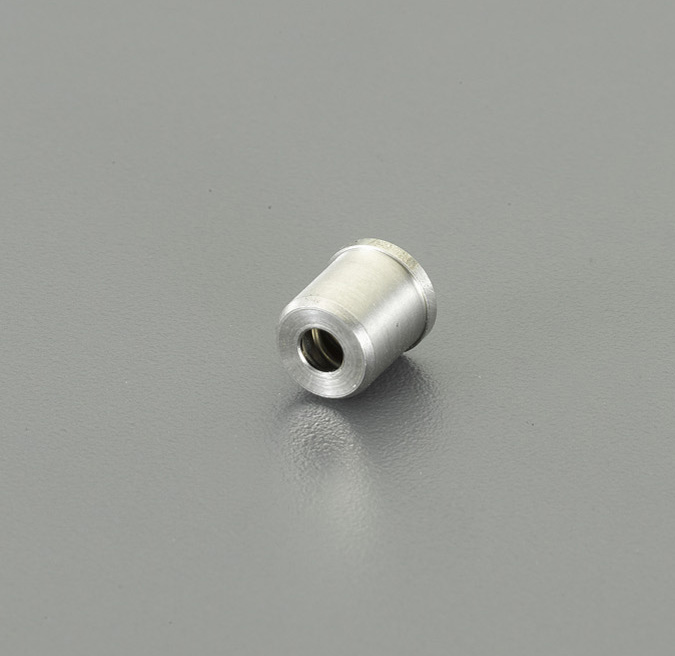

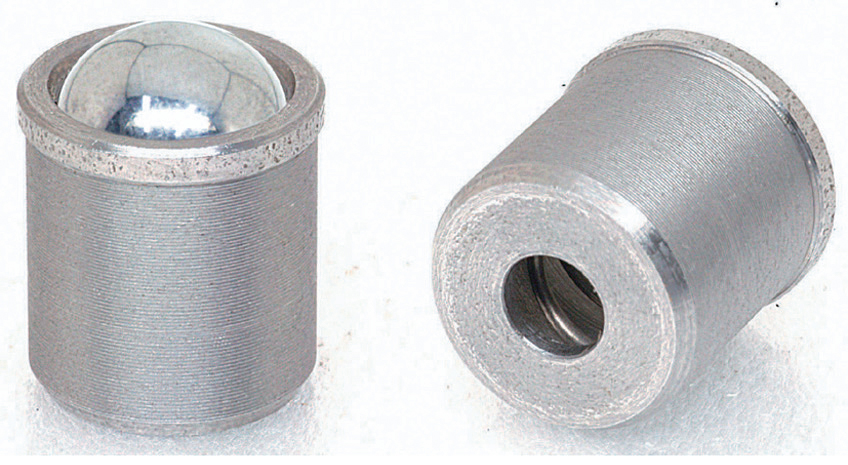

Description : ［Insertion Type］Ball Plunger （SUS Case ）

Spec

Body Material SUS303
 Ball Material SUS420
For light load
Plug type of stainless steel case.
Please fix with adhesive to stop it.
RoHS-Compliant
Size (mm) A：6 B：5
C：7 D：1.5
E：6.5
 Minimum to Max. Pressure (N) 6 to 12
Additional explanation
Catalog Price (JPY)

¥ 375 （Excluding tax）／¥ 413（Tax including）

Quantity of stock

Latest stock：5

（2024/05/22 05:08 Currently）

Update
Catalog Page Page 1277
Relational Items
EA948DB-121 ［Insertion Type］Ball Plunger （SUS Case ）
EA948DB-122 ［Insertion Type］Ball Plunger （SUS Case ）
EA948DB-123 ［Insertion Type］Ball Plunger （SUS Case ）
EA948DB-124 ［Insertion Type］Ball Plunger （SUS Case ）
EA948DB-125 ［Insertion Type］Ball Plunger （SUS Case ）
EA948DB-126 ［Insertion Type］Ball Plunger （SUS Case ）
EA948DB-127 ［Insertion Type］Ball Plunger （SUS Case ）

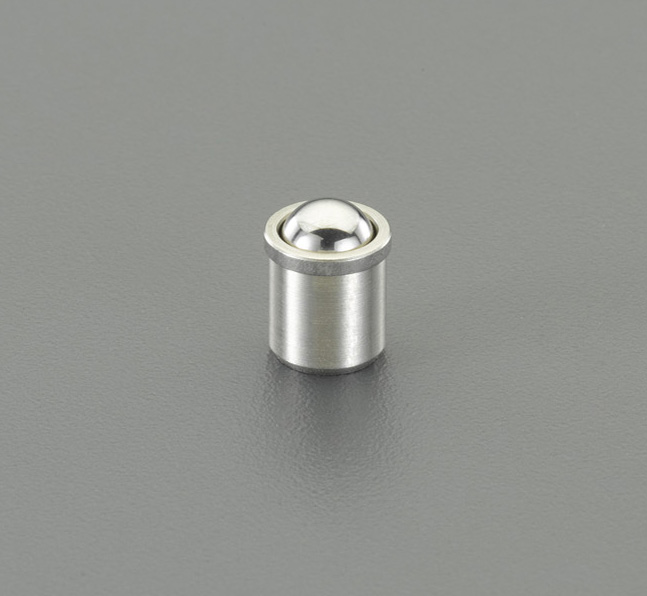

Web catalog image
Expanding
  • Prev
  • Next

Documents

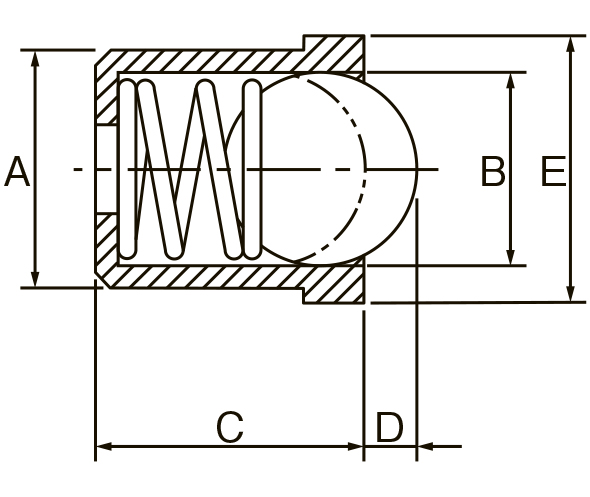

ESCO dimentional drawing
