Item# : EA948DB-33

Description : Heavy Load Ball Plunger（With Long Lock ）

Spec

Body Material SUM22L(Ferrosoferric oxide coating film )
 Ball Material SUJ2
Heavy Duty
Long Lock (with looseness Prevention )Adapted
Rohs-Compliant
size (mm) A：M5、B：3、
C：12、D：0.9
 Minimum ～Max. Pressure (N) 19 to 30
Additional explanation
Catalog Price (JPY)

¥ 610 （Excluding tax）／¥ 671（Tax including）

Quantity of stock

Latest stock：4

（2025/12/13 13:58 Currently）

Update
Catalog Page Page 1261
Relational Items
EA948DB-31 Heavy Load Ball Plunger（With Long Lock ）
EA948DB-32 Heavy Load Ball Plunger（With Long Lock ）
EA948DB-33 Heavy Load Ball Plunger（With Long Lock ）
EA948DB-34 Heavy Load Ball Plunger（With Long Lock ）
EA948DB-35 Heavy Load Ball Plunger（With Long Lock ）
EA948DB-36 Heavy Load Ball Plunger（With Long Lock ）
EA948DB-37 Heavy Load Ball Plunger（With Long Lock ）
EA948DB-38 Heavy Load Ball Plunger（With Long Lock ）

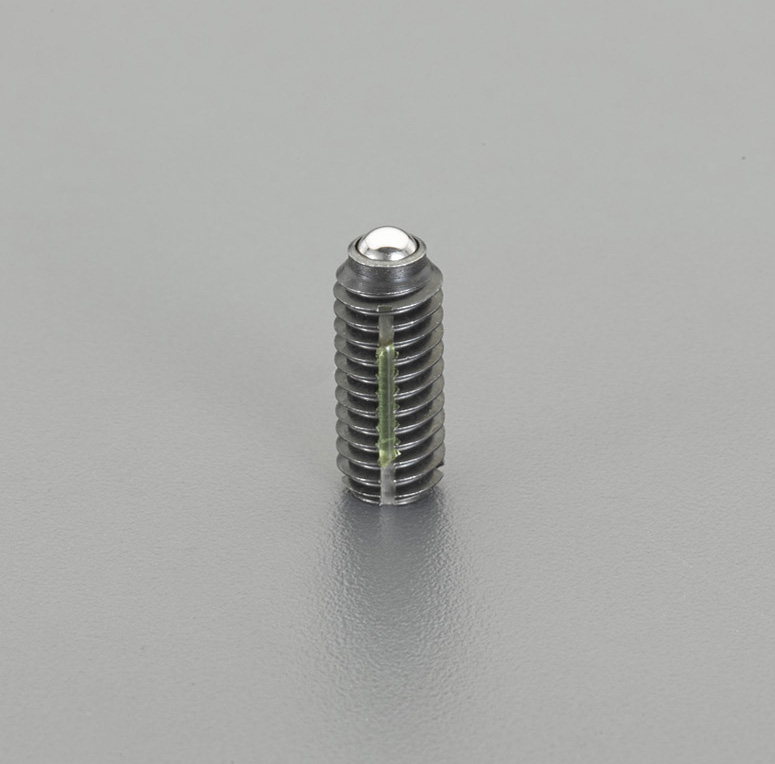

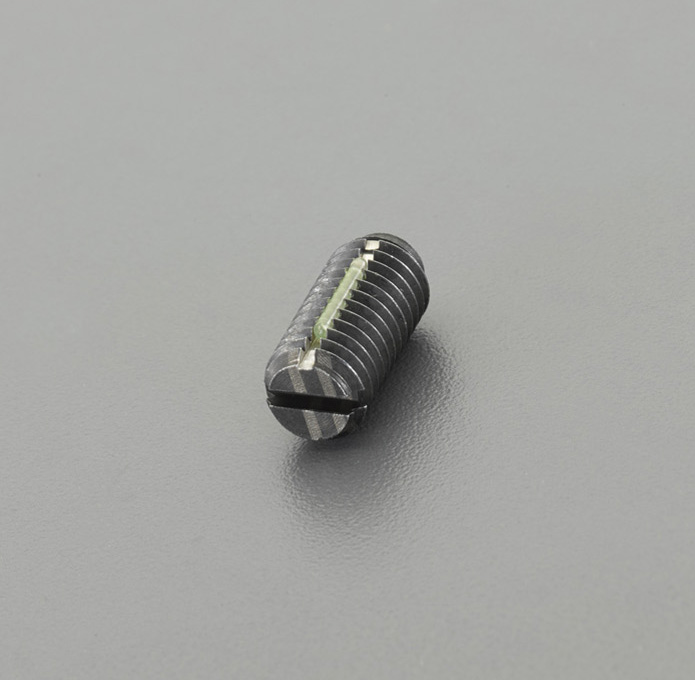

Web catalog image
Expanding
  • Prev
  • Next

Documents

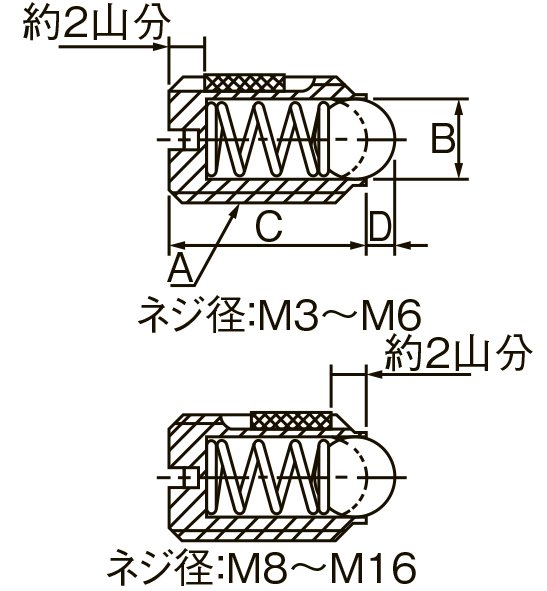

ESCO dimentional drawing
