Item# : EA948DB-38

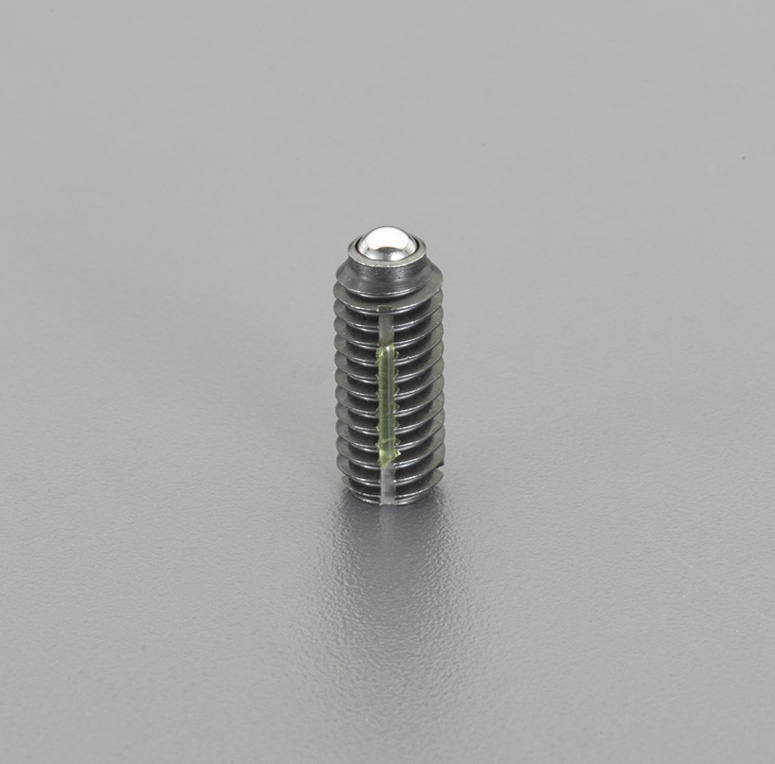

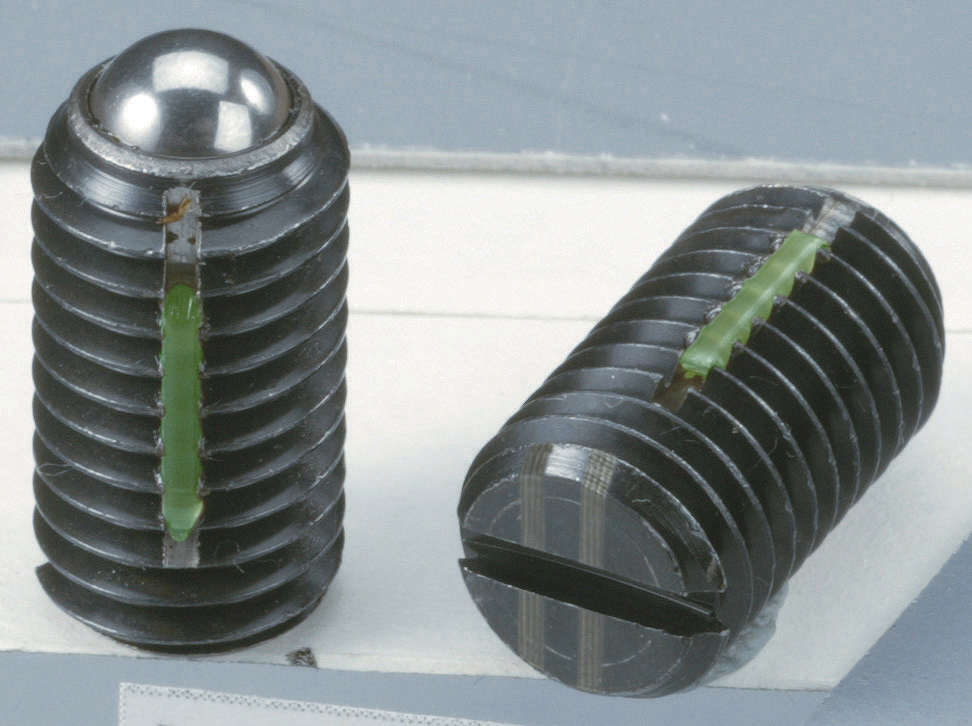

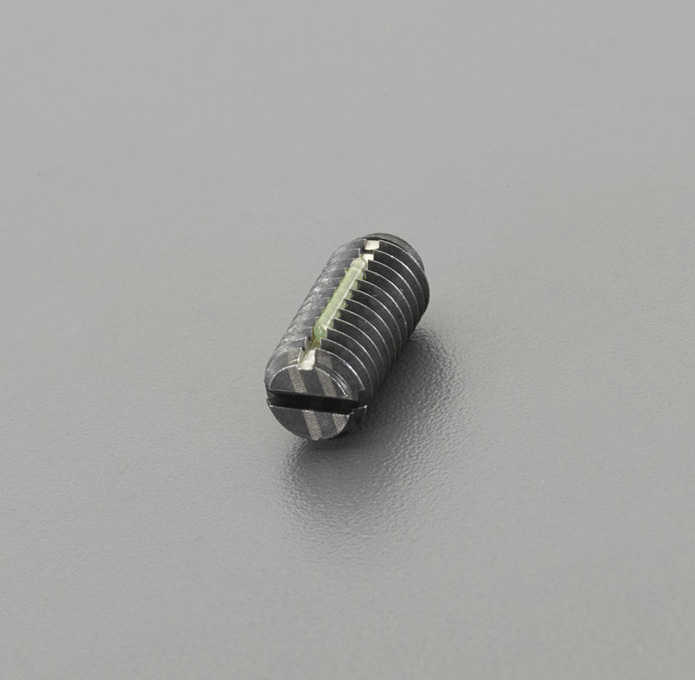

Description : Heavy Load Ball Plunger（With Long Lock ）

Spec

Body Material SUM22L(Ferrosoferric oxide coating film )
 Ball Material SUJ2
Heavy Duty
Long Lock (with looseness Prevention )Adapted
Rohs-Compliant
size (mm) A：M16、B：10、
C：24、D：3.5
 Minimum ～Max. Pressure (N) 90 to 180
Additional explanation
Catalog Price (JPY)

¥ 2,230 （Excluding tax）／¥ 2,453（Tax including）

Quantity of stock

Latest stock：10

（2025/05/10 10:45 Currently）

Update
Catalog Page Page 1261
Relational Items
EA948DB-31 Heavy Load Ball Plunger（With Long Lock ）
EA948DB-32 Heavy Load Ball Plunger（With Long Lock ）
EA948DB-33 Heavy Load Ball Plunger（With Long Lock ）
EA948DB-34 Heavy Load Ball Plunger（With Long Lock ）
EA948DB-35 Heavy Load Ball Plunger（With Long Lock ）
EA948DB-36 Heavy Load Ball Plunger（With Long Lock ）
EA948DB-37 Heavy Load Ball Plunger（With Long Lock ）
EA948DB-38 Heavy Load Ball Plunger（With Long Lock ）
Web catalog image
Expanding
  • Prev
  • Next

Documents

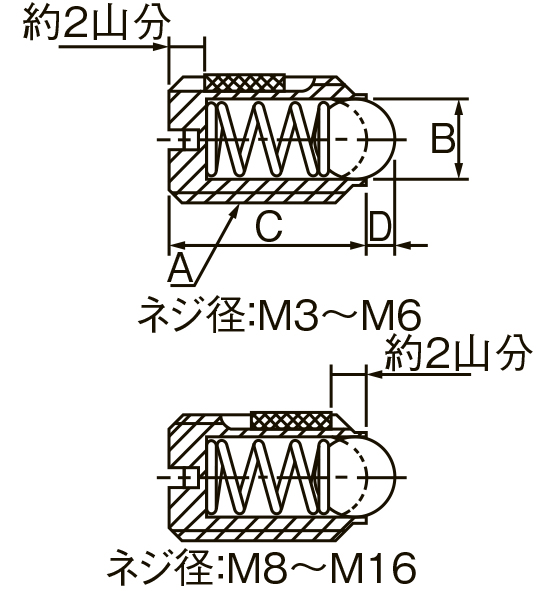

ESCO dimentional drawing
