Item# : EA949CW-63
Description : Valve Cap
Spec
| Material-Cap and thread: polyamide，Spring: SUS302，Packing: nitrile rubber (NBR) |
|||
| Gasoline and alcohol cannot be used. |
|||
| When the tank reaches a certain air pressure， the valve automatically opens to release the high-pressure air. |
|||
| Use this tool for speed reducers， variators， compressors that need to vent compressed air. |
|||
| A | PF1/2 |
C | 31 |
|---|---|---|---|
| D | 30 |
E | 14 |
| Low pressure activation | 100mbar | ||
| Additional explanation |
|
|---|
| Catalog Price (JPY) |
¥ 1,050 （Excluding tax）／¥ 1,155（Tax including） |
||||
|---|---|---|---|---|---|
| Quantity of stock |
Latest stock：5 （2025/05/10 17:10 Currently）
|
||||
| Catalog Page | Page 1263 | ||||
| Relational Items |
|---|
| EA949CW-62 Valve Cap |
| EA949CW-63 Valve Cap |
| EA949CW-64 Valve Cap |
| EA949CW-65 Valve Cap |

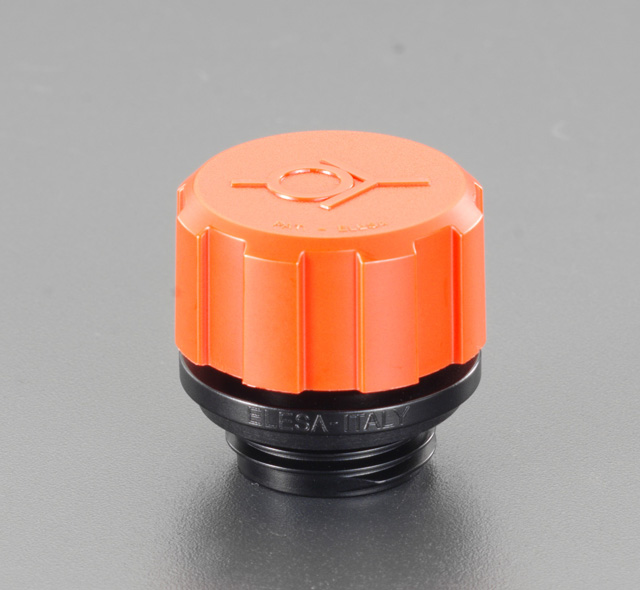

Web catalog image
Expanding
.jpg "Web catalog image")

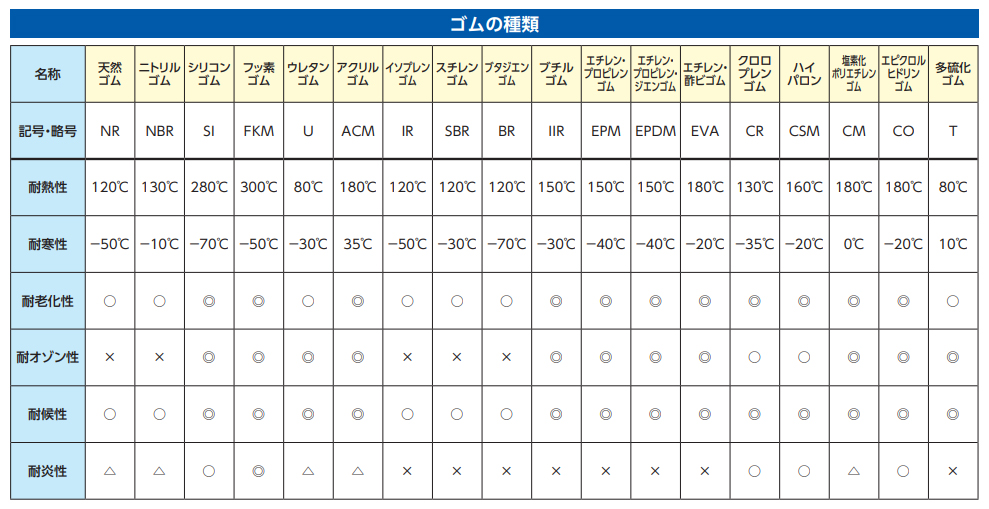

.jpg "Sub image")

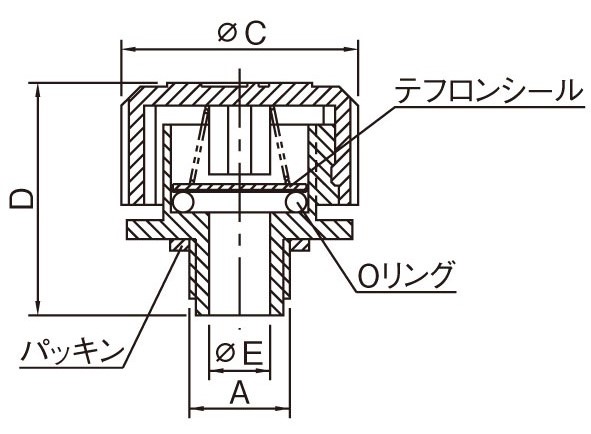

.jpg "ESCO dimentional drawing")
Documents
| Specification |
|
|---|---|
| ESCO dimentional drawing |
|
