Product Detail

Item# : EA949CW-65

Description : Valve Cap

Material-Cap and thread: polyamide，Spring: SUS302，Packing: nitrile rubber (NBR)
Gasoline and alcohol cannot be used.
When the tank reaches a certain air pressure， the valve automatically opens to release the high-pressure air.
Use this tool for speed reducers， variators， compressors that need to vent compressed air.
A	PF1	C	42
D	37	E	23
Low pressure activation	100mbar

Additional explanation

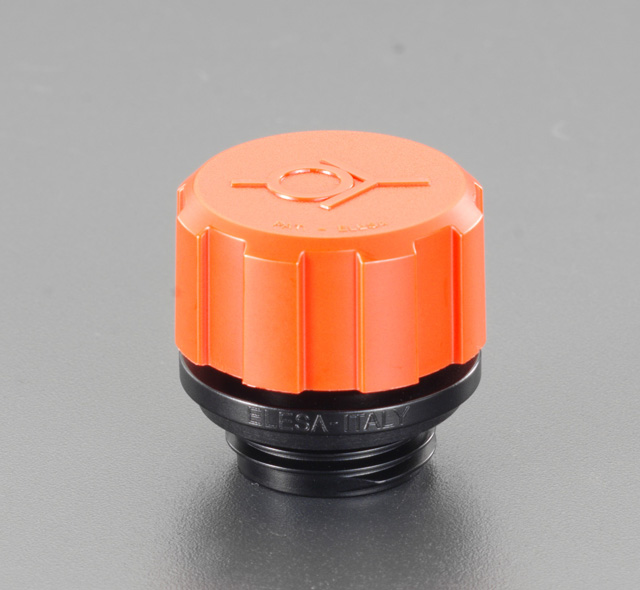

Web catalog image

Specification

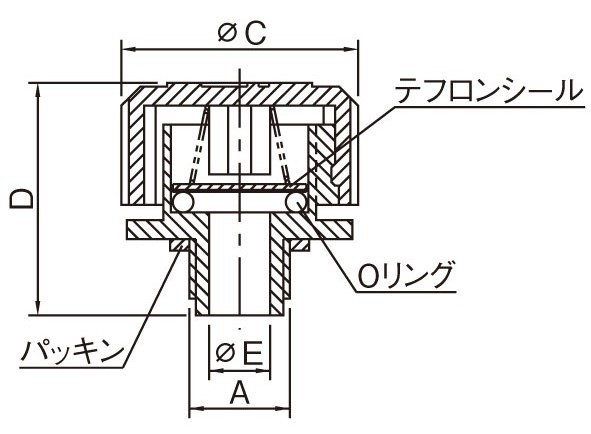

ESCO dimentional drawing

＜About item＞
Esco label with bar code is put on the handling pruducts (Excluding part of direct product from manufacture). A product becomes the change of specifications and the abolished turn without a notice by model change and improvement circumstances.
＜About size＞
The value of indication includes an error.Please select with margin.
＜About color＞
About the color of the publication product, it is a little different from a real color.
＜About an expense of heavy product＞
It is requested about assembling, insrallation and installation separately.
