Product Detail

Item# : EA951EW-101

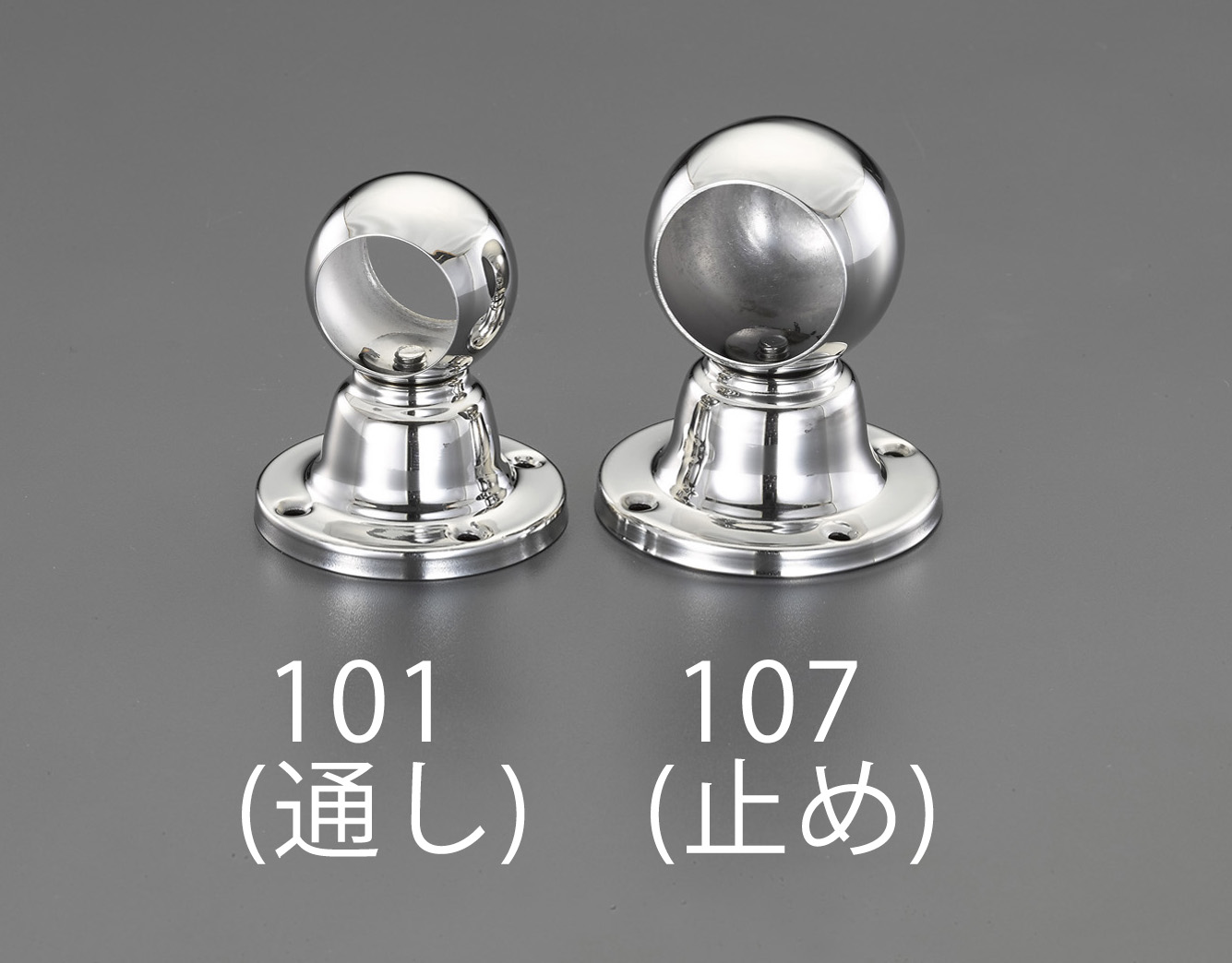

Description : Bracket For pipe (Stainless Steel) (Penetration)

Material	SUS304
Polishing Finish
Hole Dia.	Dia 3.2mm	Properness Pipe Dia.(mm)	25
Plate	54.0mm	Overall Height	61.8mm
Passing Type (Intermediate For )

Additional explanation

Relational Items
EA951EW-101 Bracket For pipe (Stainless Steel) (Penetration)
EA951EW-102 Bracket For pipe (Stainless Steel) (Penetration)
EA951EW-103
EA951EW-106 Bracket For pipe (Stainless Steel) (End)
EA951EW-107 Bracket For pipe (Stainless Steel) (End)
EA951EW-108

Web catalog image

Catalog
Drawings

＜About item＞
Esco label with bar code is put on the handling pruducts (Excluding part of direct product from manufacture). A product becomes the change of specifications and the abolished turn without a notice by model change and improvement circumstances.
＜About size＞
The value of indication includes an error.Please select with margin.
＜About color＞
About the color of the publication product, it is a little different from a real color.
＜About an expense of heavy product＞
It is requested about assembling, insrallation and installation separately.
