Item# : EA966DZ-5

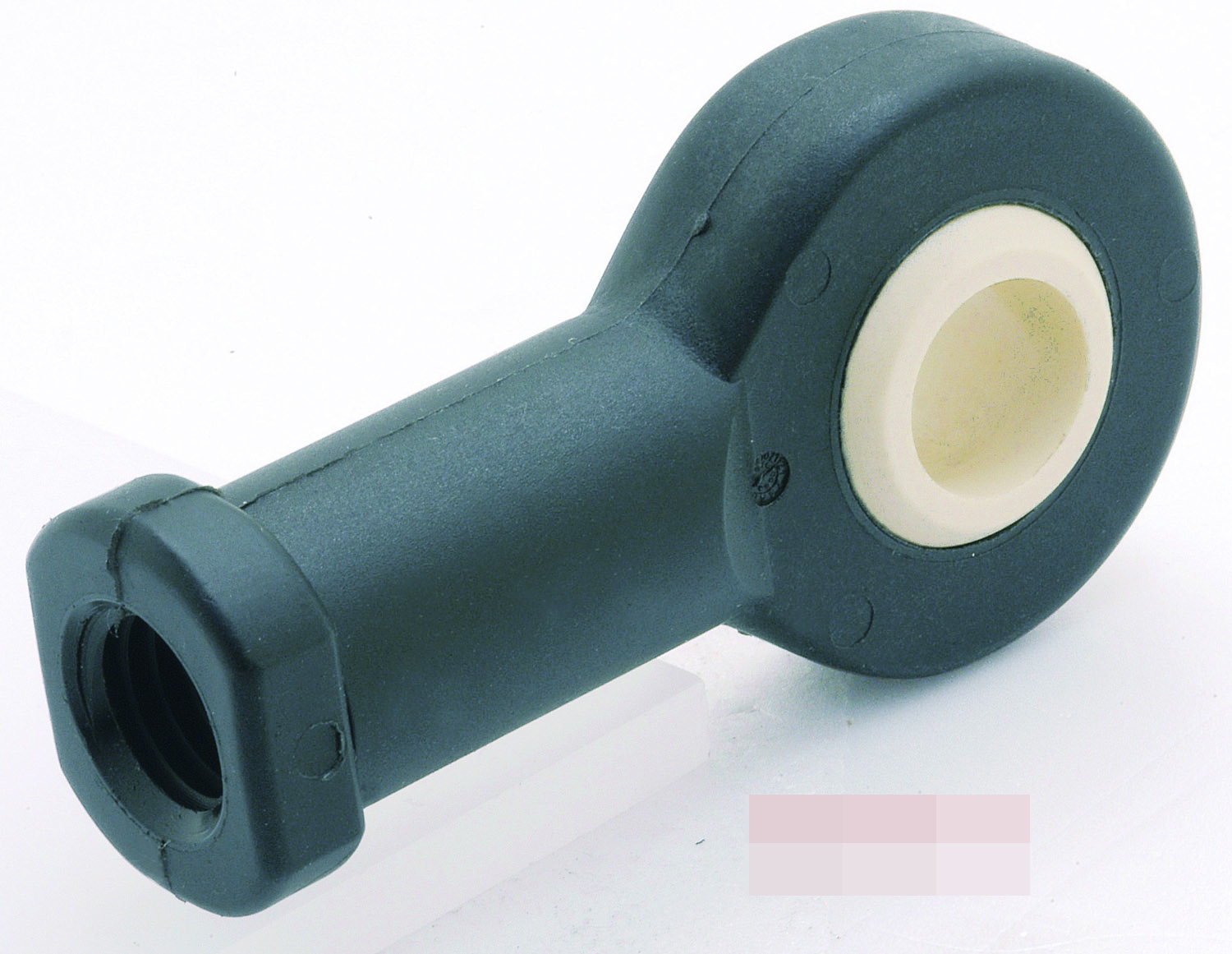

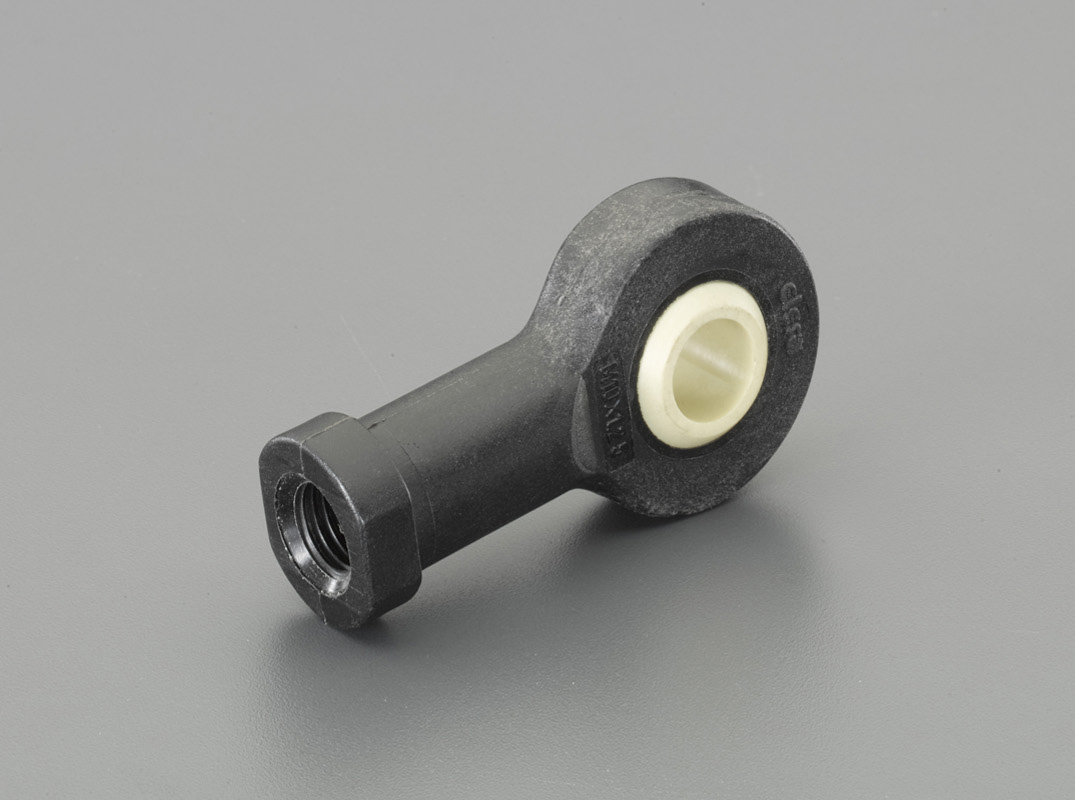

Description : Internal Thread Rod End （Resin ）

This product is no longer available. Please refer to replacement item below.

Spec

The right Screw
Material Housing ：Polyamide
Ball ：Polyamide
Rohs-Compliant
Screw M12

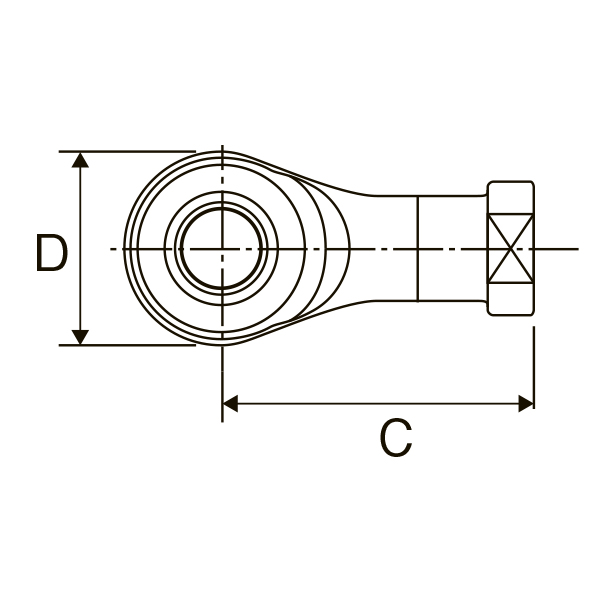

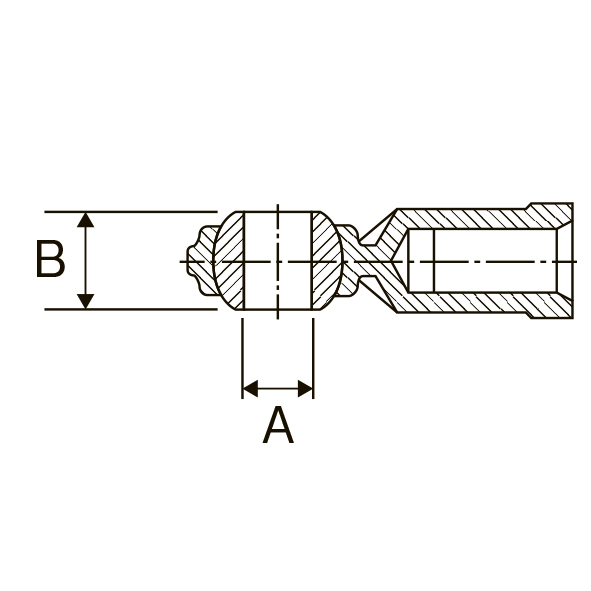

 size (mm) A：12、B：16、
C：50、D：34
Additional explanation
Catalog Price (JPY)

¥ 1,300 （Excluding tax）／¥ 1,430（Tax including）

Quantity of stock

Latest stock：0

（2025/05/03 18:38 Currently）

Update

Replacement Items

EA966DA-12A
Relational Items
EA966DZ-1 Internal Thread Rod End （Resin ）
EA966DZ-2 Internal Thread Rod End （Resin ）
EA966DZ-3 Internal Thread Rod End （Resin ）
EA966DZ-4 Internal Thread Rod End （Resin ）
EA966DZ-5 Internal Thread Rod End （Resin ）
EA966DZ-6 Internal Thread Rod End （Resin ）
EA966DZ-7 Internal Thread Rod End （Resin ）
Web catalog image
Expanding
  • Prev
  • Next

Documents

ESCO dimentional drawing
  1. IMG
  2. IMG
