Item# : EA986MW-260

Description : Steel-rim Wheel Pneumatic Wheel

Spec

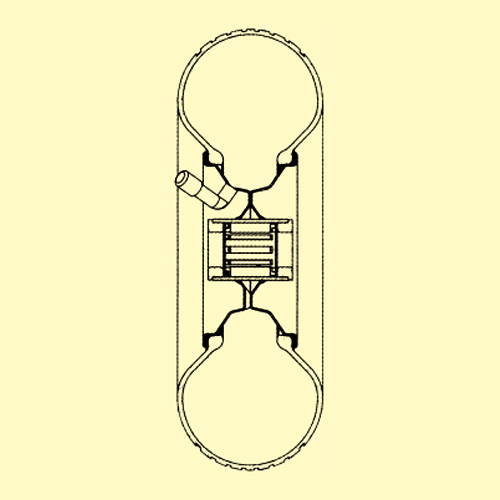

Material Tire: air tire with tube (2 layers)
Rim: steel(Zinc plating)
Roller bearing
Heat-proof temperature -25 to 50℃

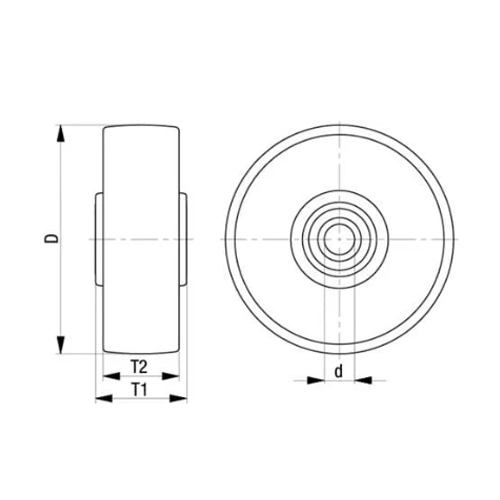

 Wheel dia. x W 260 x 85mm
Load capacity 150kg
 Shaft dia. 20mm
Additional explanation
Catalog Price (JPY)

¥ 11,100 （Excluding tax）／¥ 12,210（Tax including）

Quantity of stock

Latest stock：8

（2026/11/01 07:26 Currently）

Update
Catalog Page Page 1699
