Item# : EA986MW-301

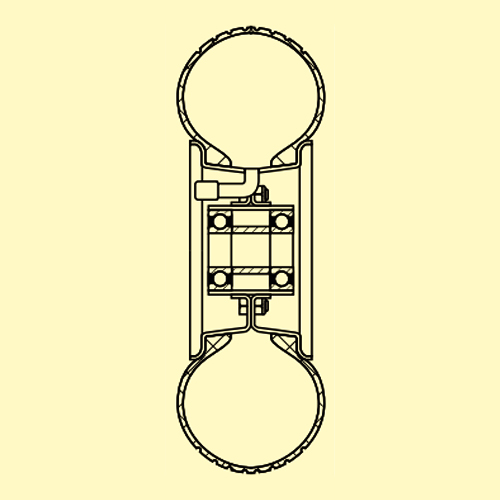

Description : Steel-rim Wheel Pneumatic Wheel

Spec

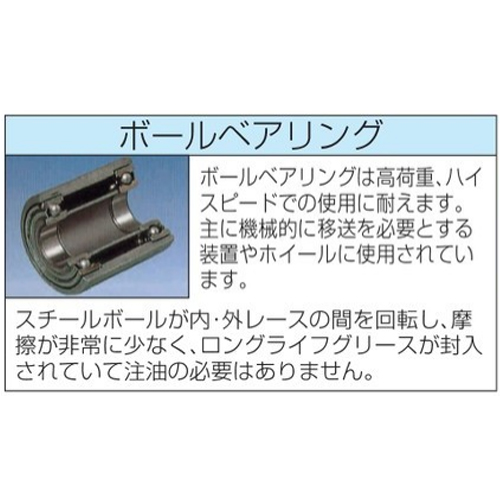

Ball bearing
Heatproof temperature -25 to 50℃
 Material Tire：Pneumatic tire with tube (2 layers)
Rim of wheel：Steel(Zinc plated)
Wheel dia.xWidth 300x100mm

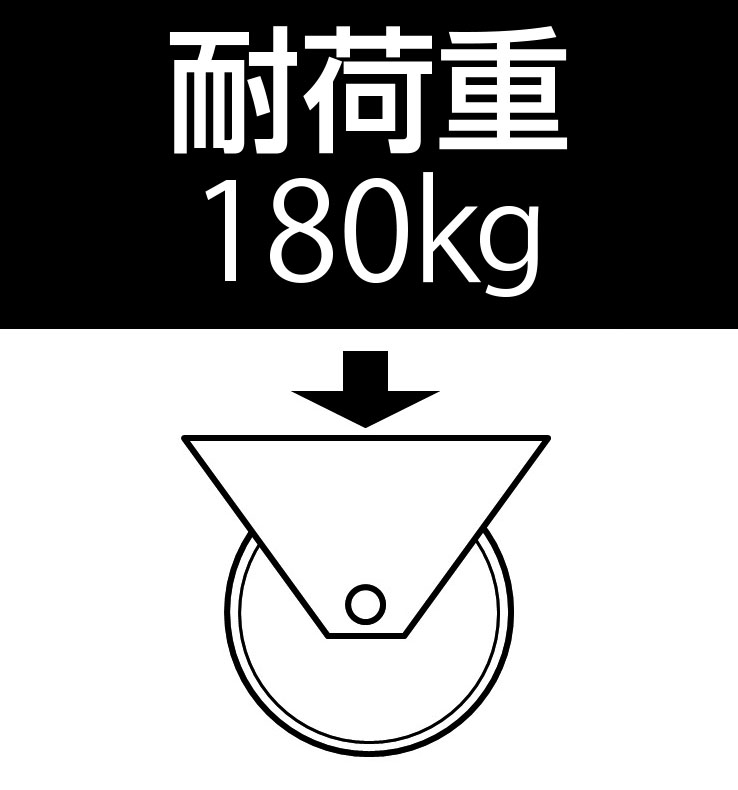

 Load capacity 180kg
Shaft dia. 25mm
Air-filled tire
Additional explanation
Catalog Price (JPY)

¥ 17,800 （Excluding tax）／¥ 19,580（Tax including）

Quantity of stock

Latest stock：4

（2026/11/01 03:25 Currently）

Update
Catalog Page Page 1699
Relational Items
EA986MW-220 Steel-rim Wheel Pneumatic Wheel
EA986MW-260 Steel-rim Wheel Pneumatic Wheel
EA986MW-261 Steel-rim Wheel Pneumatic Wheel
EA986MW-301 Steel-rim Wheel Pneumatic Wheel
Web catalog image
Expanding
  • Prev
  • Next

Documents

RoHS
  1. PDF

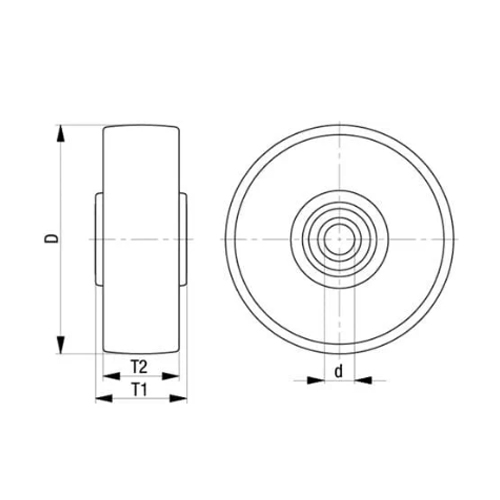

ESCO dimentional drawing
  1. IMG

Note : Please read it before having you purchase item.

  • Esco label
    ＜About item＞

    Esco label with bar code is put on the handling pruducts (Excluding part of direct product from manufacture). A product becomes the change of specifications and the abolished turn without a notice by model change and improvement circumstances.

  • ＜About size＞

    The value of indication includes an error.Please select with margin.

  • ＜About color＞

    About the color of the publication product, it is a little different from a real color.

  • ＜About an expense of heavy product＞

    It is requested about assembling, insrallation and installation separately.
