Item# : EA986PZ-4
Description : Brake Stopper
Spec
| Hole dia.-11mm |
|||
| Hole pitch-85 to 100 x 85 to 100mm |
|||
| Plate dim.-120 x 120mm |
|||
| Material-Steel |
|||
| The lock pedal and release pedal are independent of each other， and easy to operate. |
|||
| Can be used on the concave floor because the space expands and contracts about 5mm when the built-in spring moves. |
|||
| Installation height | 202mm |
ON height | 210mm |
|---|---|---|---|
| OFF height | 170mm | ||
| Additional explanation |
|
|---|
| Catalog Price (JPY) |
¥ 7,650 （Excluding tax）／¥ 8,415（Tax including） |
||||
|---|---|---|---|---|---|
| Quantity of stock |
Latest stock：6 （2025/05/04 15:14 Currently）
|
||||
| Catalog Page | Page 1744 | ||||
| Relational Items |
|---|
| EA986PZ-2 Brake Stopper |
| EA986PZ-4 Brake Stopper |
| EA986PZ-5 Brake Stopper |
Web catalog image
Expanding

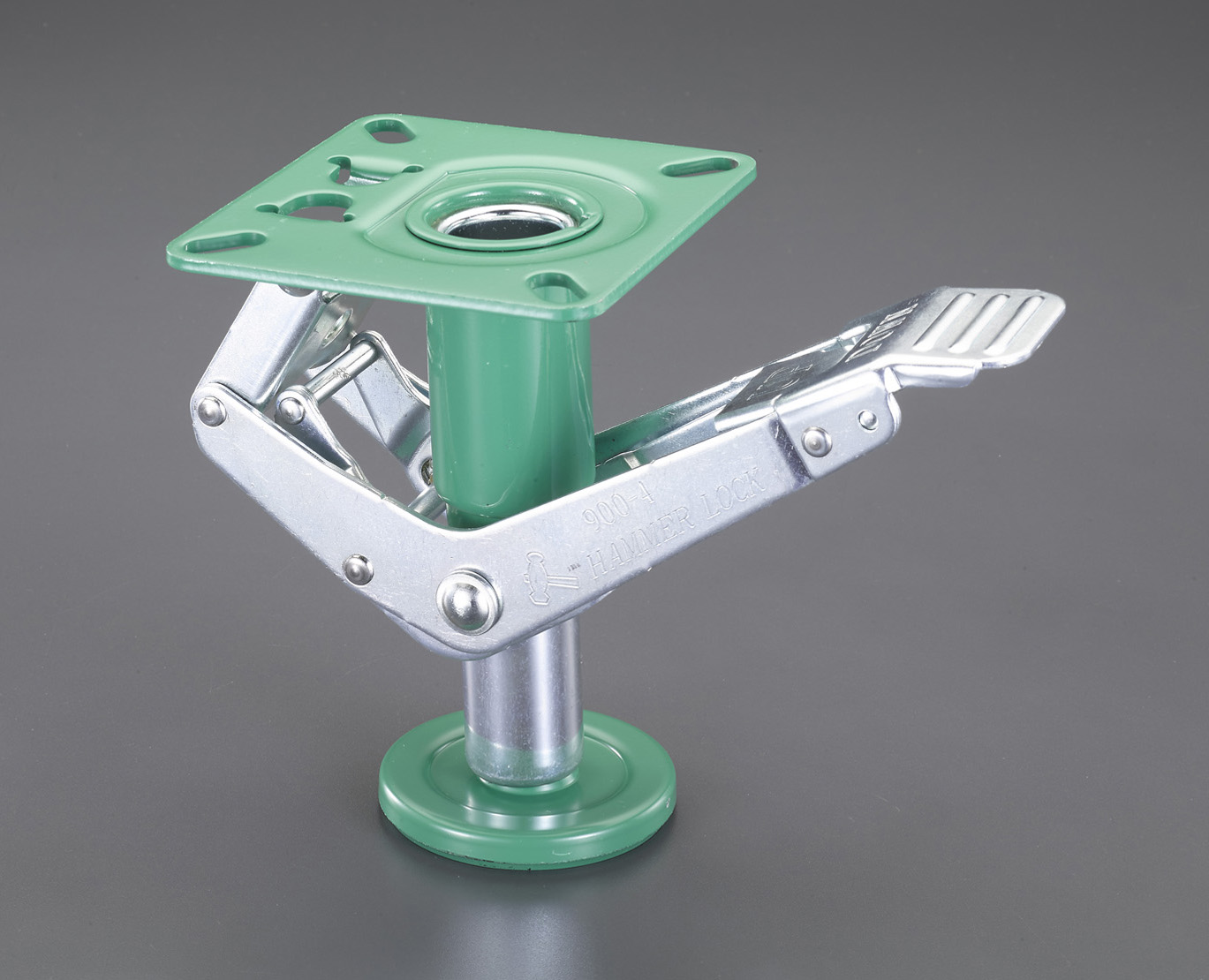

.jpg "Web catalog image")

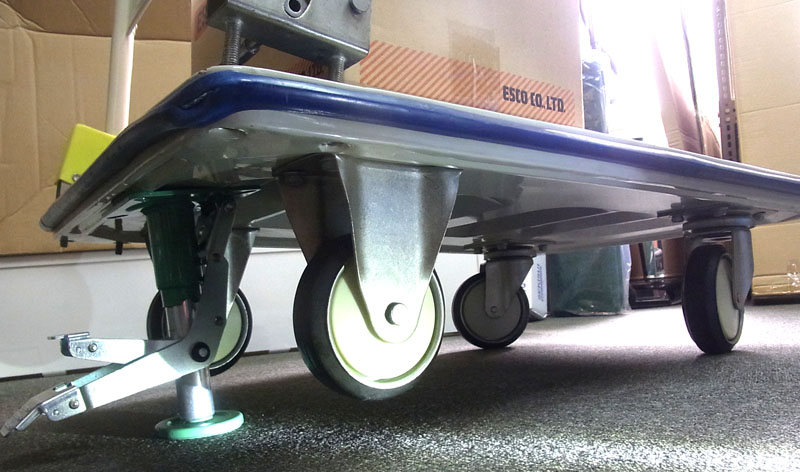

.jpg "Using image")

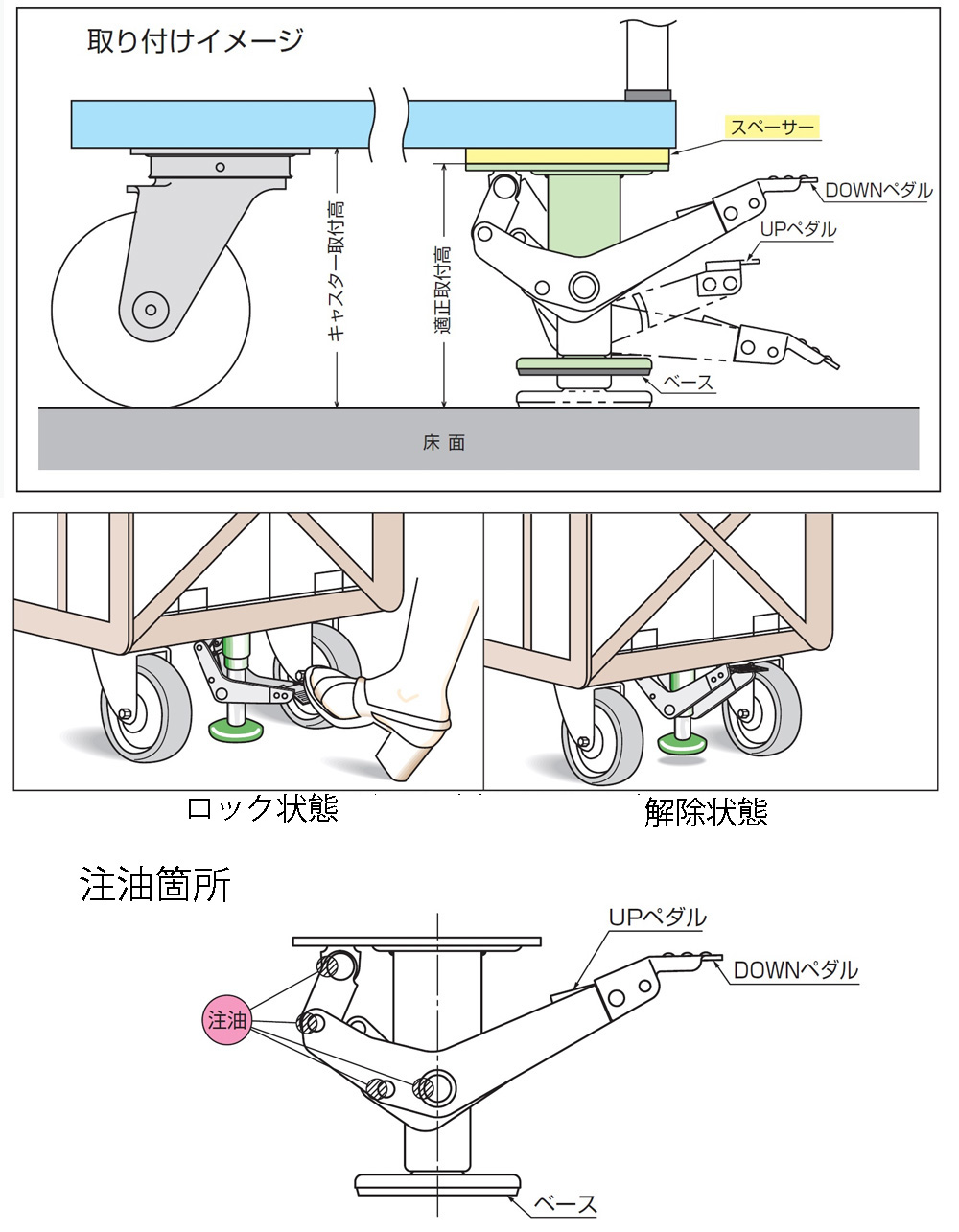

.jpg "Sub image")
.jpg "Sub image")

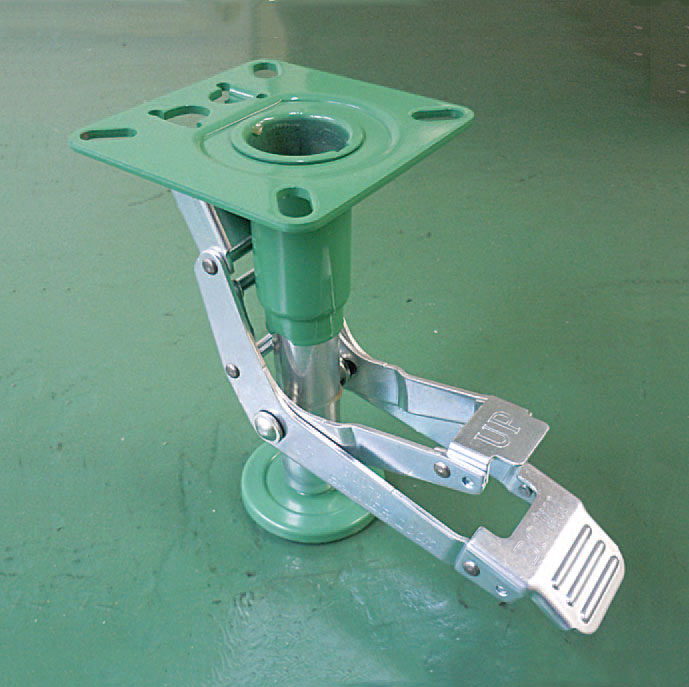

.jpg "Appearance image")

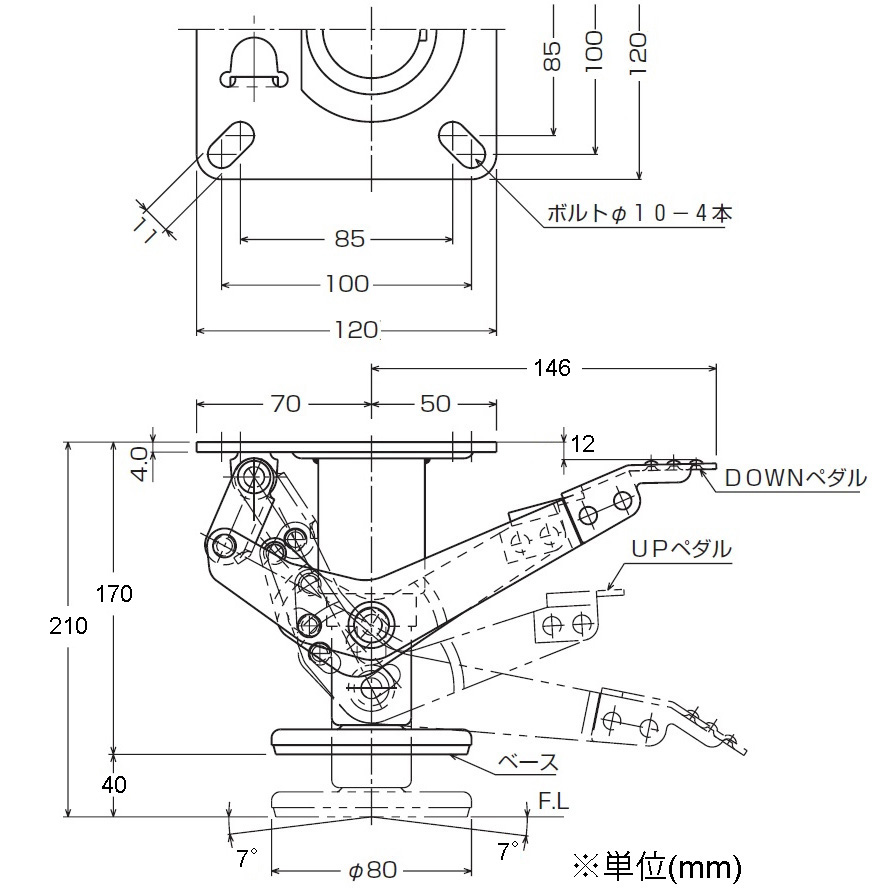

.jpg "ESCO dimentional drawing")
Documents
| ESCO dimentional drawing |
|
|---|
