Item# : EA425HB-122

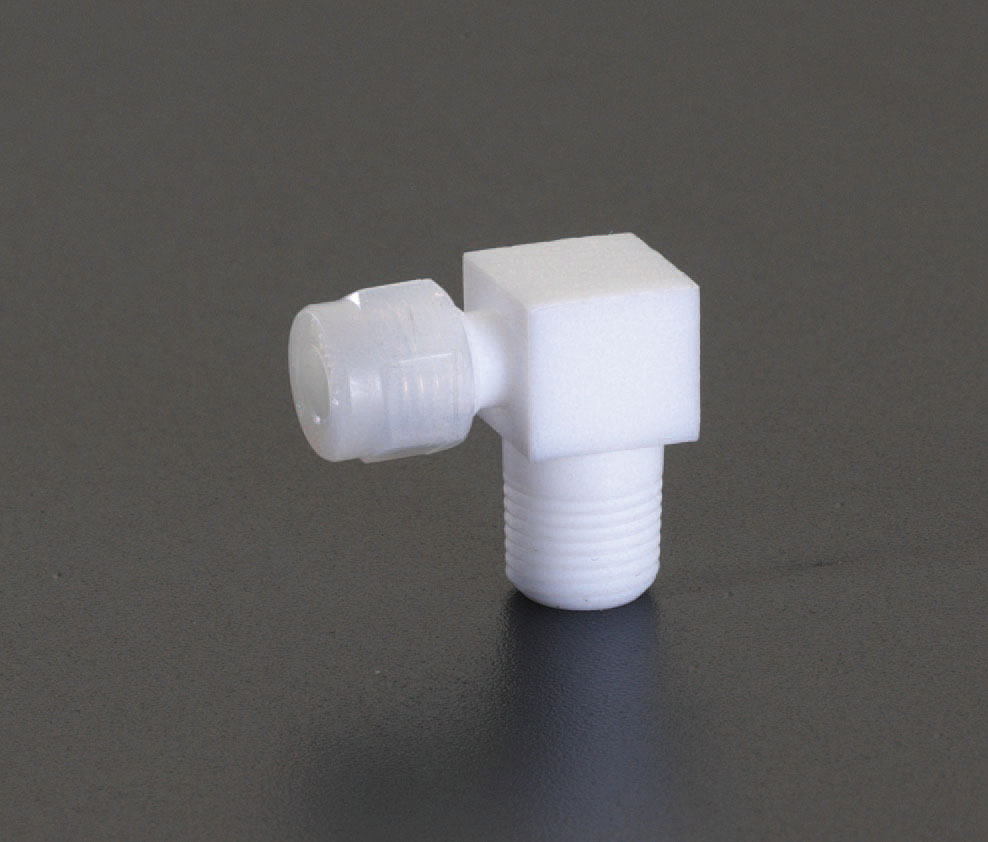

Description : Elbow Union

Spec

Material-Body: fluororesin [PTFE] Nut: fluororesin [ECTFE]
Max operating temperature-100℃
Applicable tube-PFA， PTFE teflon resin tube
Chemical resistance
Easy setting (No special tool required for installation， taper shrink seal type)
Tubedim. (mm) 12
 Screw dim.PT R1/4
Max pressure(23℃) 0.5MPa
Additional explanation
Catalog Price (JPY)

¥ 8,690 （Excluding tax）／¥ 9,559（Tax including）

Quantity of stock

Latest stock：1

（2025/11/13 03:46 Currently）

Update
Catalog Page Page 1071
Relational Items
EA425HB-41 Elbow Union
EA425HB-42 Elbow Union
EA425HB-61 Elbow Union
EA425HB-62 Elbow Union
EA425HB-63 Elbow Union
EA425HB-81 Elbow Union
EA425HB-82 Elbow Union
EA425HB-83 Elbow Union
EA425HB-102 Elbow Union
EA425HB-103 Elbow Union
EA425HB-104 Elbow Union
EA425HB-122 Elbow Union
EA425HB-123 Elbow Union
Web catalog image
Expanding
  • Prev
  • Next

Documents

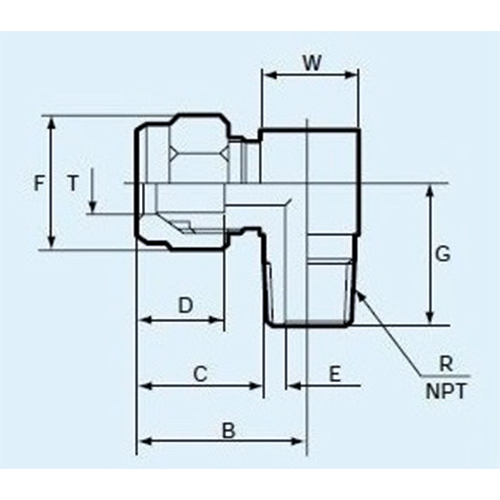

ESCO dimentional drawing
