Item# : EA425HB-83

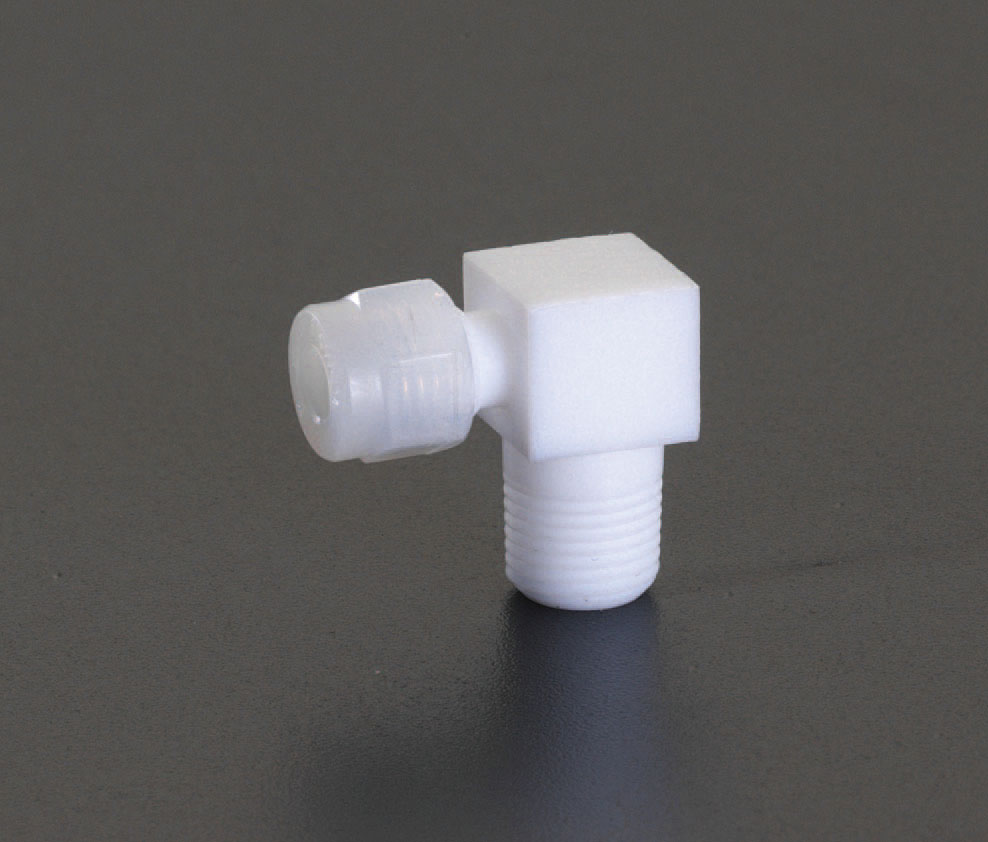

Description : Elbow Union

Spec

Material-Body: fluororesin [PTFE] Nut: fluororesin [ECTFE]
Max operating temperature-100℃
Applicable tube-PFA， PTFE teflon resin tube
Chemical resistance
Easy setting (No special tool required for installation， taper shrink seal type)
Tubedim. (mm) 8
 Screw dim.PT R3/8
Max pressure(23℃) 0.8MPa
Additional explanation
Catalog Price (JPY)

¥ 6,010 （Excluding tax）／¥ 6,611（Tax including）

Quantity of stock

Latest stock：3

（2025/05/04 15:25 Currently）

Update
Catalog Page Page 1071
Relational Items
EA425HB-41 Elbow Union
EA425HB-42 Elbow Union
EA425HB-61 Elbow Union
EA425HB-62 Elbow Union
EA425HB-63 Elbow Union
EA425HB-81 Elbow Union
EA425HB-82 Elbow Union
EA425HB-83 Elbow Union
EA425HB-102 Elbow Union
EA425HB-103 Elbow Union
EA425HB-104 Elbow Union
EA425HB-122 Elbow Union
EA425HB-123 Elbow Union
Web catalog image
Expanding
  • Prev
  • Next

Documents

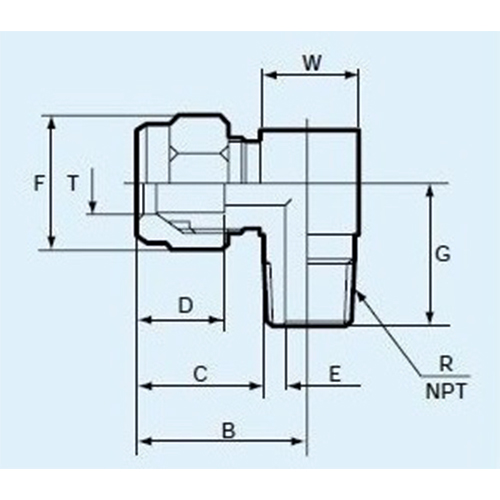

ESCO dimentional drawing
