Item# : EA538MA-67

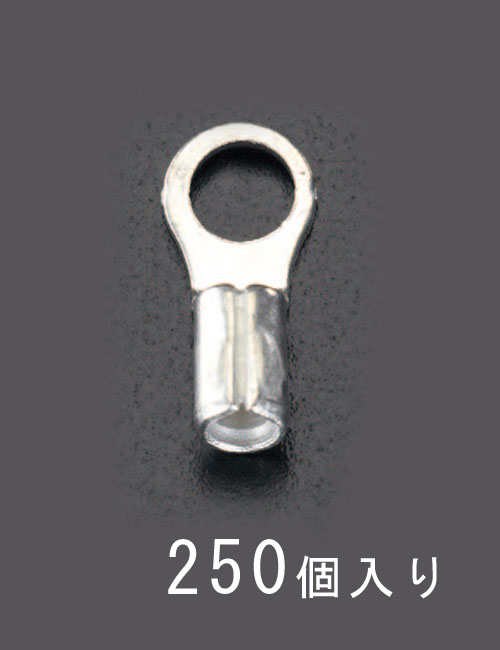

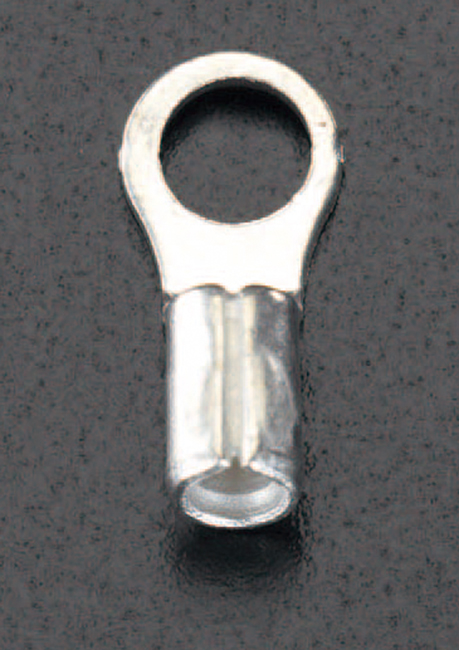

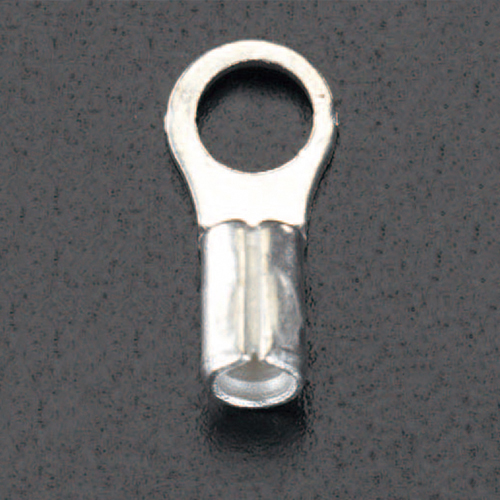

Description : [Round type] Bare crimp terminal

Spec

Type 3.5-4
 Stranded(mm2) 2.63 to 4.6

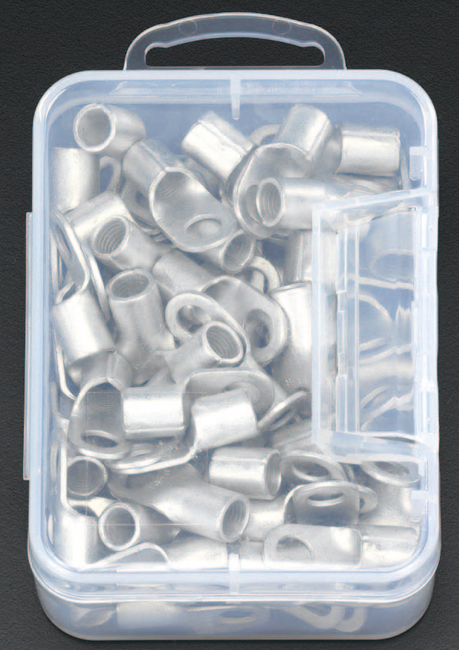

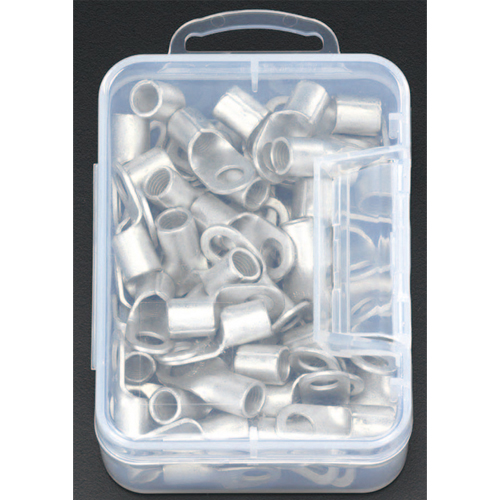

Qty. 250 pcs
Additional explanation
Catalog Price (JPY)

¥ 3,140 （Excluding tax）／¥ 3,454（Tax including）

Quantity of stock

Latest stock：50

（2026/01/01 18:26 Currently）

Update
Catalog Page Page 1172
Relational Items
EA538MA-61 [Round type] Bare crimp terminal
EA538MA-62 [Round type] Bare crimp terminal
EA538MA-63 [Round type] Bare crimp terminal
EA538MA-64 [Round type] Bare crimp terminal
EA538MA-65 [Round type] Bare crimp terminal
EA538MA-66 [Round type] Bare crimp terminal
EA538MA-67 [Round type] Bare crimp terminal
EA538MA-68 [Round type] Bare crimp terminal
EA538MA-69 [Round type] Bare crimp terminal
EA538MA-70 [Round type] Bare crimp terminal
EA538MA-71 [Round type] Bare crimp terminal
EA538MA-72 [Round type] Bare crimp terminal
EA538MA-74 [Round type] Bare crimp terminal
EA538MA-75 [Round type] Bare crimp terminal
EA538MA-76 [Round type] Bare crimp terminal
EA538MA-77 [Round type] Bare crimp terminal
EA538MA-79 [Round type] Bare crimp terminal
EA538MA-80 [Round type] Bare crimp terminal
EA538MA-81 [Round type] Bare crimp terminal
Web catalog image
Expanding
  • Prev
  • Next

Documents

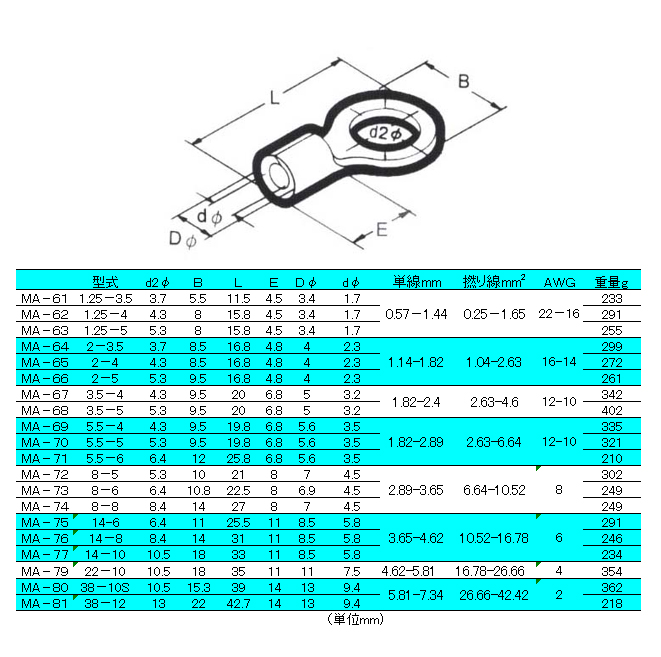

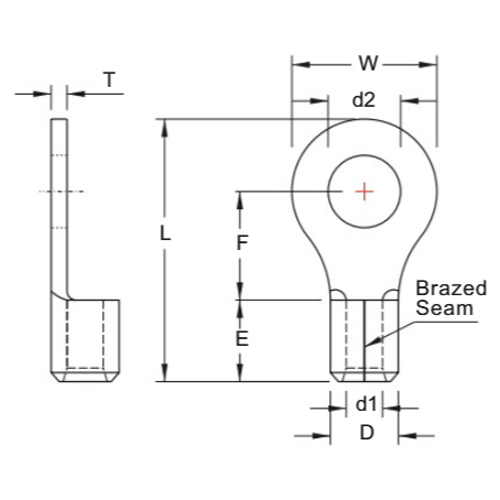

ESCO dimentional drawing
