Item# : EA638NM-6

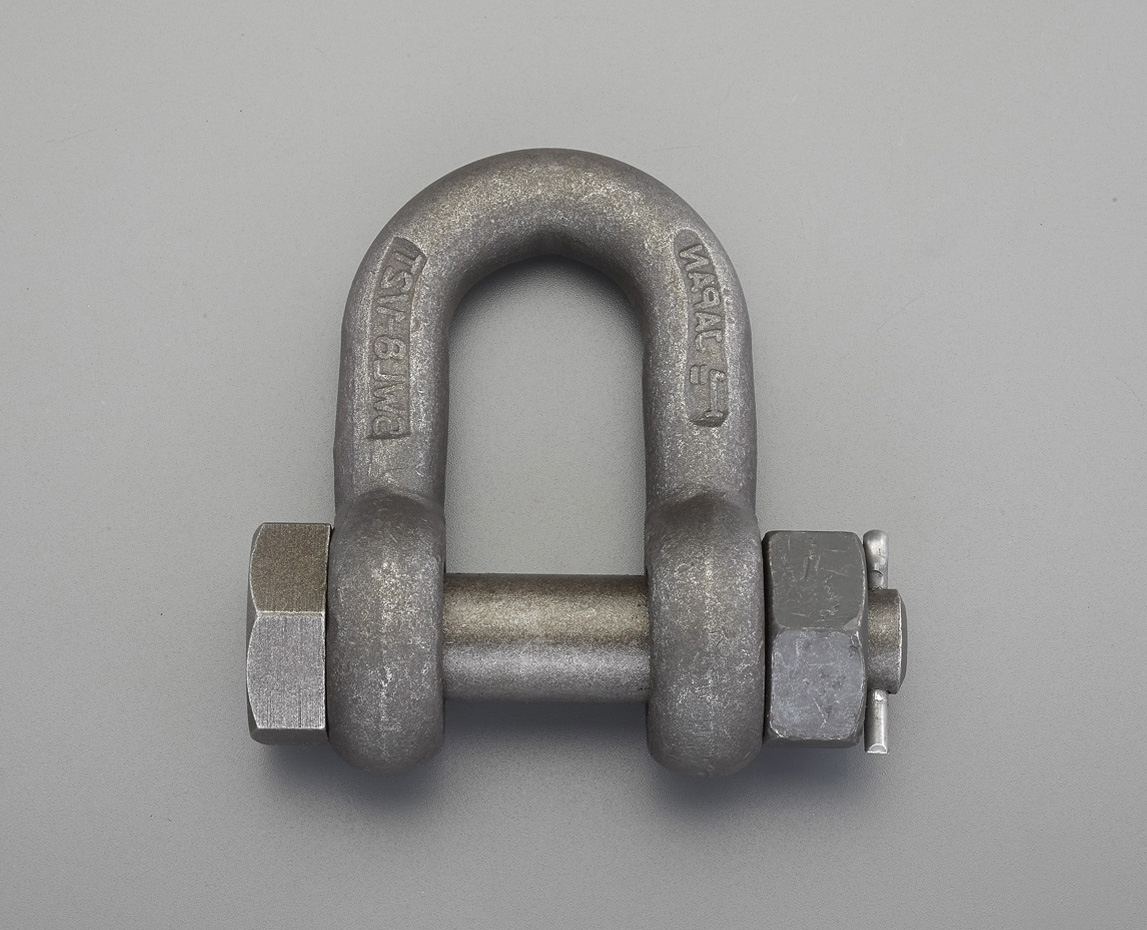

Description : Heavy-Duty Shackle

Spec

Material S45C
 Split pin material Iron (SWRM6-17, SWCH6-17R)
Usage Load (t) 9.5
 size D1(mm) 28
size D2(mm) 32
 size B(mm) 46
size L(mm) 91
 Weight 3.38kg
Additional explanation
Catalog Price (JPY)

¥ 13,400 （Excluding tax）／¥ 14,740（Tax including）

Quantity of stock

Latest stock：2

（2024/11/01 08:04 Currently）

Update
Catalog Page Page 1824
