Item# : EA948CJ-13

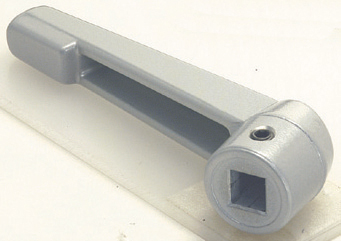

Description : Fixed Lever （Corner Hole ）

Spec

Material Ｚinc Die-Cast (ZDC1)
Rohs-Compliant
size (mm) Corner Hole ：8×8×18
R：80
H：45
d：21.5
Stop Hole ：M5×0.8
Additional explanation
Catalog Price (JPY)

¥ 1,860 （Excluding tax）／¥ 2,046（Tax including）

Quantity of stock

Latest stock：10

（2024/04/29 19:20 Currently）

Update
Catalog Page Page 1273
Relational Items
EA948CJ-11 Fixed Lever （Corner Hole ）
EA948CJ-12 Fixed Lever （Corner Hole ）
EA948CJ-13 Fixed Lever （Corner Hole ）
EA948CJ-14 Fixed Lever （Corner Hole ）
EA948CJ-15 Fixed Lever （Corner Hole ）

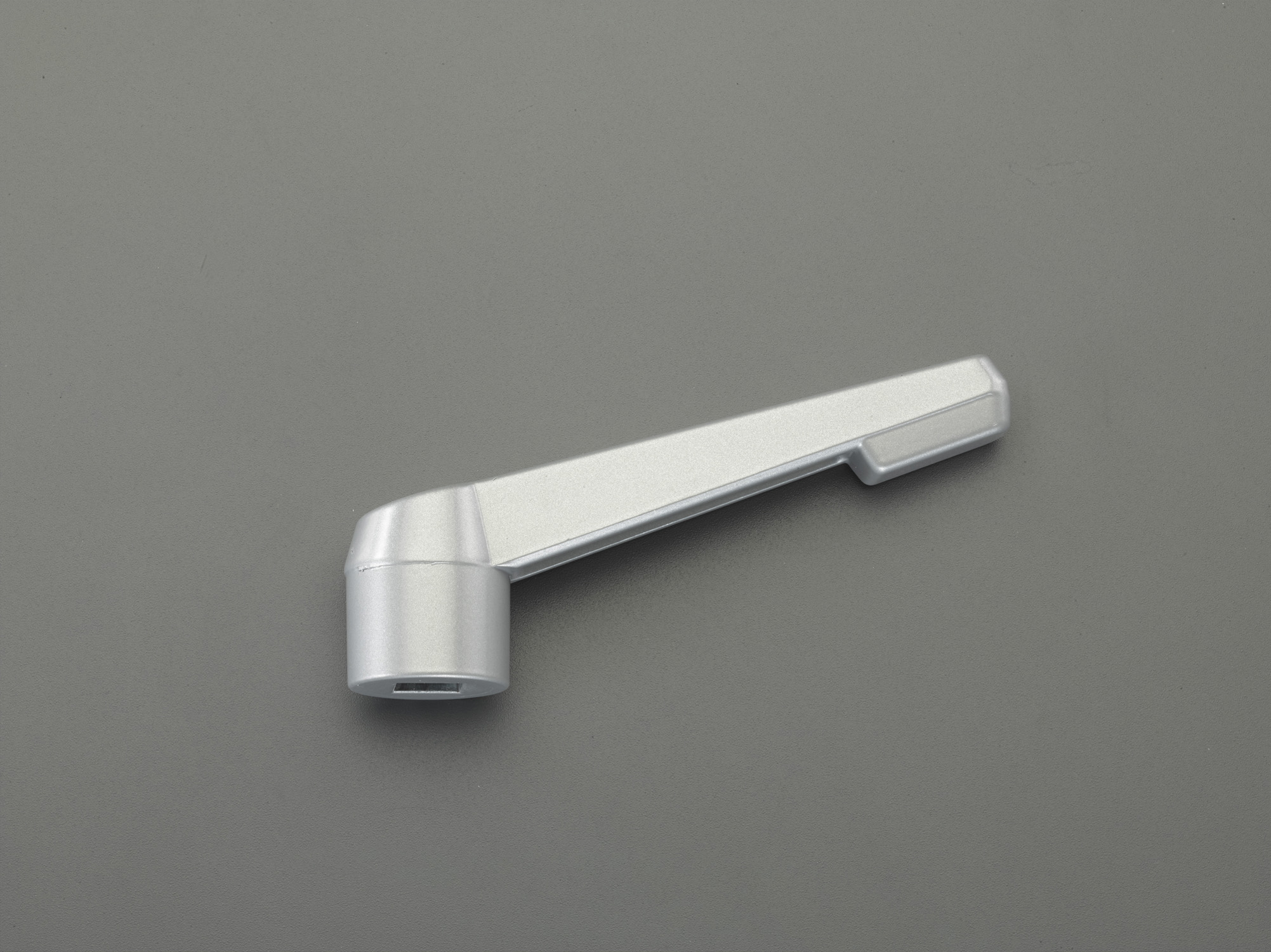

Web catalog image
