Item# : EA948CJ-14

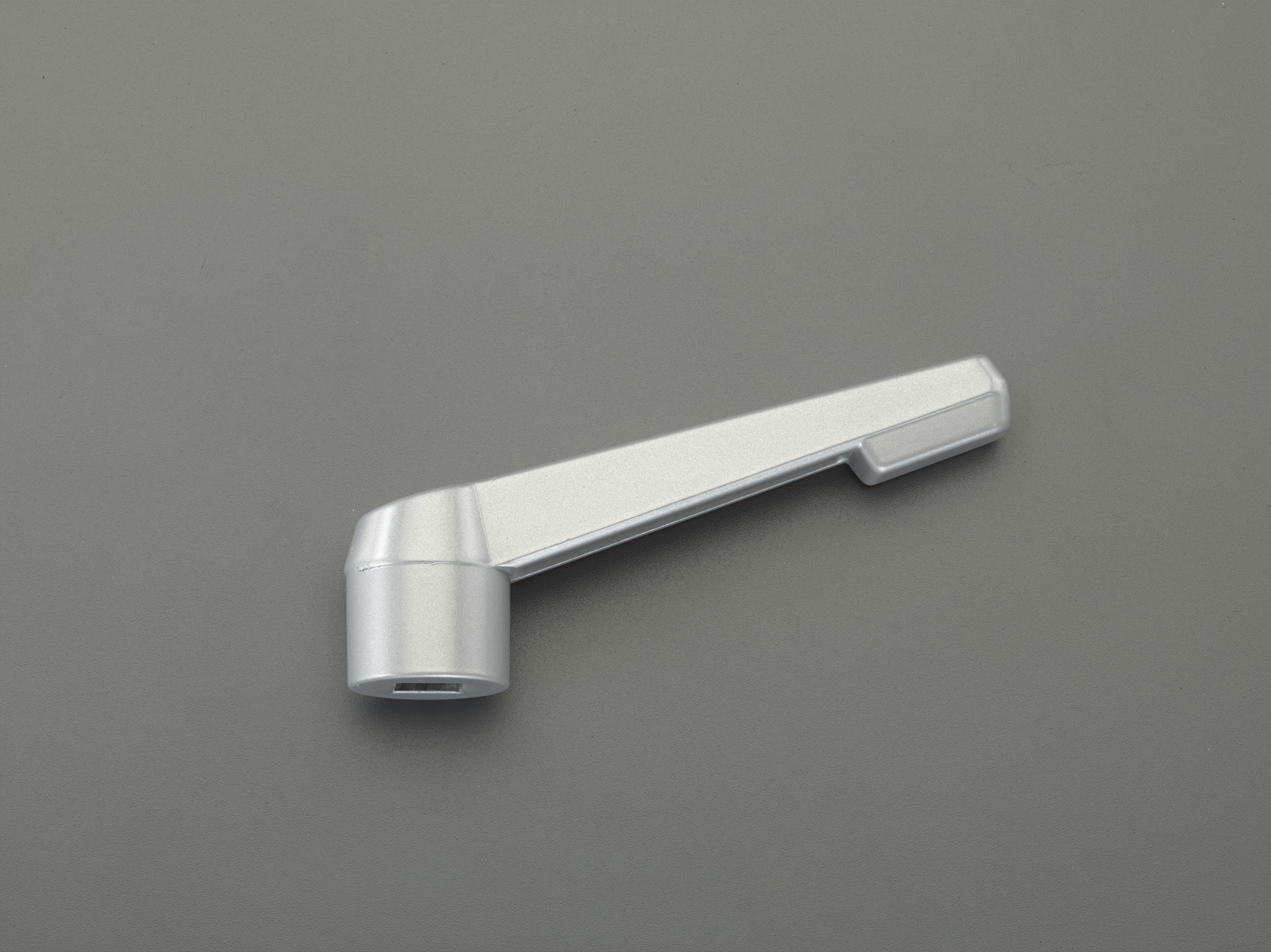

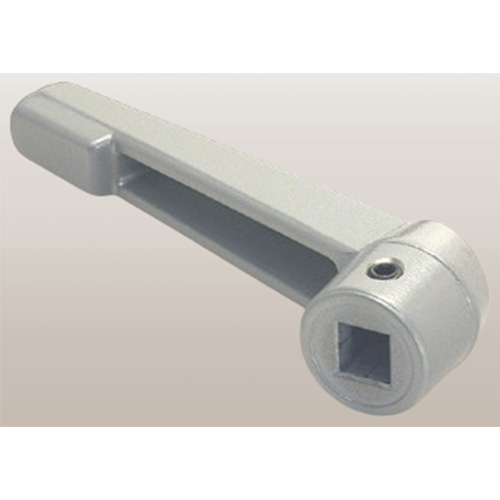

Description : Fixed Lever （Corner Hole ）

Spec

Material Ｚinc Die-Cast (ZDC1)
Rohs-Compliant
size (mm) Corner Hole ：10×10×20
R：95
H：54
d：25.5
Stop Hole ：M5×0.8
Additional explanation
Catalog Price (JPY)

¥ 2,350 （Excluding tax）／¥ 2,585（Tax including）

Quantity of stock

Latest stock：1

（2025/05/10 10:46 Currently）

Update
Catalog Page Page 1257
Relational Items
EA948CJ-11 Fixed Lever （Corner Hole ）
EA948CJ-12 Fixed Lever （Corner Hole ）
EA948CJ-13 Fixed Lever （Corner Hole ）
EA948CJ-14 Fixed Lever （Corner Hole ）
EA948CJ-15 Fixed Lever （Corner Hole ）
Web catalog image
Expanding
  • Prev
  • Next

Documents

ESCO dimentional drawing
  1. IMG

Note : Please read it before having you purchase item.

  • Esco label
    ＜About item＞

    Esco label with bar code is put on the handling pruducts (Excluding part of direct product from manufacture). A product becomes the change of specifications and the abolished turn without a notice by model change and improvement circumstances.

  • ＜About size＞

    The value of indication includes an error.Please select with margin.

  • ＜About color＞

    About the color of the publication product, it is a little different from a real color.

  • ＜About an expense of heavy product＞

    It is requested about assembling, insrallation and installation separately.
