Item# : EA948CJ-15

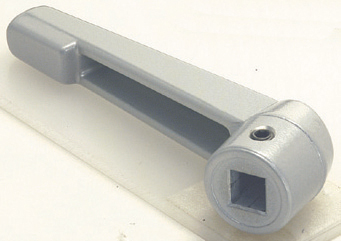

Description : Fixed Lever （Corner Hole ）

Spec

Material Ｚinc Die-Cast (ZDC1)
Rohs-Compliant
size (mm) Corner Hole ：12×12×26
R：110
H：63
d：30.5
Stop Hole ：M5×0.8
Additional explanation
Catalog Price (JPY)

¥ 3,040 （Excluding tax）／¥ 3,344（Tax including）

Quantity of stock

Latest stock：2

（2025/05/10 10:48 Currently）

Update
Catalog Page Page 1257
Relational Items
EA948CJ-11 Fixed Lever （Corner Hole ）
EA948CJ-12 Fixed Lever （Corner Hole ）
EA948CJ-13 Fixed Lever （Corner Hole ）
EA948CJ-14 Fixed Lever （Corner Hole ）
EA948CJ-15 Fixed Lever （Corner Hole ）

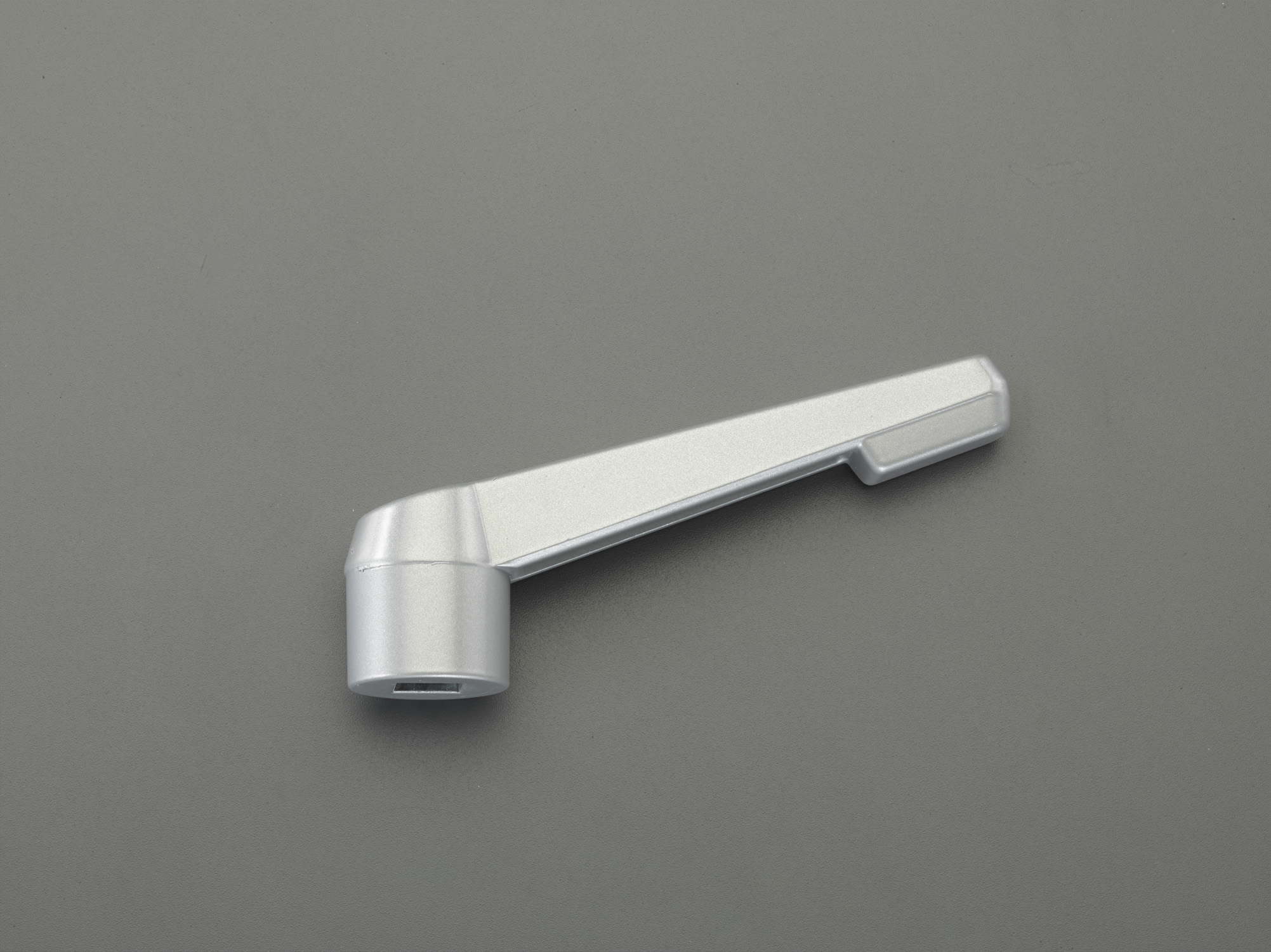

Web catalog image
