Item# : EA949RS-1

Description : Switch Dock（Cone Type ）

Spec

Conical type
Material S45C(Ferrosoferric oxide coating film )

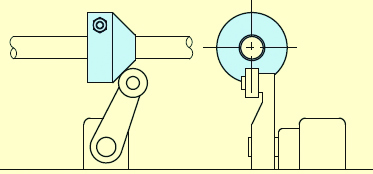

Limiter switch lever action
The size (mm) D：25、L：22
 The angle 30°
Thread Dia M8×1.25
Additional explanation
Catalog Price (JPY)

¥ 1,020 （Excluding tax）／¥ 1,122（Tax including）

Quantity of stock

Latest stock：4

（2025/10/24 07:34 Currently）

Update
Catalog Page Page 1237
