Item# : EA949RS-4

Description : Switch Dock（Cone Type ）

Spec

Conical type
Material S45C(Ferrosoferric oxide coating film )
Limiter switch lever action
The size (mm) D：40、L：33
 The angle 30°
Thread Dia M16×2
Additional explanation
Catalog Price (JPY)

¥ 1,410 （Excluding tax）／¥ 1,551（Tax including）

Quantity of stock

Latest stock：3

（2025/05/02 19:39 Currently）

Update
Catalog Page Page 1237
Relational Items
EA949RS-1 Switch Dock（Cone Type ）
EA949RS-2 Switch Dock（Cone Type ）
EA949RS-3 Switch Dock（Cone Type ）
EA949RS-4 Switch Dock（Cone Type ）
EA949RS-11 Switch Dock（Cone Type ）
EA949RS-12 Switch Dock（Cone Type ）
EA949RS-13 Switch Dock（Cone Type ）
EA949RS-14 Switch Dock（Cone Type ）
Web catalog image
Expanding
  • Prev
  • Next

Documents

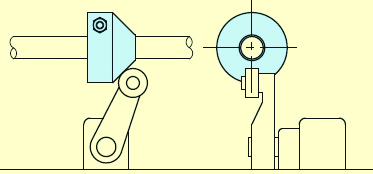

How to use
  1. IMG
ESCO dimentional drawing
