Item# : EA949RS-11

Description : Switch Dock（Cone Type ）

Spec

Conical type
Material S45C(Ferrosoferric oxide coating film )
Limiter switch lever action
The size (mm) D：25、L：18
 The angle 45°
Thread Dia M8×1.25
Additional explanation
Catalog Price (JPY)

¥ 850 （Excluding tax）／¥ 935（Tax including）

Quantity of stock

Latest stock：2

（2025/05/03 07:12 Currently）

Update
Catalog Page Page 1237
Relational Items
EA949RS-1 Switch Dock（Cone Type ）
EA949RS-2 Switch Dock（Cone Type ）
EA949RS-3 Switch Dock（Cone Type ）
EA949RS-4 Switch Dock（Cone Type ）
EA949RS-11 Switch Dock（Cone Type ）
EA949RS-12 Switch Dock（Cone Type ）
EA949RS-13 Switch Dock（Cone Type ）
EA949RS-14 Switch Dock（Cone Type ）
Web catalog image
Expanding
  • Prev
  • Next

Documents

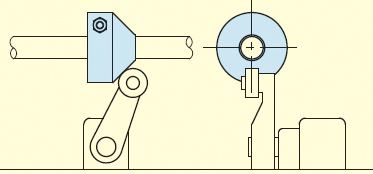

How to use
  1. IMG
ESCO dimentional drawing
