Item# : EA986GF-100

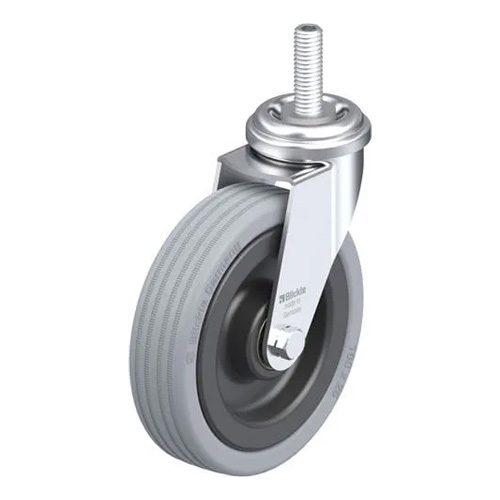

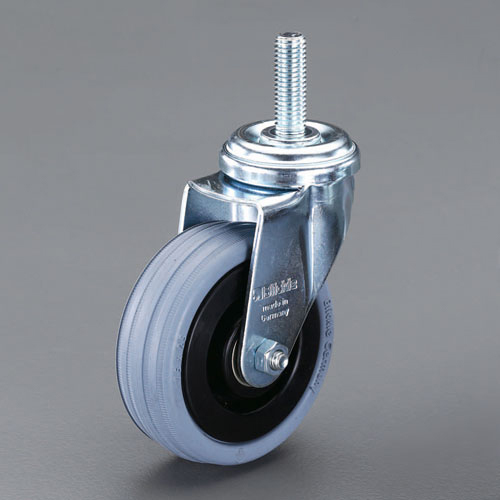

Description : Screw-type Swivel Caster
Spec
| Heat-proof temperature: -20 to 60℃ |
|||
| Screw dim.-M10 x 30mm |
|||
| Screw pitch | 1.5 |
||
|---|---|---|---|

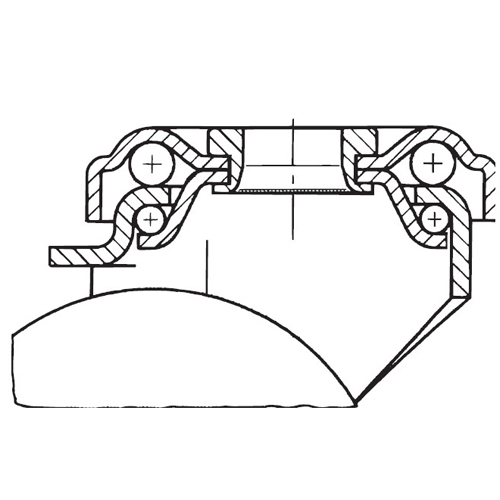

| Swivel casters |
|||

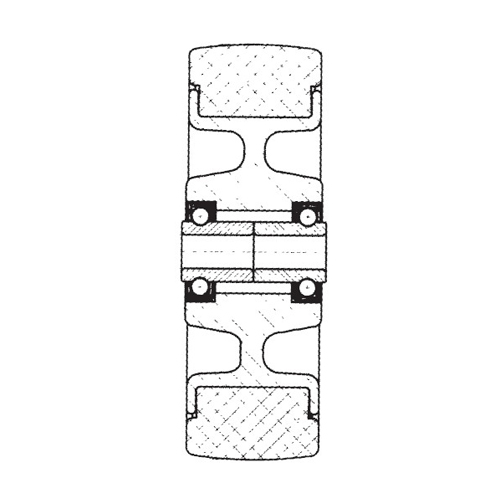

| Ball bearing |
|||
| Material-Fitting: steel， Wheel: solid rubber |
|||
| Specification | Swivel， without brake |
Wheel dia. x Width | 100 x 25mm |

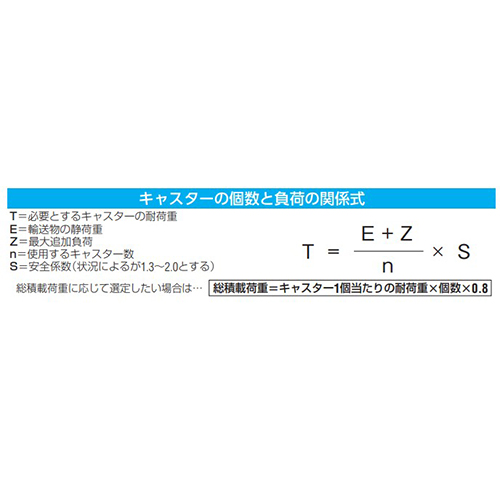

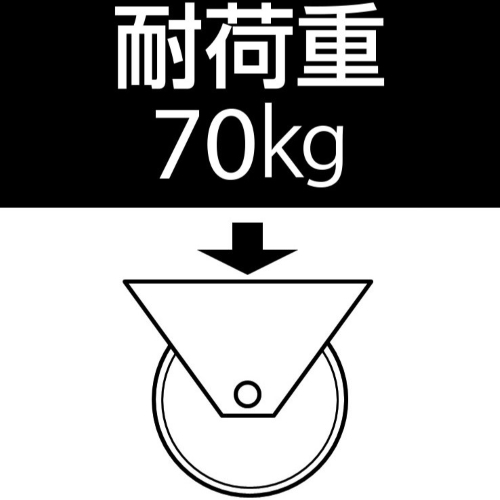

| Load capacity | 70kg |
Overall height | 121mm |
| Additional explanation |
|
|---|
| Catalog Price (JPY) |
¥ 3,400 （Excluding tax）／¥ 3,740（Tax including） |
||||
|---|---|---|---|---|---|
| Quantity of stock |
Latest stock：36 （2024/05/12 22:43 Currently）
|
||||
| Catalog Page | Page 1753 | ||||
| Relational Items |
|---|
| EA986GF-50 Screw-type Swivel Caster |
| EA986GF-75 Screw-type Swivel Caster |
| EA986GF-100 Screw-type Swivel Caster |
Web catalog image
Expanding
.jpg "Web catalog image")
.jpg "Sub image")
.jpg "Sub image")
.jpg "Sub image")
.jpg "Sub image")
.jpg "Sub image")
.jpg "Sub image")
.jpg "Sub image")
.jpg "Sub image")
.jpg "ESCO dimentional drawing")
.jpg "ESCO dimentional drawing")
Documents
| ESCO dimentional drawing |
|
|---|---|
| RoHS |
|
| Catalog |
|
