Product Detail

Item# : EA637BE-22

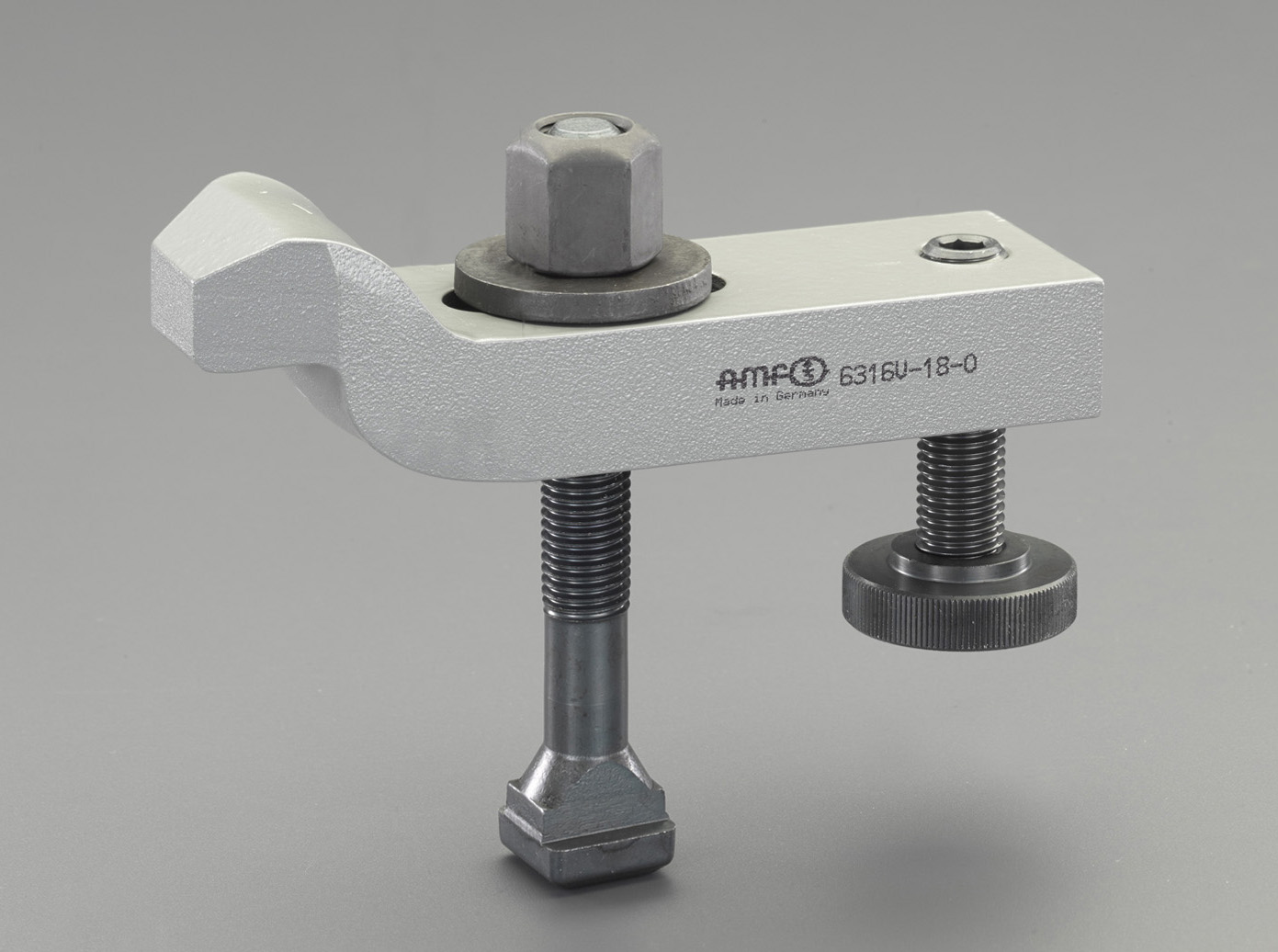

Description : Cranked clamp with support screw (with main screw)

Spec

Material	Hardened Steel
Size H depends on the depth of the groove and the position of the fixing nut.
A	30mm	B	60mm
C	200mm	H	43 to 92mm
Clamp Screw	M20x22x160	Supporting Screw	M20x69

Additional explanation

Catalog Price (JPY)	¥ 19,000 （Excluding tax）／¥ 20,900（Tax including）
Quantity of stock	Latest stock：1 （2024/06/11 11:20 Currently）
Catalog Page	Page 0681
