Item# : EA948AJ-4

Description : ［Round Limb Type］Handle

This product is no longer available. Please refer to replacement item below.

Spec

Material Handle Car ：Polypropylene 、
Insertion ：FCMaterial 、
Grip ：Polyamide
It is a shaft hole unprocessed part of the handle mounting part (figure: D side).
Rohs-Compliant
size (mm) D：160、H：54、
H1：84、d1：28、
L：34
Additional explanation
Catalog Price (JPY)

¥ 3,040 （Excluding tax）／¥ 3,344（Tax including）

Quantity of stock

Latest stock：0

（2025/12/10 13:57 Currently）

Update
Catalog Page Page 1256
Relational Items
EA948AJ-1 ［Round Limb Type］Handle
EA948AJ-2 ［Round Limb Type］Handle
EA948AJ-3 ［Round Limb Type］Handle
EA948AJ-4 ［Round Limb Type］Handle
EA948AJ-5 ［Round Limb Type］Handle
EA948AJ-6 ［Round Limb Type］Handle
EA948AJ-7 ［Round Limb Type］Handle

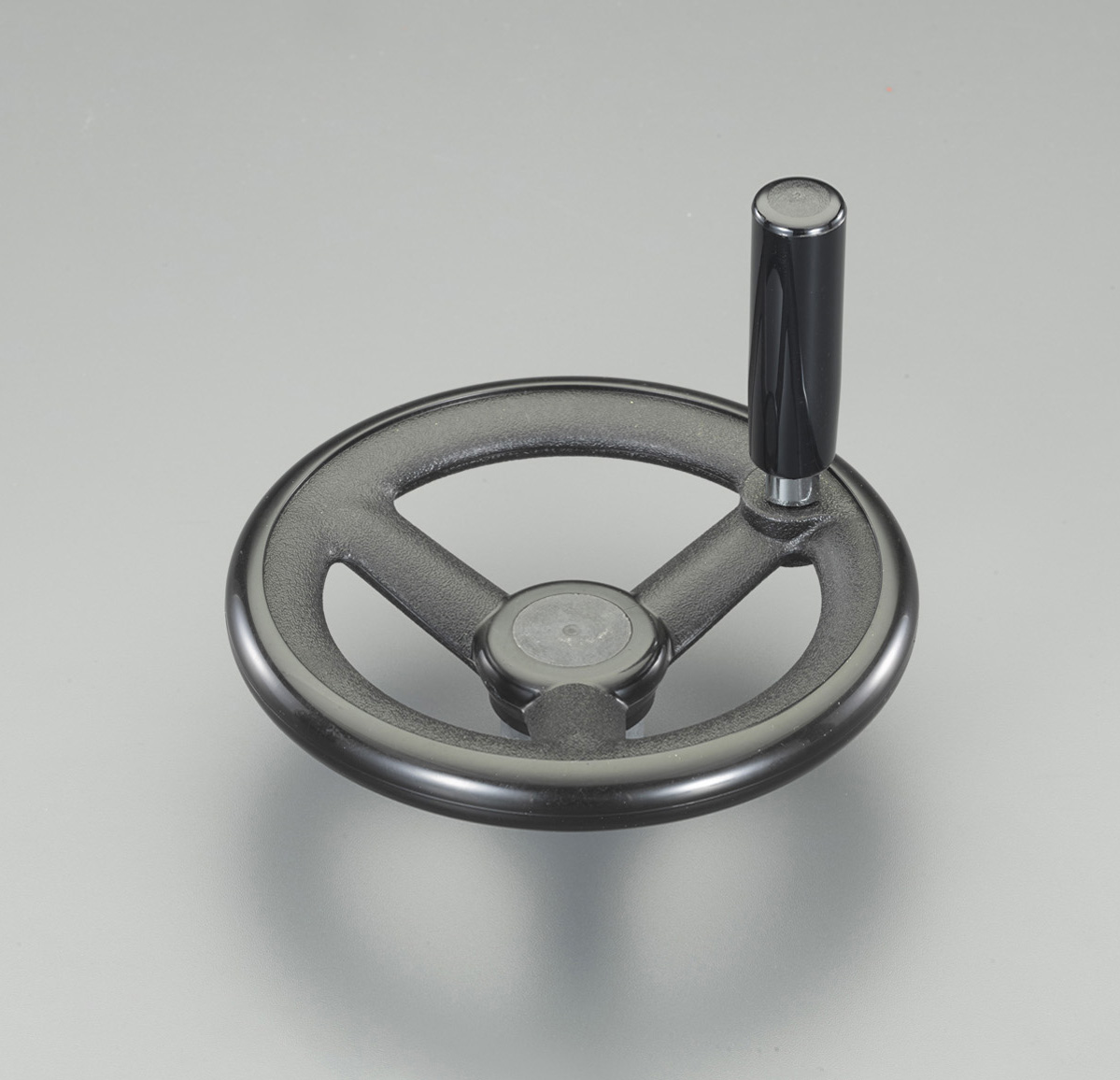

Web catalog image
Expanding
  • Prev
  • Next

Documents

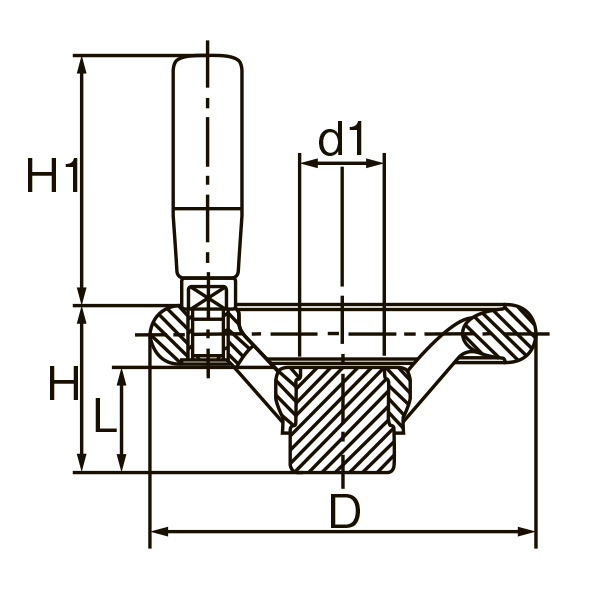

ESCO dimentional drawing
