Item# : EA948AT-1

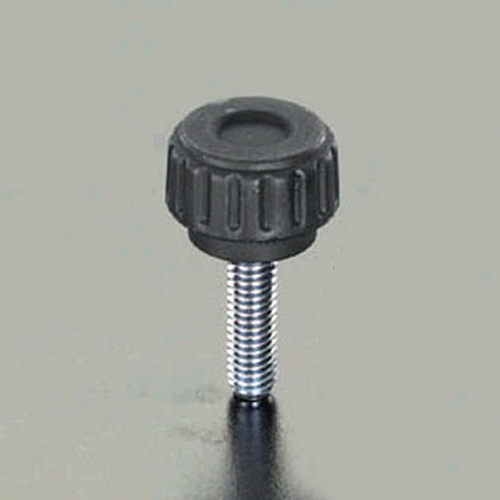

Description : Dimple Knob Male Thread

Spec

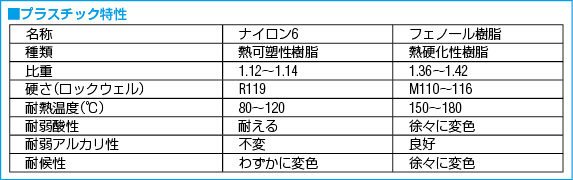

Material-Knob: nylon 6
Male thread: SWCH10R (Trivalent chromate processing )
Screw M3 x 10
Size(mm) D:16、H:11、s:2、
d:11、Lm:10
Additional explanation
Catalog Price (JPY)

¥ 340 (Excluding tax)/¥ 374(Tax including)

Quantity of stock

Latest stock:12

(2024/05/02 12:42 Currently)

Update
Catalog Page Page 1269
Relational Items
EA948AT-1 Dimple Knob Male Thread
EA948AT-2 Dimple Knob Male Thread
EA948AT-3 Dimple Knob Male Thread
EA948AT-4 Dimple Knob Male Thread
EA948AT-5 Dimple Knob Male Thread
EA948AT-6 Dimple Knob Male Thread
EA948AT-7 Dimple Knob Male Thread
EA948AT-8 Dimple Knob Male Thread
EA948AT-9 Dimple Knob Male Thread
EA948AT-10 Dimple Knob Male Thread
EA948AT-11 Dimple Knob Male Thread
EA948AT-13 Dimple Knob Male Thread
Web catalog image

Documents

Specification
  1. PDF
Catalog
  1. PDF

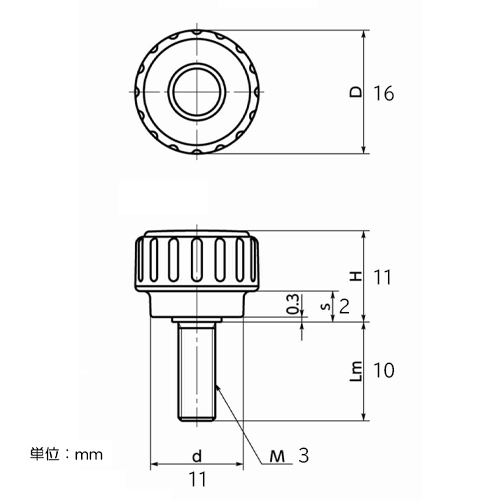

ESCO dimentional drawing
  1. IMG
