Item# : EA948AT-13

Description : Dimple Knob Male Thread

Spec

Material-Knob: nylon 6
Male thread: SWCH10R (Trivalent chromate processing)
Screw M8 x 20
 Size(mm) D：25、H：18、s：6、
d：19、Lm：20
Additional explanation
Catalog Price (JPY)

¥ 440 （Excluding tax）／¥ 484（Tax including）

Quantity of stock

Latest stock：6

（2025/05/10 10:48 Currently）

Update
Catalog Page Page 1254
Relational Items
EA948AT-1 Dimple Knob Male Thread
EA948AT-2 Dimple Knob Male Thread
EA948AT-3 Dimple Knob Male Thread
EA948AT-4 Dimple Knob Male Thread
EA948AT-5 Dimple Knob Male Thread
EA948AT-6 Dimple Knob Male Thread
EA948AT-7 Dimple Knob Male Thread
EA948AT-8 Dimple Knob Male Thread
EA948AT-9 Dimple Knob Male Thread
EA948AT-10 Dimple Knob Male Thread
EA948AT-11 Dimple Knob Male Thread
EA948AT-13 Dimple Knob Male Thread

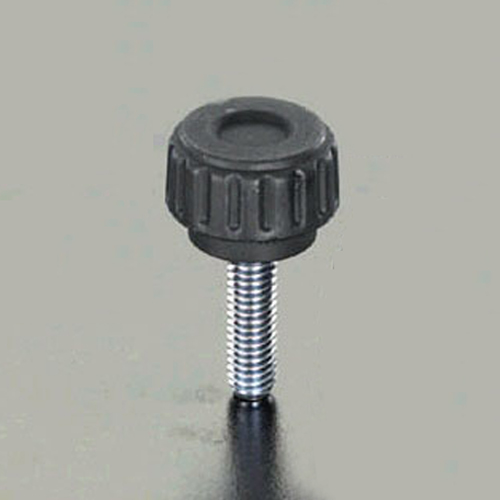

Web catalog image
Expanding
  • Prev
  • Next

Documents

Specification
  1. PDF
Catalog
  1. PDF

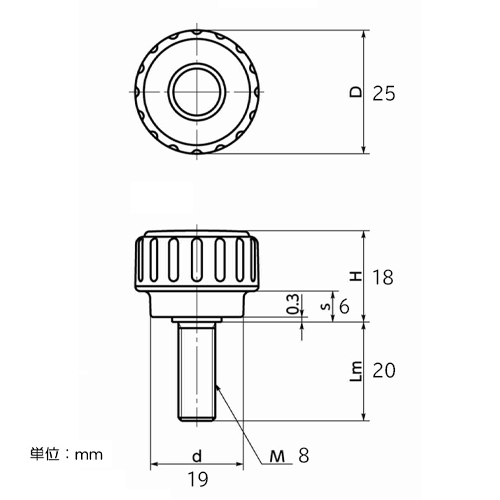

ESCO dimentional drawing
