Item# : EA948AT-3

Description : Dimple Knob Male Thread

Spec

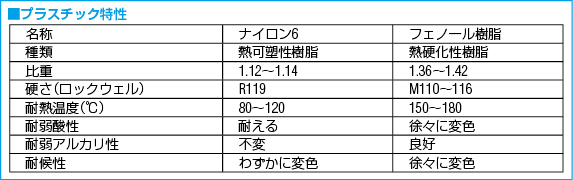

Material-Knob: nylon 6
Male thread: SWCH10R (Trivalent chromate processing )
Screw M4 x 10
 Size(mm) D：16、H：11、s：2、
d：11、Lm：10
Additional explanation
Catalog Price (JPY)

¥ 300 （Excluding tax）／¥ 330（Tax including）

Quantity of stock

Latest stock：23

（2025/05/10 10:37 Currently）

Update
Catalog Page Page 1254
Relational Items
EA948AT-1 Dimple Knob Male Thread
EA948AT-2 Dimple Knob Male Thread
EA948AT-3 Dimple Knob Male Thread
EA948AT-4 Dimple Knob Male Thread
EA948AT-5 Dimple Knob Male Thread
EA948AT-6 Dimple Knob Male Thread
EA948AT-7 Dimple Knob Male Thread
EA948AT-8 Dimple Knob Male Thread
EA948AT-9 Dimple Knob Male Thread
EA948AT-10 Dimple Knob Male Thread
EA948AT-11 Dimple Knob Male Thread
EA948AT-13 Dimple Knob Male Thread

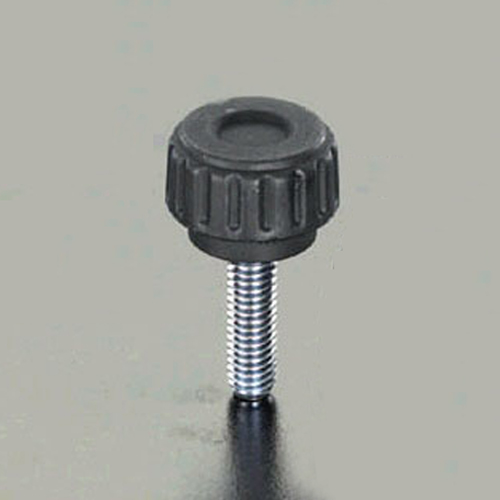

Web catalog image
Expanding
  • Prev
  • Next

Documents

Specification
  1. PDF
Catalog
  1. PDF

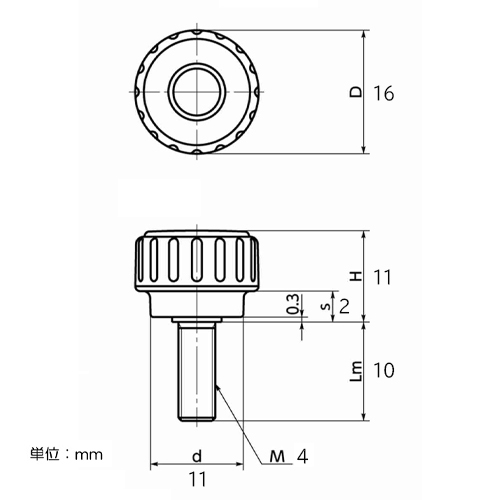

ESCO dimentional drawing
