Item# : EA948AT-11

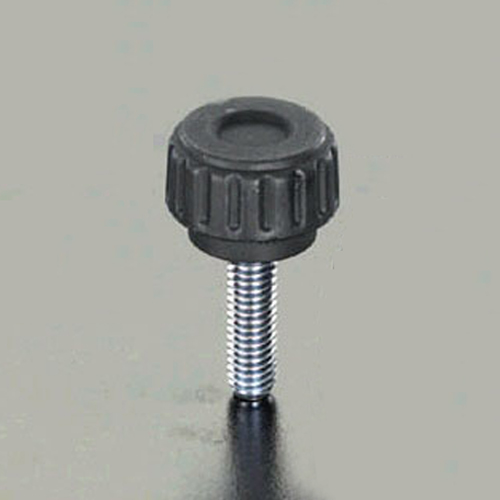

Description : Dimple Knob Male Thread

Spec

Material-Knob: nylon 6
Male thread: SWCH10R (Trivalent chromate processing)
Screw M6 x 25
 Size(mm) D：25、H：18、s：6、
d：19、Lm：25
Additional explanation
Catalog Price (JPY)

¥ 355 （Excluding tax）／¥ 391（Tax including）

Quantity of stock

Latest stock：18

（2025/05/10 10:46 Currently）

Update
Catalog Page Page 1254
Relational Items
EA948AT-1 Dimple Knob Male Thread
EA948AT-2 Dimple Knob Male Thread
EA948AT-3 Dimple Knob Male Thread
EA948AT-4 Dimple Knob Male Thread
EA948AT-5 Dimple Knob Male Thread
EA948AT-6 Dimple Knob Male Thread
EA948AT-7 Dimple Knob Male Thread
EA948AT-8 Dimple Knob Male Thread
EA948AT-9 Dimple Knob Male Thread
EA948AT-10 Dimple Knob Male Thread
EA948AT-11 Dimple Knob Male Thread
EA948AT-13 Dimple Knob Male Thread
Web catalog image
Expanding
  • Prev
  • Next

Documents

Specification
  1. PDF
Catalog
  1. PDF

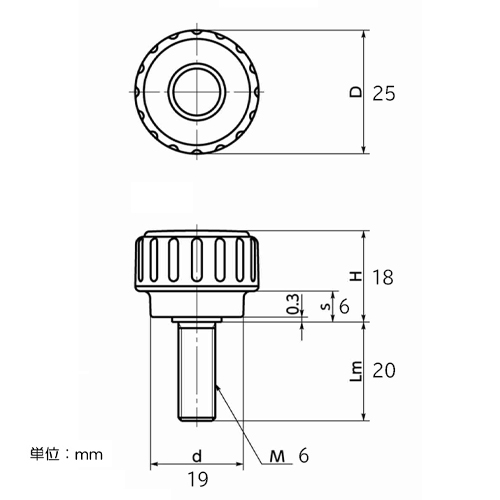

ESCO dimentional drawing
  1. IMG

Note : Please read it before having you purchase item.

  • Esco label
    ＜About item＞

    Esco label with bar code is put on the handling pruducts (Excluding part of direct product from manufacture). A product becomes the change of specifications and the abolished turn without a notice by model change and improvement circumstances.

  • ＜About size＞

    The value of indication includes an error.Please select with margin.

  • ＜About color＞

    About the color of the publication product, it is a little different from a real color.

  • ＜About an expense of heavy product＞

    It is requested about assembling, insrallation and installation separately.
