Item# : EA638NN-2

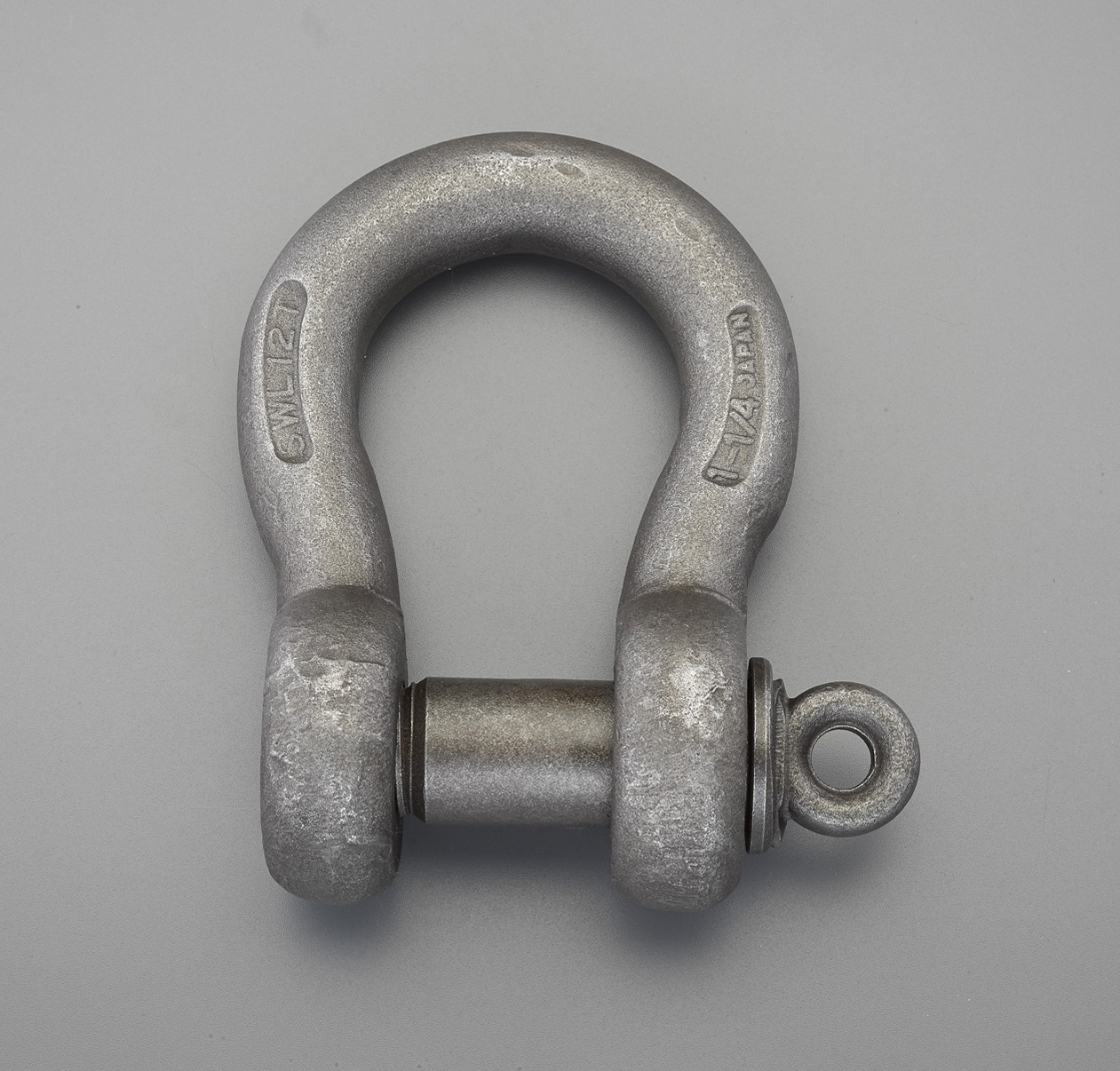

Description : Heavy-Duty Bow Shackle

Spec

Material S45C
 Usage Load (t) 3.25
size D1(mm) 16
 size D2(mm) 19
size B(mm) 27
 size L(mm) 61
Weight 630g
Additional explanation
Catalog Price (JPY)

¥ 3,000 （Excluding tax）／¥ 3,300（Tax including）

Quantity of stock

Latest stock：1

（2025/05/01 16:55 Currently）

Update
Catalog Page Page 1807
Relational Items
EA638NN-1 Heavy-Duty Bow Shackle
EA638NN-2 Heavy-Duty Bow Shackle
EA638NN-3 Heavy-Duty Bow Shackle
EA638NN-4 Heavy-Duty Bow Shackle
EA638NN-5 Heavy-Duty Bow Shackle
EA638NN-6 Heavy-Duty Bow Shackle
EA638NN-7 Heavy-Duty Bow Shackle
EA638NN-8 Heavy-Duty Bow Shackle
EA638NN-9 Heavy-Duty Bow Shackle
Web catalog image
Expanding
  • Prev
  • Next

Documents

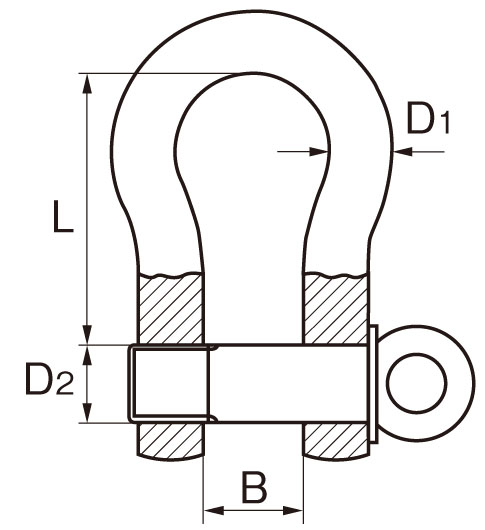

ESCO dimentional drawing
