Item# : EA638NN-5

Description : Heavy-Duty Bow Shackle

Spec

Material S45C
 Usage Load (t) 8.5
size D1(mm) 25
 size D2(mm) 28
size B(mm) 43
 size L(mm) 96
Weight 4.44kg
Additional explanation
Catalog Price (JPY)

¥ 7,520 （Excluding tax）／¥ 8,272（Tax including）

Quantity of stock

Latest stock：1

（2025/11/06 18:28 Currently）

Update
Catalog Page Page 1807
Relational Items
EA638NN-1 Heavy-Duty Bow Shackle
EA638NN-2 Heavy-Duty Bow Shackle
EA638NN-3 Heavy-Duty Bow Shackle
EA638NN-4 Heavy-Duty Bow Shackle
EA638NN-5 Heavy-Duty Bow Shackle
EA638NN-6 Heavy-Duty Bow Shackle
EA638NN-7 Heavy-Duty Bow Shackle
EA638NN-8 Heavy-Duty Bow Shackle
EA638NN-9 Heavy-Duty Bow Shackle

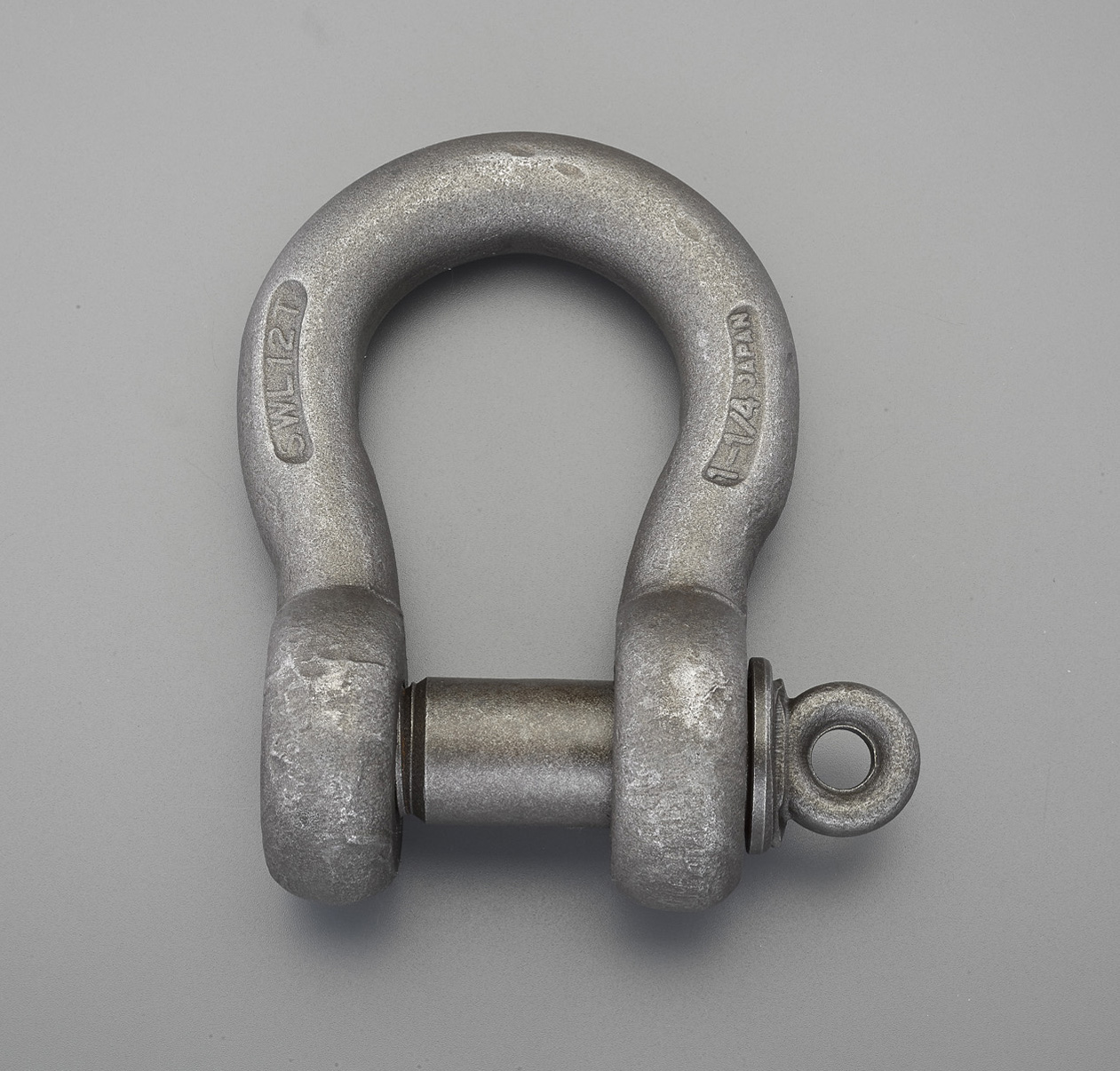

Web catalog image
Expanding
  • Prev
  • Next

Documents

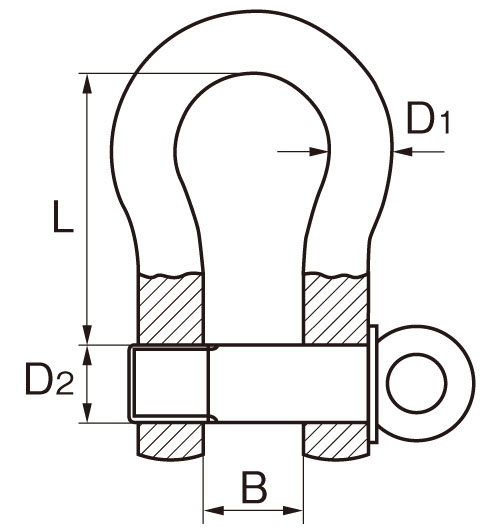

ESCO dimentional drawing
