Item# : EA638NN-7

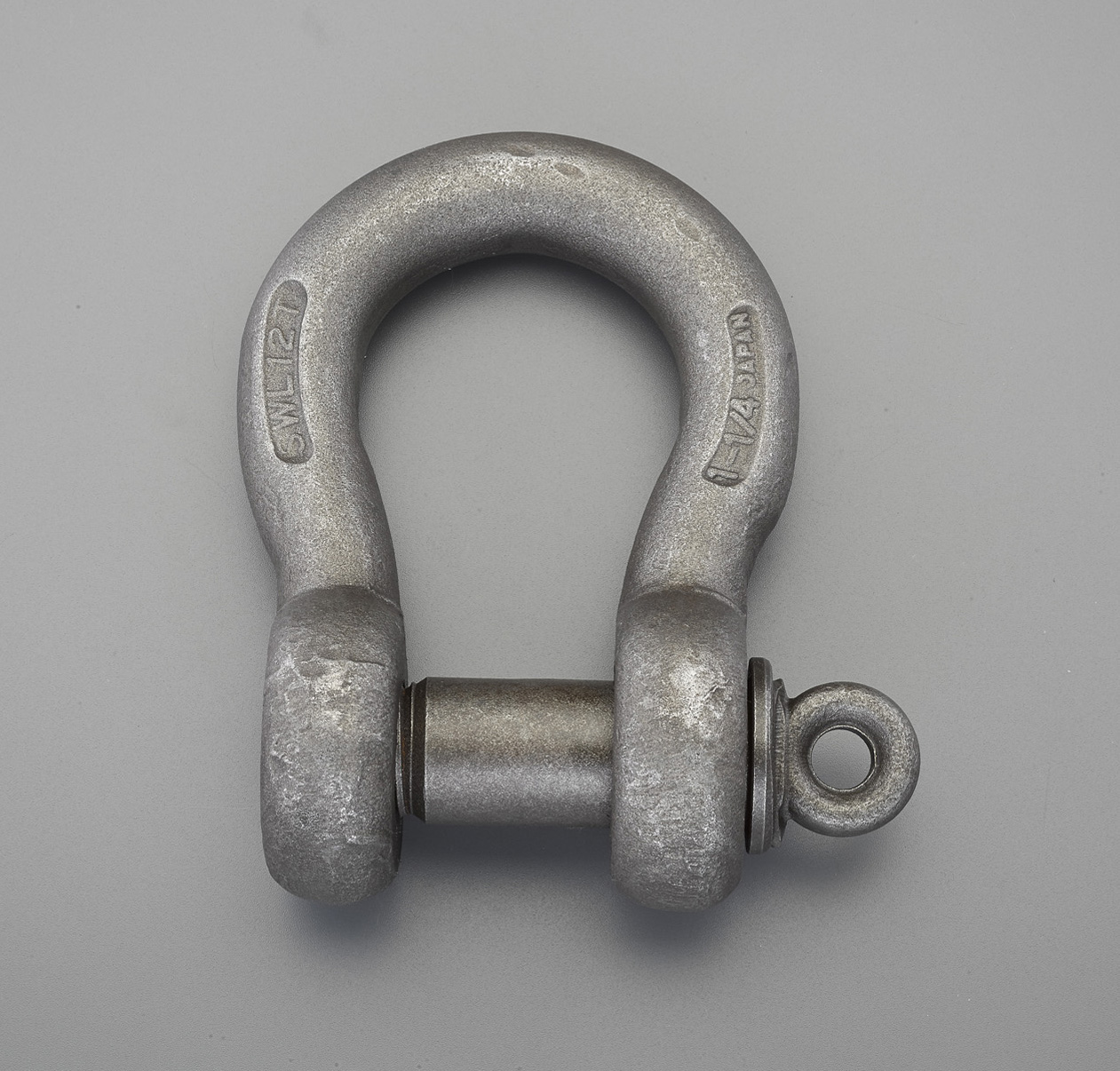

Description : Heavy-Duty Bow Shackle

Spec

Material S45C
 Usage Load (t) 12
size D1(mm) 32
 size D2(mm) 36
size B(mm) 52
 size L(mm) 119
Weight 2.16kg
Additional explanation
Catalog Price (JPY)

¥ 19,900 （Excluding tax）／¥ 21,890（Tax including）

Quantity of stock

Latest stock：0

（2024/06/12 05:16 Currently）

Update
Catalog Page Page 1824
Relational Items
EA638NN-1 Heavy-Duty Bow Shackle
EA638NN-2 Heavy-Duty Bow Shackle
EA638NN-3 Heavy-Duty Bow Shackle
EA638NN-4 Heavy-Duty Bow Shackle
EA638NN-5 Heavy-Duty Bow Shackle
EA638NN-6 Heavy-Duty Bow Shackle
EA638NN-7 Heavy-Duty Bow Shackle
EA638NN-8 Heavy-Duty Bow Shackle
EA638NN-9 Heavy-Duty Bow Shackle
Web catalog image
Expanding
  • Prev
  • Next

Documents

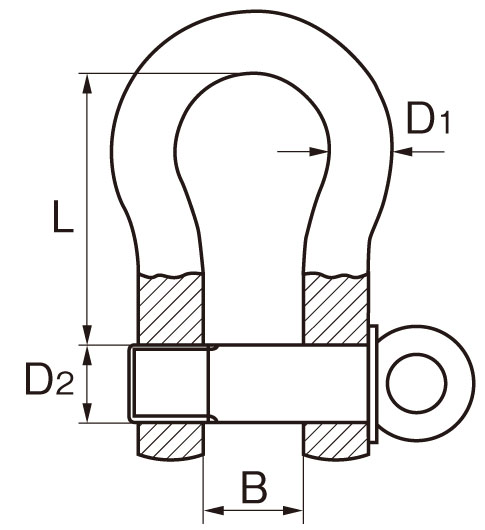

ESCO dimentional drawing
