Item# : EA638NN-3

Description : Heavy-Duty Bow Shackle

Spec

Material S45C
 Usage Load (t) 4.75
size D1(mm) 19
 size D2(mm) 22
size B(mm) 32
 size L(mm) 72
Weight 1.02kg
Additional explanation
Catalog Price (JPY)

¥ 4,160 （Excluding tax）／¥ 4,576（Tax including）

Quantity of stock

Latest stock：1

（2026/01/12 06:08 Currently）

Update
Catalog Page Page 1758
Relational Items
EA638NN-1 Heavy-Duty Bow Shackle
EA638NN-2 Heavy-Duty Bow Shackle
EA638NN-3 Heavy-Duty Bow Shackle
EA638NN-4 Heavy-Duty Bow Shackle
EA638NN-5 Heavy-Duty Bow Shackle
EA638NN-6 Heavy-Duty Bow Shackle
EA638NN-7 Heavy-Duty Bow Shackle
EA638NN-8 Heavy-Duty Bow Shackle
EA638NN-9 Heavy-Duty Bow Shackle

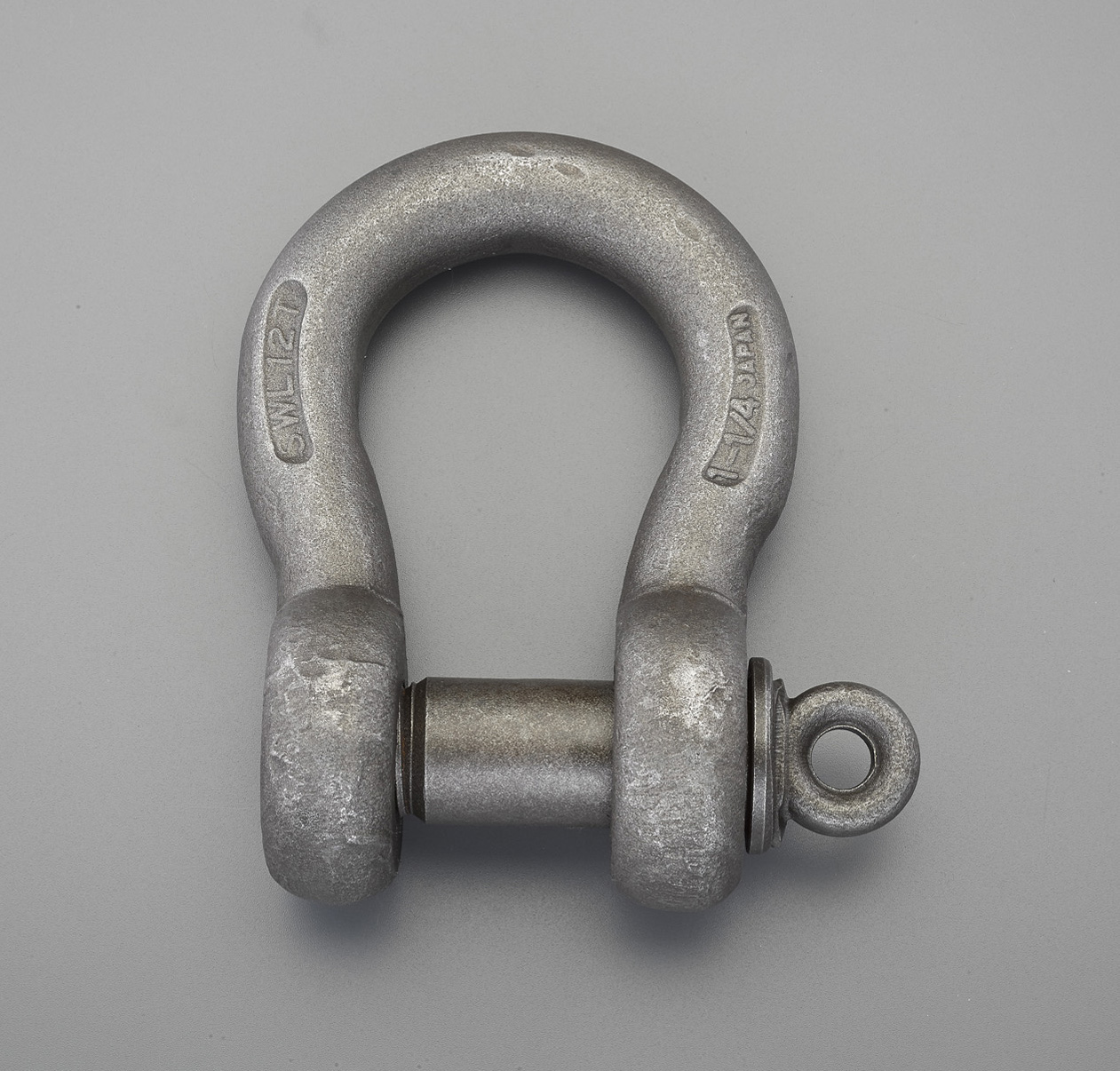

Web catalog image
Expanding
  • Prev
  • Next

Documents

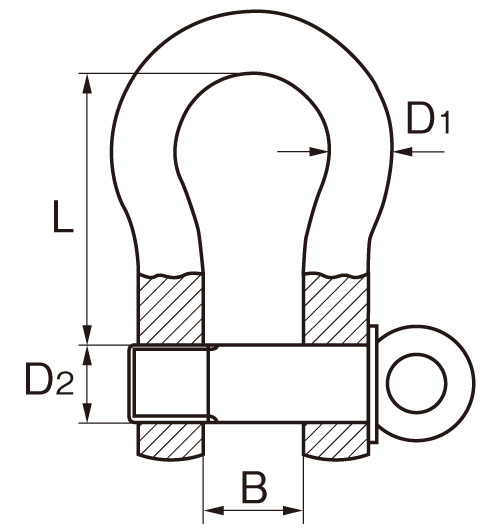

ESCO dimentional drawing
