Item# : EA638NN-9

Description : Heavy-Duty Bow Shackle

Spec

Material S45C
 Usage Load (t) 17
size D1(mm) 38
 size D2(mm) 42
size B(mm) 61
 size L(mm) 146
Weight 7.26kg
Additional explanation
Catalog Price (JPY)

¥ 27,900 （Excluding tax）／¥ 30,690（Tax including）

Quantity of stock

Latest stock：1

（2025/11/06 18:28 Currently）

Update
Catalog Page Page 1807
Relational Items
EA638NN-1 Heavy-Duty Bow Shackle
EA638NN-2 Heavy-Duty Bow Shackle
EA638NN-3 Heavy-Duty Bow Shackle
EA638NN-4 Heavy-Duty Bow Shackle
EA638NN-5 Heavy-Duty Bow Shackle
EA638NN-6 Heavy-Duty Bow Shackle
EA638NN-7 Heavy-Duty Bow Shackle
EA638NN-8 Heavy-Duty Bow Shackle
EA638NN-9 Heavy-Duty Bow Shackle

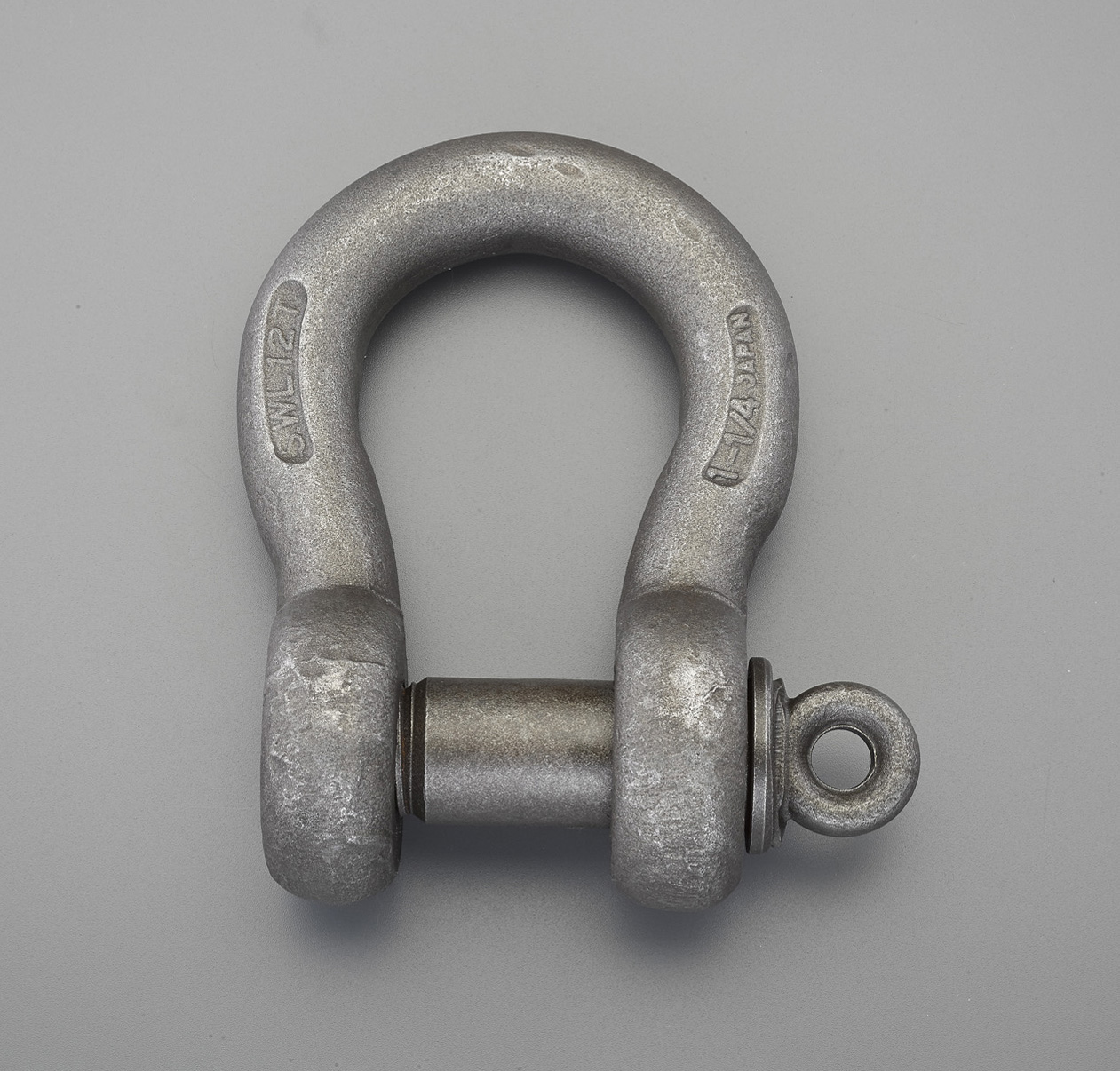

Web catalog image
Expanding
  • Prev
  • Next

Documents

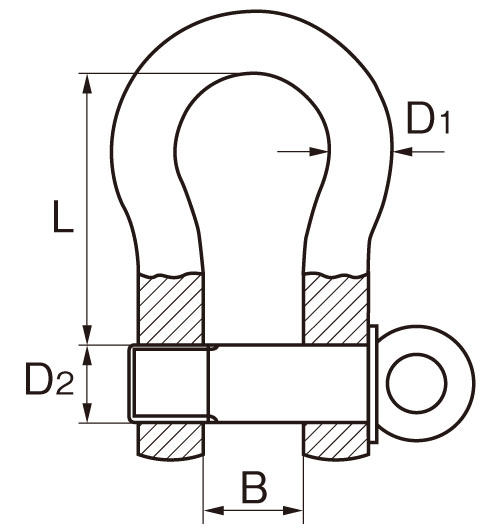

ESCO dimentional drawing
