Item# : EA948AE-21

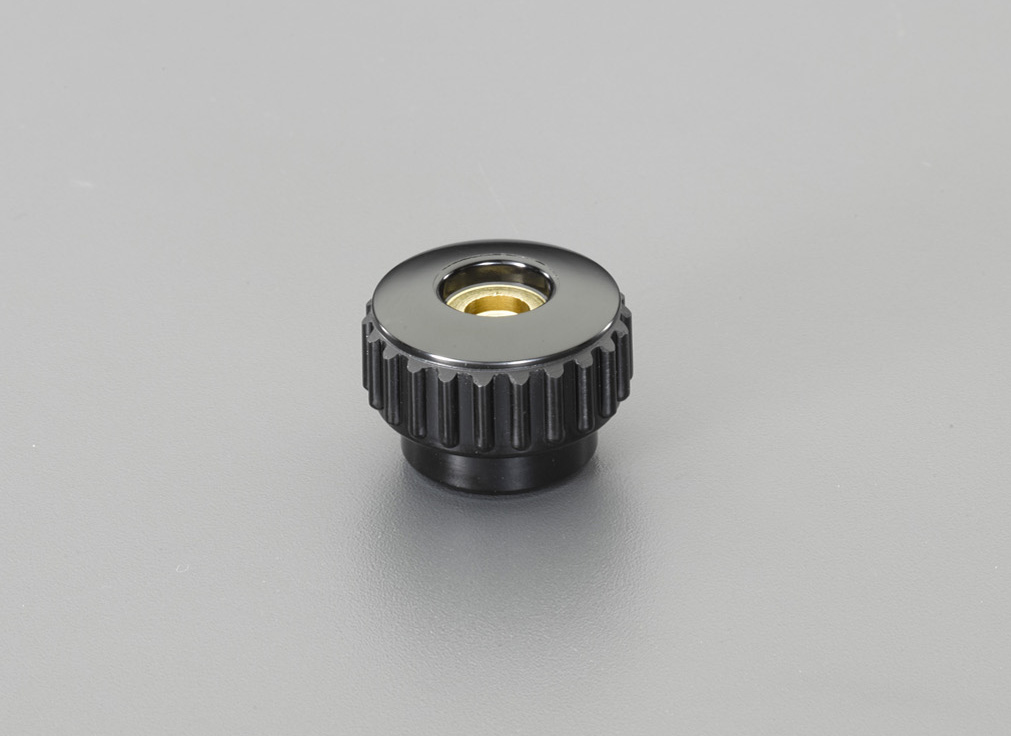

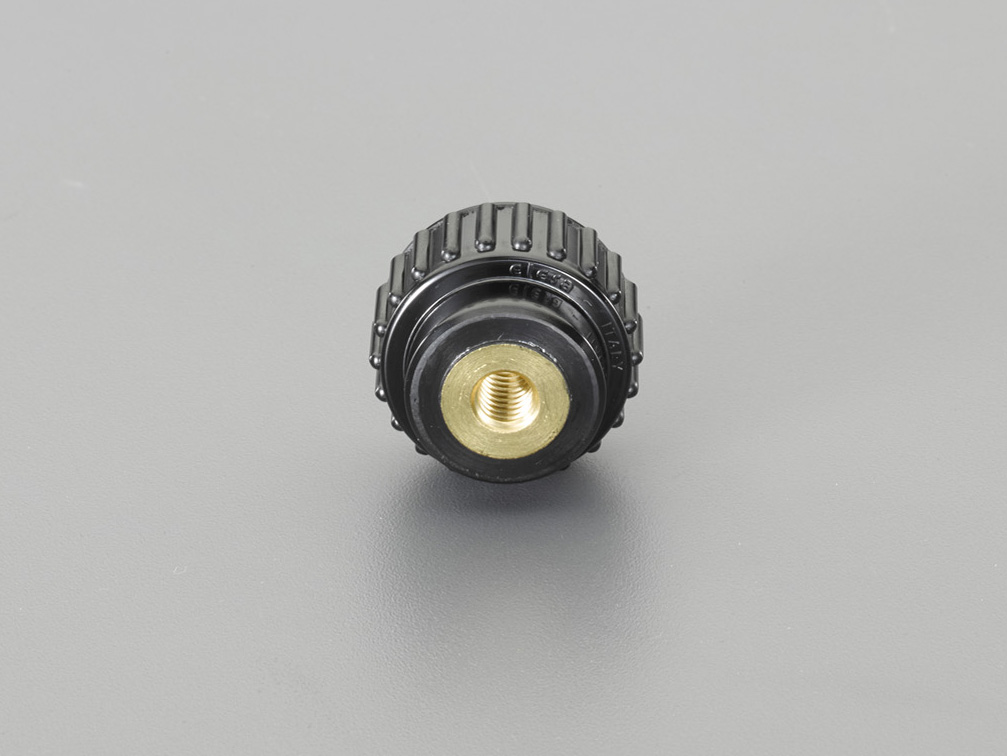

Description : Internal Thread Knurled Knob （Penetration ）

This product is no longer available. Please refer to replacement item below.

Spec

Penetration Hole Type
Material [Steel] Knob Male Thread ：Phenol resin 、
Screw ：Brass
Rohs-Compliant
size (mm) Screw ：M4×10
D：15
H：11
d：11
d1：6
Additional explanation
Catalog Price (JPY)

¥ 400 （Excluding tax）／¥ 440（Tax including）

Quantity of stock

Latest stock：0

（2025/05/10 11:02 Currently）

Update
Relational Items
EA948AE-21 Internal Thread Knurled Knob （Penetration ）
EA948AE-22 Internal Thread Knurled Knob （Penetration ）
EA948AE-23 Internal Thread Knurled Knob （Penetration ）
EA948AE-24 Internal Thread Knurled Knob （Penetration ）
EA948AE-25 Internal Thread Knurled Knob （Penetration ）
EA948AE-26 Internal Thread Knurled Knob （Penetration ）
EA948AE-27 Internal Thread Knurled Knob （Penetration ）
EA948AE-28 Internal Thread Knurled Knob （Penetration ）
