Item# : EA948AE-22

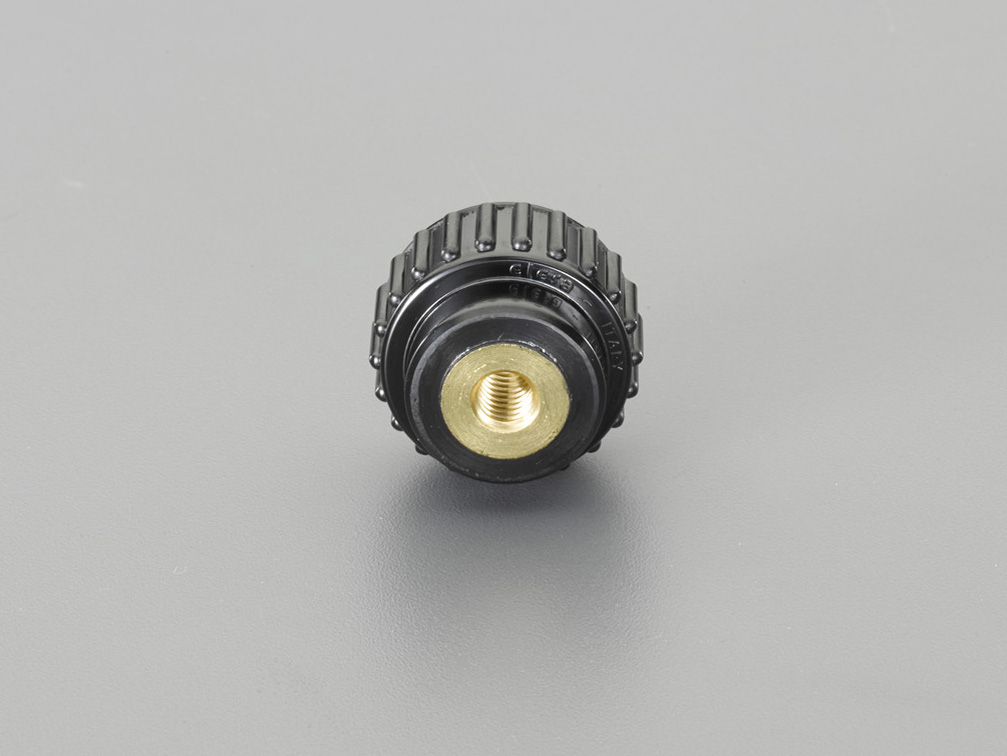

Description : Internal Thread Knurled Knob （Penetration ）

This product is no longer available. Please refer to replacement item below.

Spec

Penetration Hole Type
Material [Steel] Knob Male Thread ：Phenol resin 、
Screw ：Brass
Rohs-Compliant
size (mm) Screw ：M5×10
D：18
H：12
d：13
d1：7
Additional explanation
Catalog Price (JPY)

¥ 400 （Excluding tax）／¥ 440（Tax including）

Quantity of stock

Latest stock：0

（2024/05/16 18:22 Currently）

Update
Catalog Page Page 1268
Relational Items
EA948AE-21 Internal Thread Knurled Knob （Penetration ）
EA948AE-22 Internal Thread Knurled Knob （Penetration ）
EA948AE-23 Internal Thread Knurled Knob （Penetration ）
EA948AE-24 Internal Thread Knurled Knob （Penetration ）
EA948AE-25 Internal Thread Knurled Knob （Penetration ）
EA948AE-26 Internal Thread Knurled Knob （Penetration ）
EA948AE-27 Internal Thread Knurled Knob （Penetration ）
EA948AE-28 Internal Thread Knurled Knob （Penetration ）

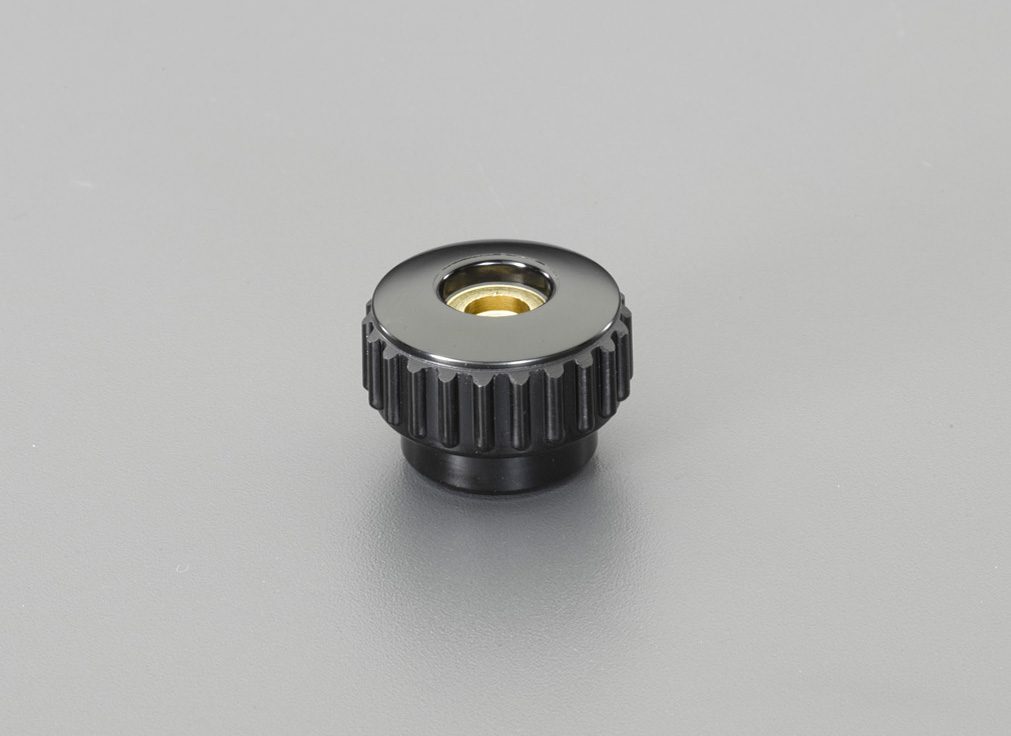

Web catalog image
